Swallowing Muscle Stimulation Equipment for Clinical Rehabilitation

Send Inquiry

Request To Call Back

Swallowing Muscle Stimulation Equipment for Clinical Rehabilitation

Price 55000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Swallowing Muscle Stimulation Equipment for Clinical Rehabilitation Specification

Condition
new and unused

Power Consumption
50 W Watt (W)

Noise Level
50 dB db

Technology
NMES Neuromuscular Electrical Stimulation

Warranty
1 year

Adhesive Type
Medical-Grade Self-Adhesive Electrode Pads

Dimension (L*W*H)
30, 25, 10 cm Centimeter (cm)

Set Contains
KM250 Main Unit, Self-Adhesive Therapy Electrodes, Electrode Lead Wires, Power Adapter/Cable, and User Manual

Attributes
Portable, Compact, Digital, Lightweight, User-Friendly, Adjustable Stimulation Intensity, NMES Technology, Multiple Therapy Modes, Low-Noise Operation, Surface Electrode Support, Professional Clinical Use, and Swallowing Rehabilitation Support

Voltage
220 240 V AC, 50 Hz Statampere (sA)

Suitable For Use
Hospitals, Physiotherapy Clinics, Neuro Rehabilitation Centers, Speech & Swallowing Therapy Centers, and Rehabilitation Clinics

Color
White & Blue

Real-Time Operation
Yes Real-Time Therapy Monitoring & NMES Stimulation Week

Magnification Power
Not Applicable mm

Equipment Type
NMES Dysphagia Rehabilitation & Swallowing Therapy Equipment

Application
Swallowing / Dysphagia Rehabilitation

Feature
Advanced NMES Technology, Adjustable Stimulation Intensity, Multiple Therapy Modes, Digital Display, Adjustable Treatment Timer, Self-Adhesive Electrode Support, Real-Time Therapy Monitoring, Compact Portable Design, Low-Noise Operation, and User-Friendly Controls

Use
Professional Rehabilitation

Portable
yes

Operation Mode
NMES Stimulation Mode / Continuous & Intermittent Stimulation Mode

Lighting Type
LED Backlit Digital Display

Accuracy
High Precision / Model Specific mg

Size
30, 25, 10 cm

Operating Type
Electric / Digital

Storage Instructions
Store in a cool, dry and well-ventilated place. Keep away from direct sunlight, moisture, excessive heat, dust and corrosive substances

Material
KM250 NMES Dysphagia Stimulator

Shape
Rectangular-Compact Ergonomic Design

Power
50 W Volt (v)

Function
NMES Stimulation, Dysphagia Rehabilitation, Swallowing Muscle Training, Neuromuscular Re-education, Swallowing Function Training, and Post-Stroke Swallowing Rehabilitation

Capacity
Single Patient Treatment per Session Kg

Wall Mounted
no

Recyclable
No

Recommended For
Muscles, Nerves, Shoulder, Joints, Cervical, Back

Treatment
Dysphagia Rehabilitation, Swallowing Function Training, Neuromuscular Electrical Stimulation (NMES), Swallowing Muscle Re-education, and Post-Stroke Swallowing Rehabilitation

Measuring Range
Not Applicable Rankine

Pressure Range
Not Applicable

Frequency Range
Adjustable Model Specific Hertz (HZ)

Usage
Dysphagia Therapy, Swallowing Rehabilitation, NMES Therapy, Post-Stroke Rehabilitation, and Neuromuscular Re-education

Age Group
Children, Adults, Women, Elders, Infants

Display
Touch Screen

Power Source
Electric

Weight
3 kg Kilograms (kg)

Swallowing Muscle Stimulation Equipment for Clinical Rehabilitation Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Delhi

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Supply Ability
1 Piece Per Day

Delivery Time
1 Week

Sample Available
Yes

Sample Policy
Free samples are available

Packaging Details
as per communication

Main Export Market(s)
Asia, North America, South America, Eastern Europe, Western Europe, Middle East, Australia, Central America, Africa

Main Domestic Market
All India

Certifications
as per communication customer

About Swallowing Muscle Stimulation Equipment for Clinical Rehabilitation

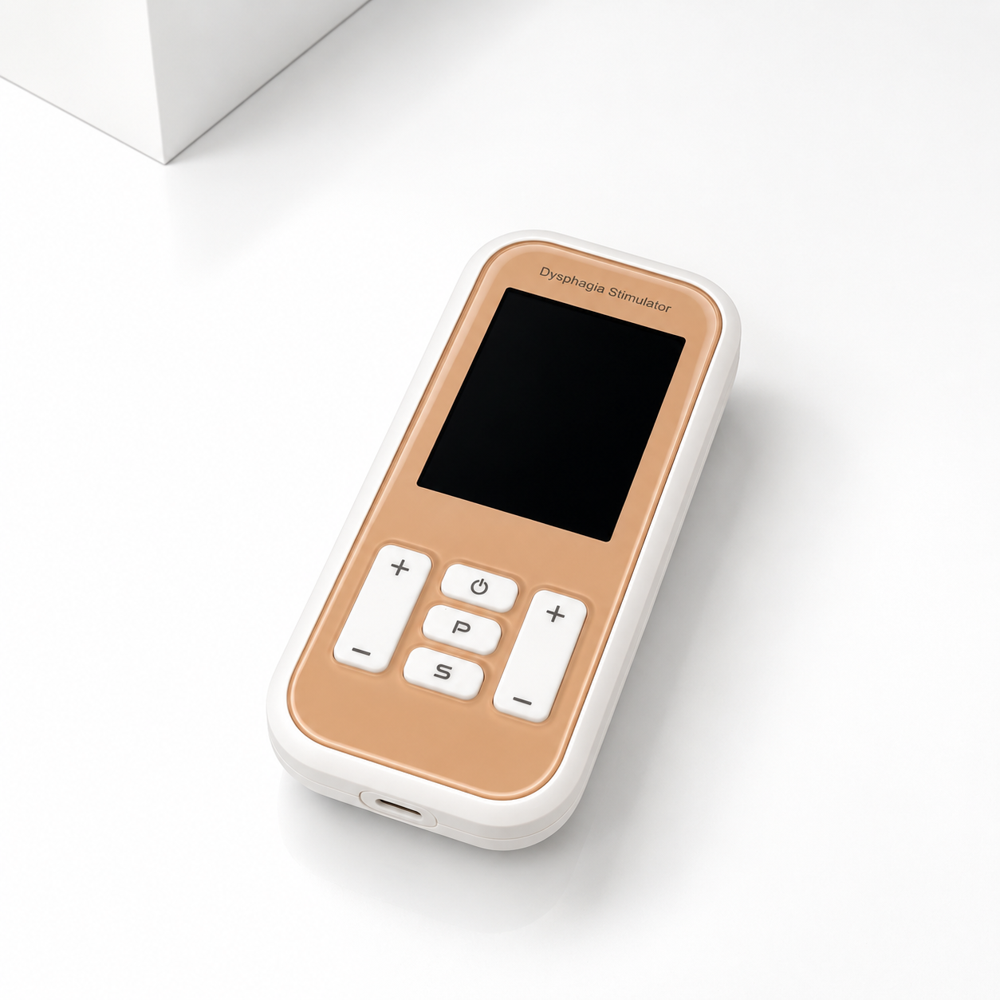

Biotronix Swallowing Muscle Stimulation Equipment for Clinical RehabilitationKM-250

The KM-250 Swallowing Muscle Stimulation Equipment is a dual-channel electrotherapy device designed to support swallowing rehabilitation and muscle re-education in patients experiencing dysphagia (swallowing difficulties). It delivers controlled electrical stimulation to targeted muscles involved in pharyngeal contraction as part of a professionally supervised clinical rehabilitation program. The device features Fixed STIM and Custom STIM modes, offering three preset programs and six customizable programs for flexible treatment settings. Healthcare professionals can adjust stimulation intensity, frequency, pulse duration, work time, rest time, and ramp settings according to the prescribed therapy protocol. Equipped with two independent stimulation channels, a digital display, user-friendly keypad controls, and dedicated swallowing electrode pads, the KM-250 offers convenient operation in clinical environments. Its compact design and built-in rechargeable lithium battery make it suitable for physiotherapy clinics, rehabilitation centers, and speech and swallowing therapy departments.

Key Features

Dual-Channel Stimulation: Two independent channels for targeted electrical stimulation.
Multiple Therapy Programs: Three preset Fixed STIM programs and six customizable STIM programs.
Adjustable Intensity: Separate intensity controls for both channels.
Flexible Treatment Settings: Adjustable frequency, pulse duration, work time, rest time, and ramp settings.
Digital Display: Convenient viewing of treatment parameters and stimulation intensity.
User-Friendly Controls: Keypad operation for program selection and parameter adjustment.

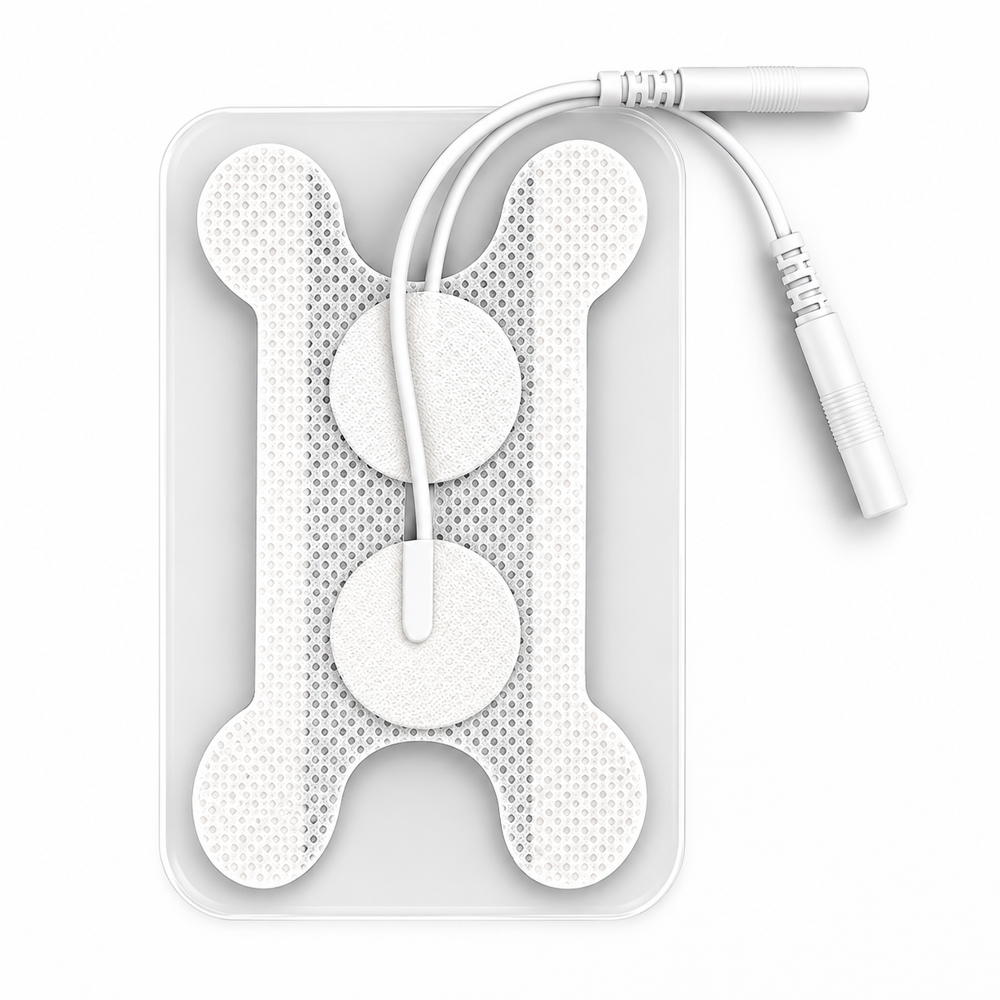

Dedicated Swallowing Electrode Pads: Designed for use with the KM-250.
Rechargeable Battery: Built-in 3.7V, 900mAh rechargeable lithium battery.
Compact and Lightweight Design: Convenient for professional clinical rehabilitation settings.

Applications

Swallowing rehabilitation for appropriately assessed patients with dysphagia.
Electrical stimulation of muscles involved in pharyngeal contraction.
Muscle re-education as part of swallowing therapy.
Clinical swallowing rehabilitation programs.
Use in physiotherapy clinics and rehabilitation centers.
Speech and swallowing therapy departments.

Benefits

Supports Muscle Re-Education: Provides electrical stimulation to targeted muscles involved in swallowing.
Flexible Treatment Options: Preset and customizable programs support different clinical therapy protocols.
Targeted Stimulation: Dual-channel operation allows stimulation at selected treatment sites.
Individualized Therapy Settings: Adjustable parameters help healthcare professionals tailor treatment to the prescribed rehabilitation plan.
Convenient Clinical Operation: Digital display and keypad controls simplify program selection and adjustment.
Portable Design: Compact construction and rechargeable power support convenient use in rehabilitation settings.
Professional Rehabilitation Support: Can be incorporated into a comprehensive swallowing therapy program following appropriate patient assessment.

Technical Specifications

Specification	Details
Product Name	Swallowing Muscle Stimulation Equipment
Model	KM-250
Device Type	Dual-Channel Electrotherapy System
Number of Channels	2
Fixed STIM Programs	3 preset programs
Custom STIM Programs	6 customizable programs
Waveform	Pulsed symmetric, biphasic, square wave
Maximum Output Voltage	40V at 500 (10%)
Maximum Output Current	80 mA at 500 (10%)
Pulse Duration	60300 s
Frequency Range	180 Hz
Timer Range	199 minutes
Battery	3.7V, 900mAh rechargeable lithium battery
Charging Specification	DC 5V, 0.5A
Dimensions	135 64 15 mm
Weight	Approximately 70 g, including battery
Display	Digital display screen
Safety Classification	BF type

Specifications are based on the supplied KM-250 user manual.

Swallowing Muscle Stimulation Equipment, KM-250 Dysphagia Device, Swallowing Muscle Stimulation Machine, Clinical Swallowing Rehabilitation Equipment, Dysphagia Treatment Device, Swallowing Therapy Equipment, Electrical Stimulation for Swallowing Rehabilitation, Dysphagia Electrotherapy Machine, Swallowing Muscle Training Device, Pharyngeal Muscle Stimulation Equipment, Dual-Channel Electrotherapy Device, Speech and Swallowing Therapy Equipment, Clinical Rehabilitation Equipment, Physiotherapy Equipment Supplier India, Dysphagia Rehabilitation Machine.
