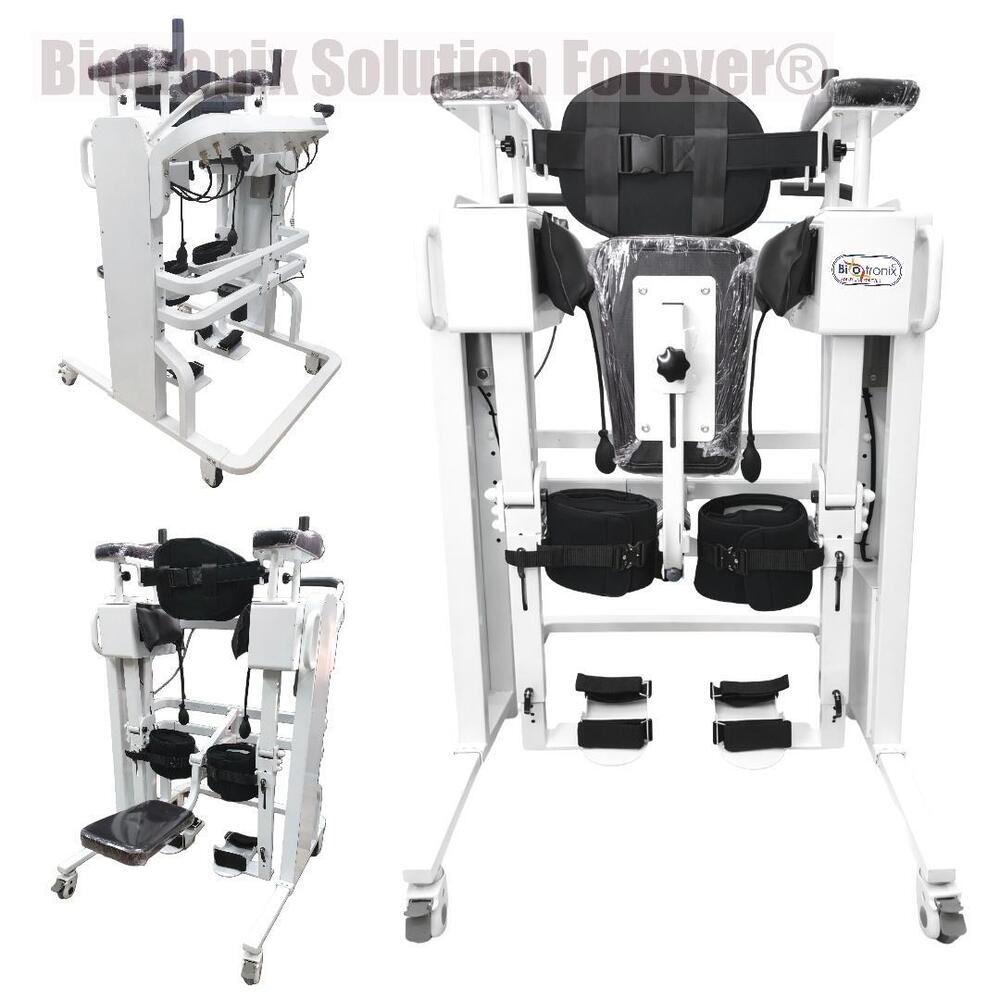

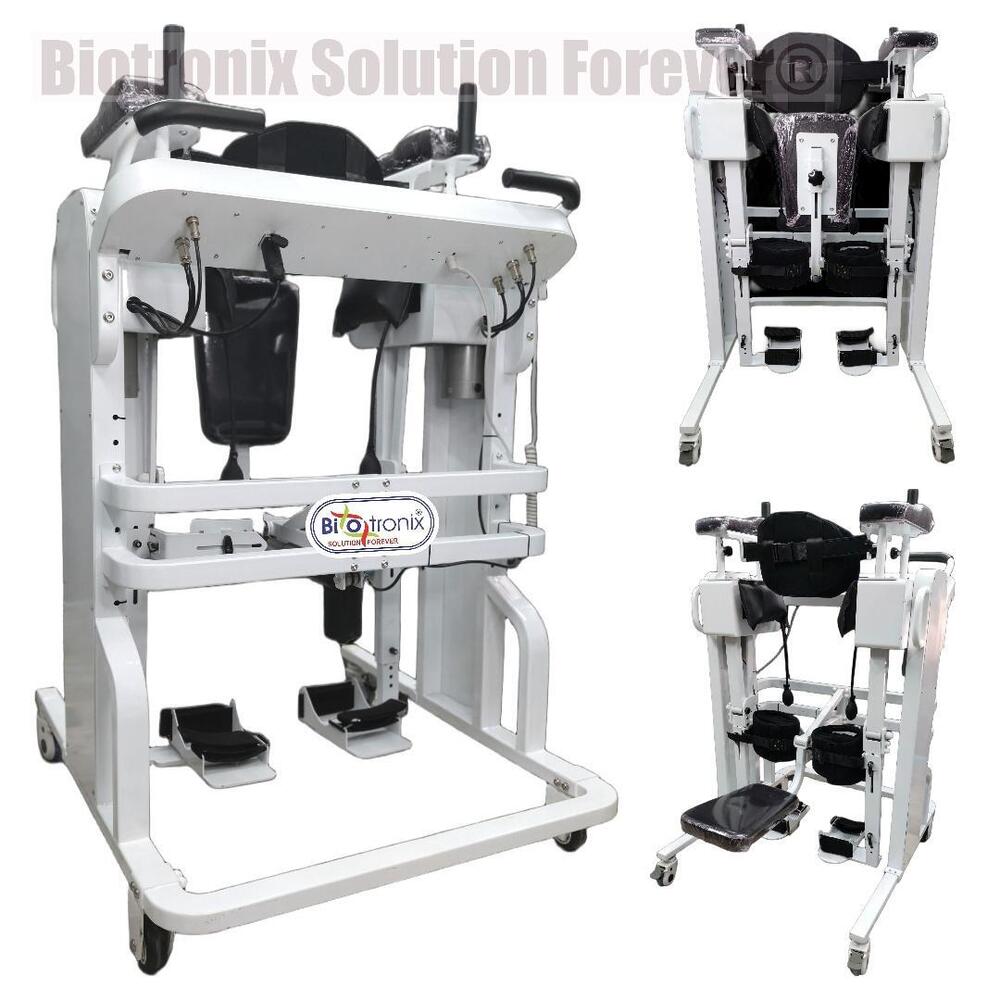

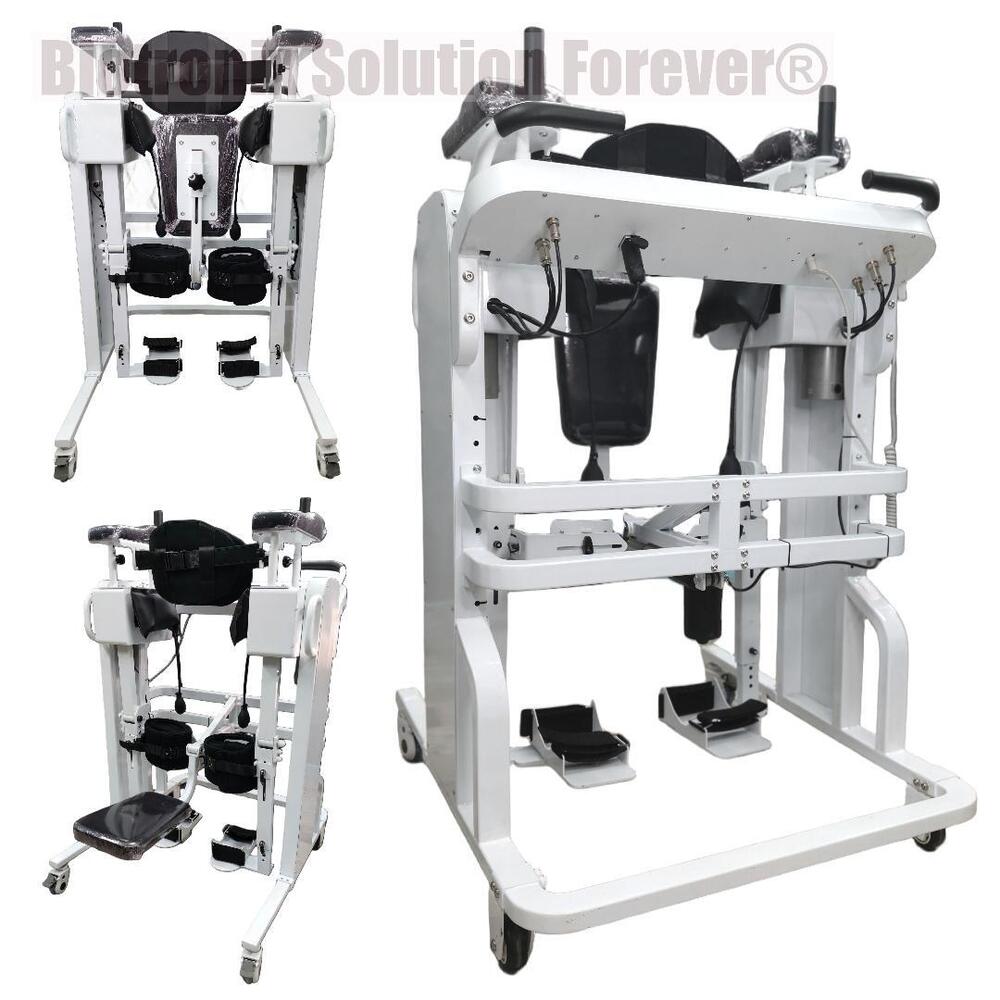

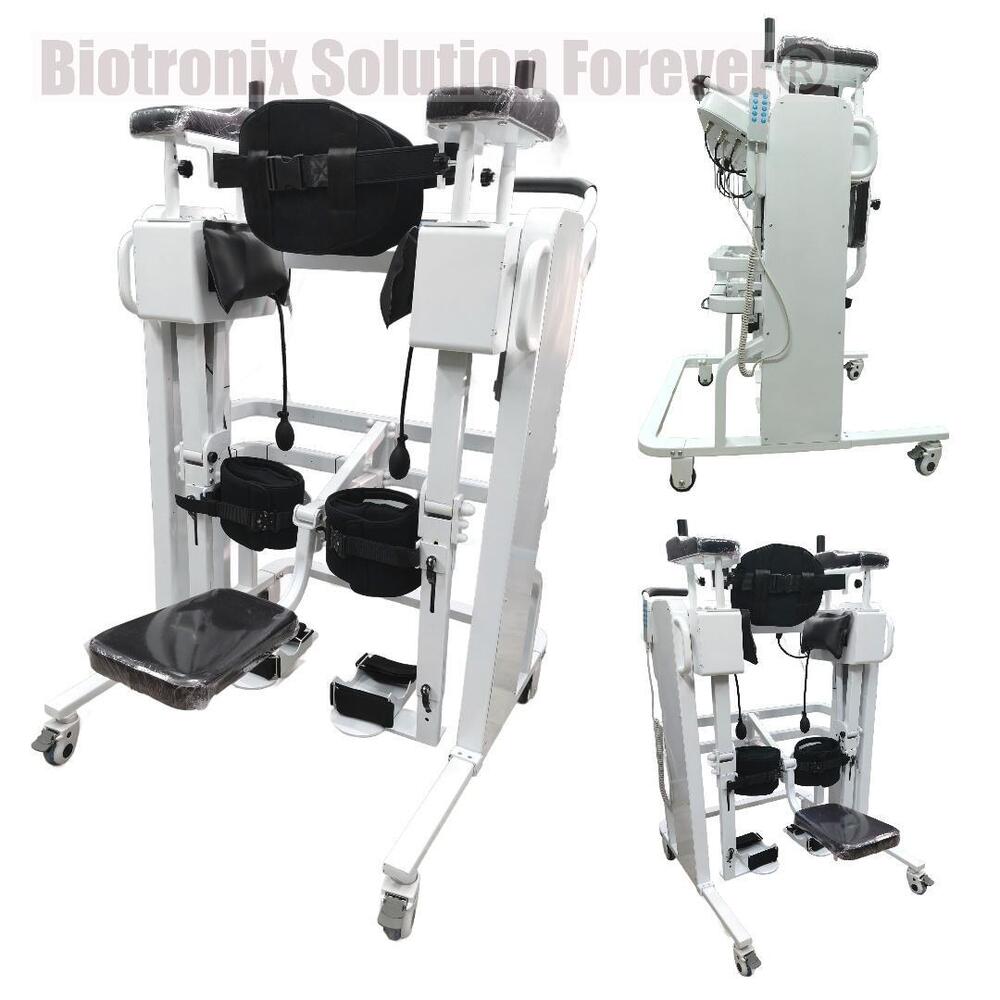

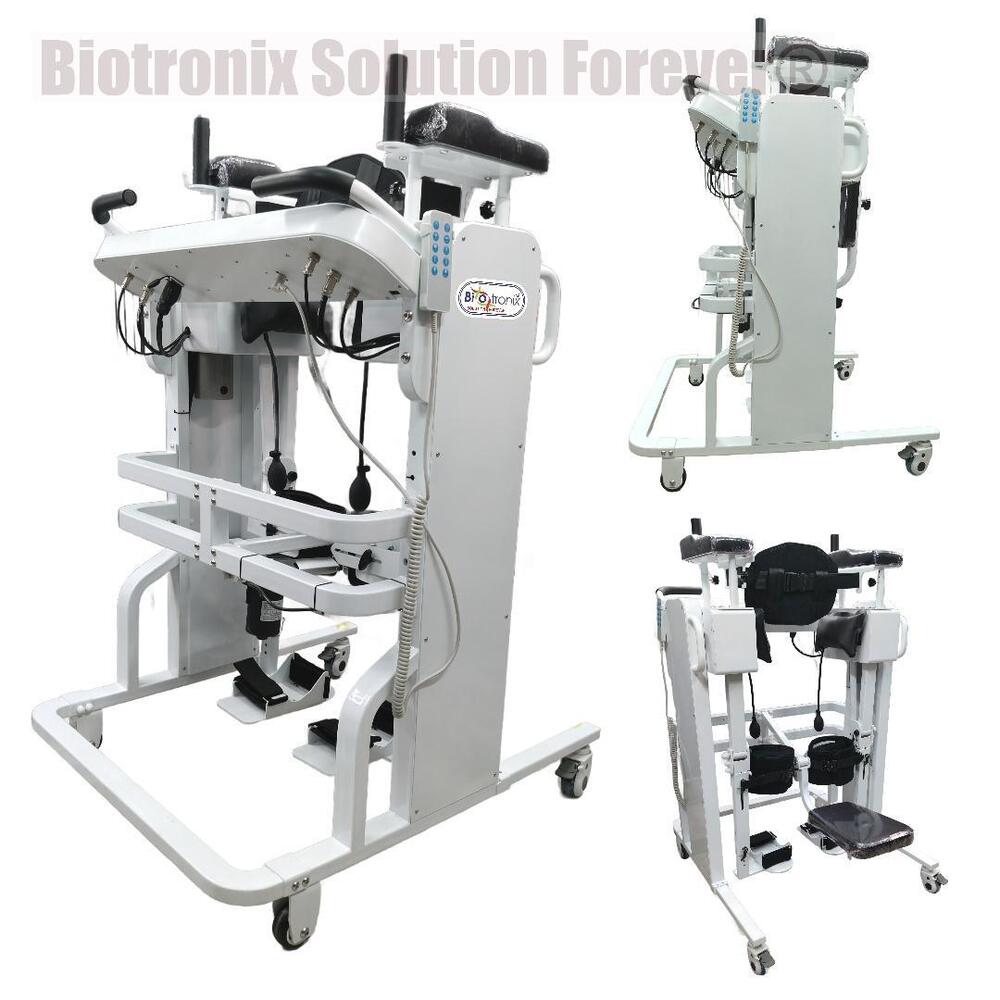

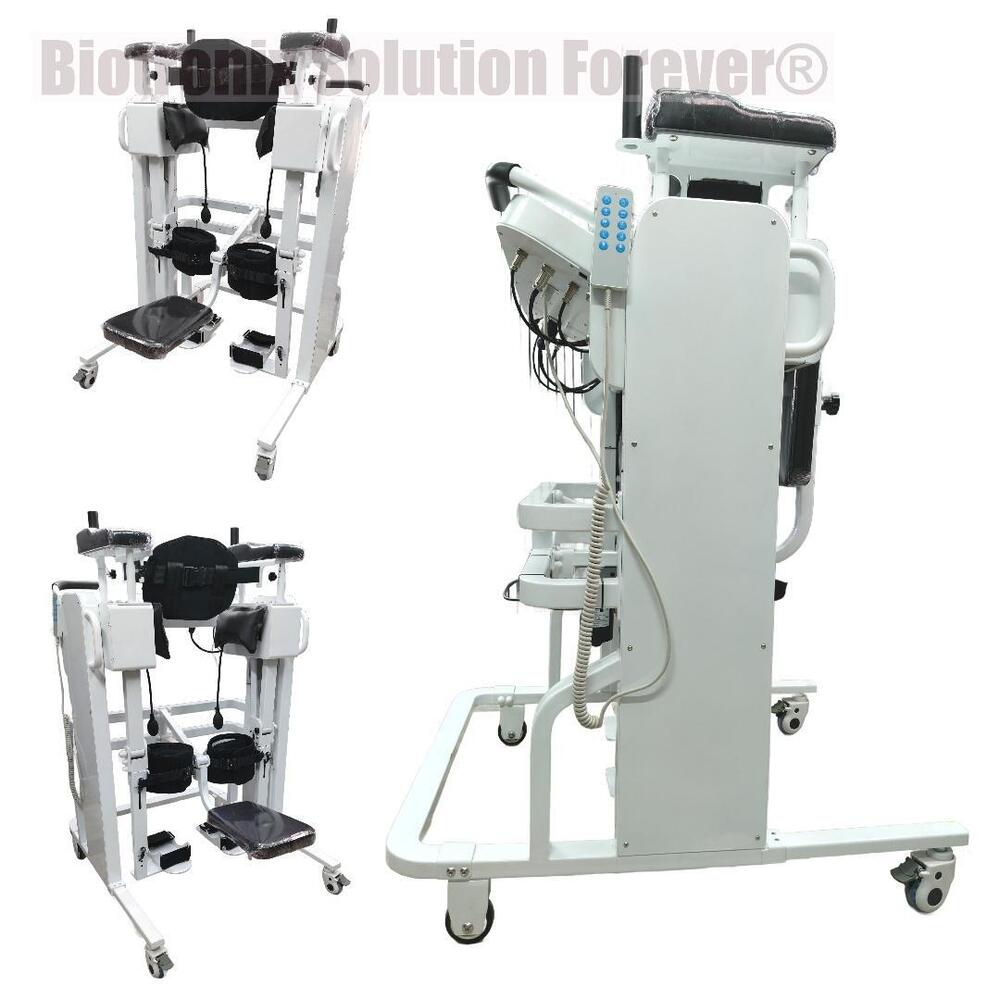

Smart Exoskeleton Rehabilitation for Hands Arms and Lower Limbs

About Smart Exoskeleton Rehabilitation for Hands Arms and Lower Limbs

Biotronix Smart Exoskeleton Rehabilitation for Hands, Arms, and Lower Limbs

Smart exoskeleton rehabilitation systems for hands, arms, and lower limbs are advancing modern physiotherapy by enabling precise, adaptive, and task-specific movement training across the full range of upper and lower extremity functions. These wearable robotic systems are designed to support weakened muscles, guide accurate joint motion, and encourage active participation as recovery progresses. By integrating intelligent sensors, adaptive control algorithms, and structured rehabilitation protocols, smart exoskeletons deliver safe, measurable, and patient-focused therapy for neurological and orthopedic rehabilitation.

Applications

• Stroke rehabilitation for upper and lower limb motor recovery

• Neurological rehabilitation for cerebral palsy, Parkinson’s disease, multiple sclerosis, and traumatic brain injury

• Spinal cord injury rehabilitation for assisted limb movement and mobility training

• Orthopedic rehabilitation for hands, arms, and legs after surgery or injury

• Hand and finger rehabilitation for fine motor skill training and dexterity improvement

• Comprehensive physiotherapy programs in hospitals and rehabilitation centers

Benefits

• Enables integrated rehabilitation of hands, arms, and lower limbs

• Enhances neuroplasticity through repetitive, task-specific movement training

• Improves muscle strength, coordination, range of motion, and motor control

• Ensures safe and controlled movement for patients with varying impairment levels

• Provides objective, data-driven insights into rehabilitation progress

• Reduces physical strain and workload on physiotherapists

• Increases patient engagement, confidence, and therapy adherence

• Supports faster, consistent, and functional recovery

Technical Specifications

• System type: Wearable smart rehabilitation exoskeleton for upper and lower limbs

• User weight range: Approximately 40–120 kg (lower limb configuration)

• User height range: Approximately 150–195 cm

• Assisted joints:

  • Hand: Individual finger joints, thumb opposition

  • Arm: Wrist, elbow, shoulder

  • Lower limb: Hip (2 degrees of freedom), Knee (1 degree of freedom), Ankle (1 degree of freedom per side)

• Actuation system: High-torque brushless DC motors and/or pneumatic actuators with integrated torque sensors

• Power supply: Rechargeable lithium-ion battery pack

• Battery backup: Approximately 3–6 hours of continuous operation

• Charging time: Approximately 2–3 hours

• Training modes: Passive, active-assist, resistive, adaptive

• Sensor system: IMU sensors, joint encoders, force and torque sensors

• Safety features: Emergency stop button, motion limits, torque and force limiters, mechanical braking system

• Connectivity: Bluetooth, Wi-Fi, USB data export

• Data output: Range of motion, repetition count, strength metrics, coordination analysis

• Compliance: Medical device certifications (model dependent)

• Operating temperature: 10°C to 40°C

• Storage temperature: –20°C to 60°C
