NMES Therapy Device for Swallowing Rehabilitation and Recovery

Send Inquiry

Request To Call Back

NMES Therapy Device for Swallowing Rehabilitation and Recovery

Price 55000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

NMES Therapy Device for Swallowing Rehabilitation and Recovery Specification

Size
30, 25, 10 cm

Operating Type
Electric / Digital

Shape
Rectangular-Compact Ergonomic Design

Dimension (L*W*H)
30, 25, 10 cm Centimeter (cm)

Use
Professional Rehabilitation

Operation Mode
NMES Stimulation Mode / Continuous & Intermittent Stimulation Mode

Suitable For Use
Hospitals, Physiotherapy Clinics, Neuro Rehabilitation Centers, Speech & Swallowing Therapy Centers, and Rehabilitation Clinics

Power Consumption
50 W Watt (W)

Magnification Power
Not Applicable mm

Power
50 W Volt (v)

Capacity
Single Patient Treatment per Session Kg

Voltage
220 240 V AC, 50 Hz Statampere (sA)

Real-Time Operation
Yes Real-Time Therapy Monitoring & NMES Stimulation Week

Noise Level
50 dB db

Color
White & Blue

Condition
new and unused

Portable
yes

Lighting Type
LED Backlit Digital Display

Storage Instructions
Store in a cool, dry and well-ventilated place. Keep away from direct sunlight, moisture, excessive heat, dust and corrosive substances

Warranty
1 year

Adhesive Type
Medical-Grade Self-Adhesive Electrode Pads

Application
Swallowing / Dysphagia Rehabilitation

Function
NMES Stimulation, Dysphagia Rehabilitation, Swallowing Muscle Training, Neuromuscular Re-education, Swallowing Function Training, and Post-Stroke Swallowing Rehabilitation

Attributes
Portable, Compact, Digital, Lightweight, User-Friendly, Adjustable Stimulation Intensity, NMES Technology, Multiple Therapy Modes, Low-Noise Operation, Surface Electrode Support, Professional Clinical Use, and Swallowing Rehabilitation Support

Accuracy
High Precision / Model Specific mg

Technology
NMES Neuromuscular Electrical Stimulation

Material
KM250 NMES Dysphagia Stimulator

Equipment Type
NMES Dysphagia Rehabilitation & Swallowing Therapy Equipment

Feature
Advanced NMES Technology, Adjustable Stimulation Intensity, Multiple Therapy Modes, Digital Display, Adjustable Treatment Timer, Self-Adhesive Electrode Support, Real-Time Therapy Monitoring, Compact Portable Design, Low-Noise Operation, and User-Friendly Controls

Set Contains
KM250 Main Unit, Self-Adhesive Therapy Electrodes, Electrode Lead Wires, Power Adapter/Cable, and User Manual

Wall Mounted
no

Recyclable
No

Recommended For
Shoulder, Joints, Cervical, Back, Muscles, Nerves

Treatment
Dysphagia Rehabilitation, Swallowing Function Training, Neuromuscular Electrical Stimulation (NMES), Swallowing Muscle Re-education, and Post-Stroke Swallowing Rehabilitation

Measuring Range
Not Applicable Rankine

Pressure Range
Not Applicable

Frequency Range
Adjustable Model Specific Hertz (HZ)

Usage
Dysphagia Therapy, Swallowing Rehabilitation, NMES Therapy, Post-Stroke Rehabilitation, and Neuromuscular Re-education

Age Group
Adults, Children, Elders, Infants, Women

Display
Touch Screen

Power Source
Electric

Weight
3 kg Kilograms (kg)

NMES Therapy Device for Swallowing Rehabilitation and Recovery Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Delhi

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Cheque, Days after Acceptance (DA), Cash in Advance (CID), Telegraphic Transfer (T/T), Paypal, Cash Advance (CA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Western Union, Letter of Credit (L/C)

Supply Ability
1 Piece Per Day

Delivery Time
1 Week

Sample Available
Yes

Sample Policy
Free samples are available

Packaging Details
as per communication

Main Export Market(s)
Asia, Australia, Central America, Middle East, Africa, North America, South America, Eastern Europe, Western Europe

Main Domestic Market
All India

Certifications
as per communication customer

About NMES Therapy Device for Swallowing Rehabilitation and Recovery

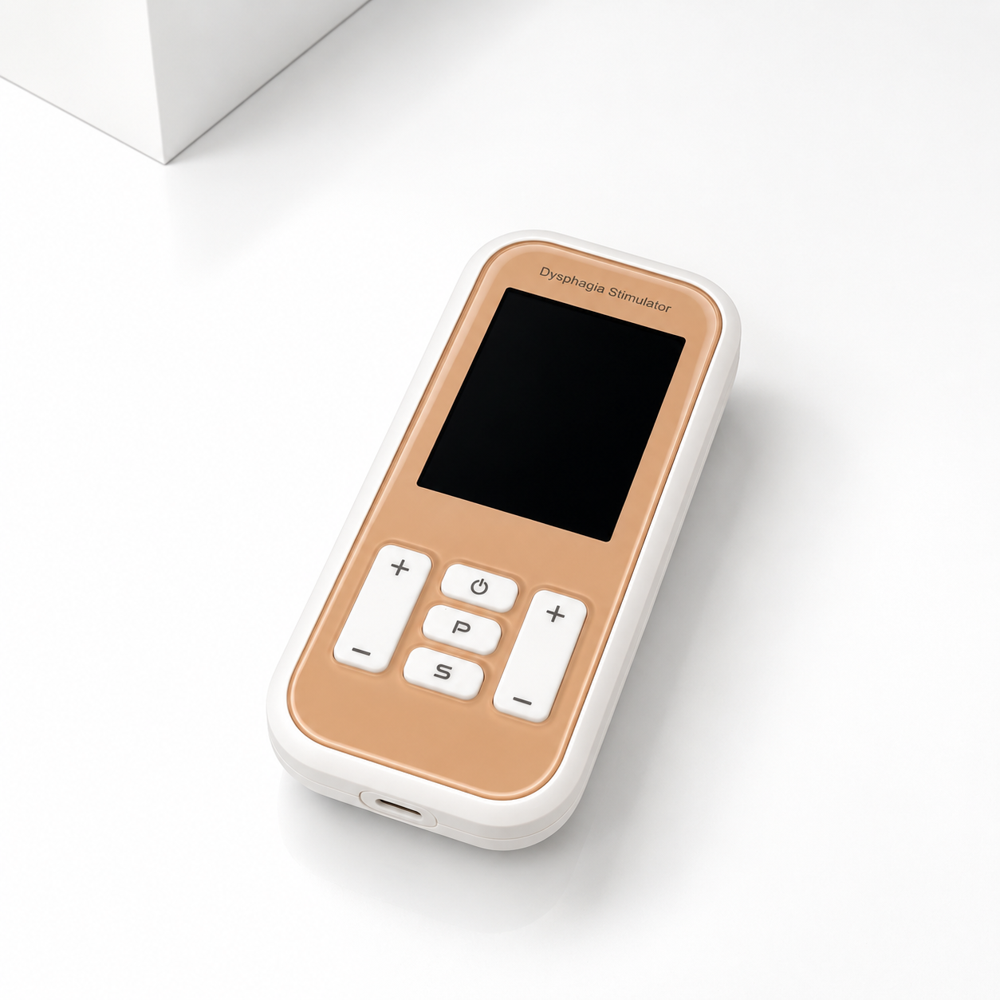

Biotronix NMES Therapy Device for Swallowing Rehabilitation and Recovery KM-250

The KM-250 NMES Therapy Device is a dual-channel electrical stimulation system designed to support swallowing rehabilitation and muscle re-education in patients experiencing dysphagia. It delivers controlled electrical stimulation to targeted muscles involved in pharyngeal contraction as part of a professionally supervised swallowing therapy program. The device offers two operating modes: Fixed STIM, featuring three preset programs, and Custom STIM, featuring six customizable programs. Healthcare professionals can adjust stimulation intensity, frequency, pulse duration, work time, rest time, and ramp settings according to the prescribed treatment protocol. Equipped with two independent stimulation channels, a digital display, user-friendly keypad controls, and dedicated swallowing electrode pads, the KM-250 offers flexible treatment settings for clinical use. Its compact construction and built-in rechargeable lithium battery make it suitable for physiotherapy clinics, rehabilitation centres, and speech and swallowing therapy departments.

Key Features

Dual-Channel Stimulation: Two independent channels for targeted electrical stimulation.

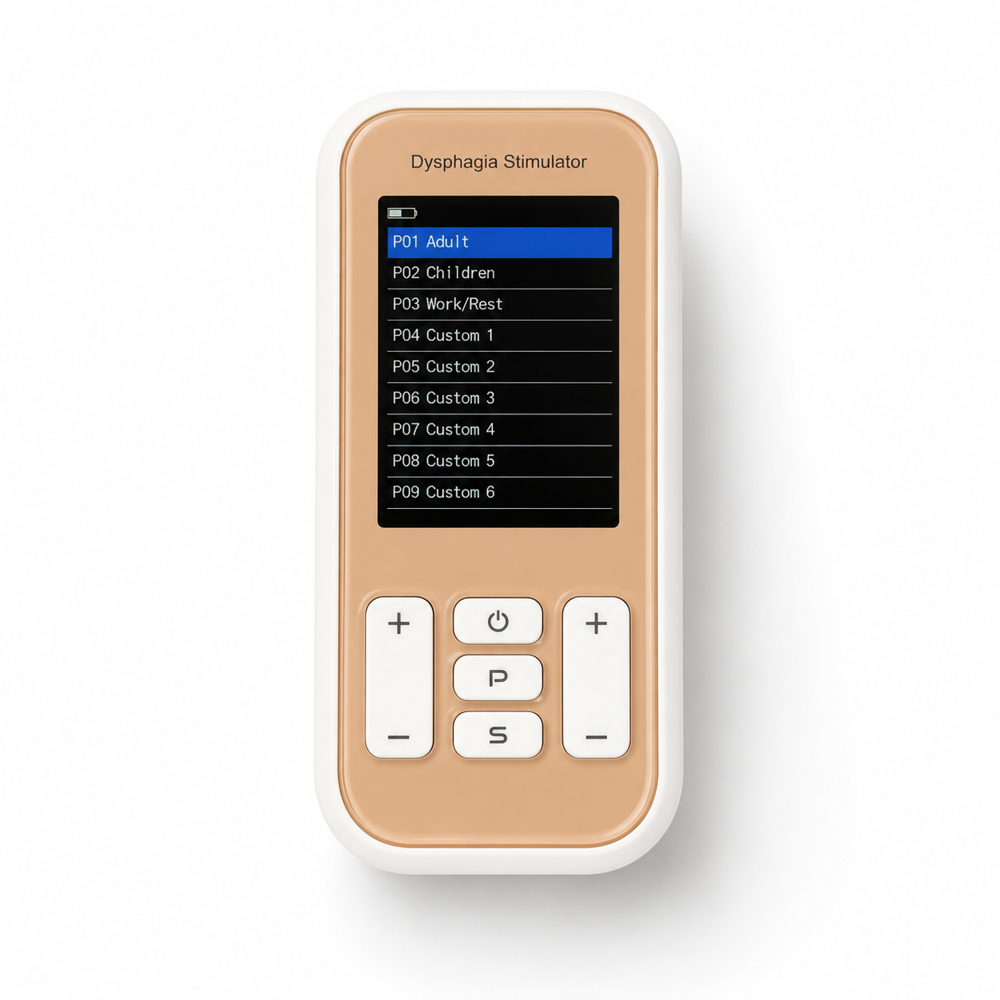

Multiple Therapy Programs: Three preset Fixed STIM programs and six customizable programs.
Adjustable Intensity: Separate intensity controls for both channels.
Flexible Treatment Settings: Adjustable frequency, pulse duration, work time, rest time, and ramp settings.
Digital Display: Convenient viewing of treatment parameters and stimulation intensity.
User-Friendly Controls: Keypad operation for selecting programs and adjusting settings.
Dedicated Swallowing Electrode Pads: Designed for use with the KM-250.
Rechargeable Battery: Built-in 3.7V, 900mAh rechargeable lithium battery.
Compact and Lightweight: Suitable for clinical rehabilitation environments.

Applications

Swallowing rehabilitation for appropriately assessed patients with dysphagia.
Electrical stimulation of muscles involved in pharyngeal contraction.
Muscle re-education as part of swallowing therapy.
Neuromuscular rehabilitation programs involving swallowing function.
Use in physiotherapy clinics and rehabilitation centers.
Speech and swallowing therapy departments.

Benefits

Supports Muscle Re-Education: Provides electrical stimulation to targeted muscles involved in swallowing.
Flexible Therapy Options: Preset and customizable programs support different treatment protocols.
Targeted Stimulation: Dual-channel operation allows stimulation at selected treatment sites.
Individualized Treatment Settings: Adjustable parameters help professionals tailor therapy to the prescribed rehabilitation plan.
Convenient Operation: Digital display and keypad controls simplify program selection and adjustments.
Portable Design: Compact construction and rechargeable power support convenient clinical use.
Rehabilitation Support: Can be incorporated into a comprehensive swallowing therapy program under qualified healthcare supervision.

Technical Specifications

Specification	Details
Product Name	NMES Therapy Device for Swallowing Rehabilitation
Model	KM-250
Device Type	Dual-Channel Electrical Stimulation System
Number of Channels	2
Fixed STIM Programs	3 preset programs
Custom STIM Programs	6 customizable programs
Waveform	Pulsed symmetric, biphasic, square wave
Maximum Output Voltage	40V at 500 (10%)
Maximum Output Current	80 mA at 500 (10%)
Pulse Duration	60300 s
Frequency Range	180 Hz
Timer Range	199 minutes
Battery	3.7V, 900mAh rechargeable lithium battery
Charging Specification	DC 5V, 0.5A
Dimensions	135 64 15 mm
Weight	Approximately 70 g, including battery
Display	Digital display screen
Safety Classification	BF type

Specifications are based on the supplied KM-250 user manual.

NMES Therapy Device for Swallowing Rehabilitation, KM-250 NMES Device, NMES for Dysphagia, Swallowing Rehabilitation Equipment, Dysphagia Treatment Machine, Neuromuscular Electrical Stimulation Device, Swallowing Muscle Stimulation Equipment, Swallowing Therapy Machine, Dysphagia Rehabilitation Device, Electrical Stimulation for Swallowing Recovery, Pharyngeal Muscle Stimulation Device, Dual-Channel Electrotherapy Equipment, Speech and Swallowing Therapy Equipment, Physiotherapy Rehabilitation Equipment, and NMES Device for Dysphagia Treatment in India.
