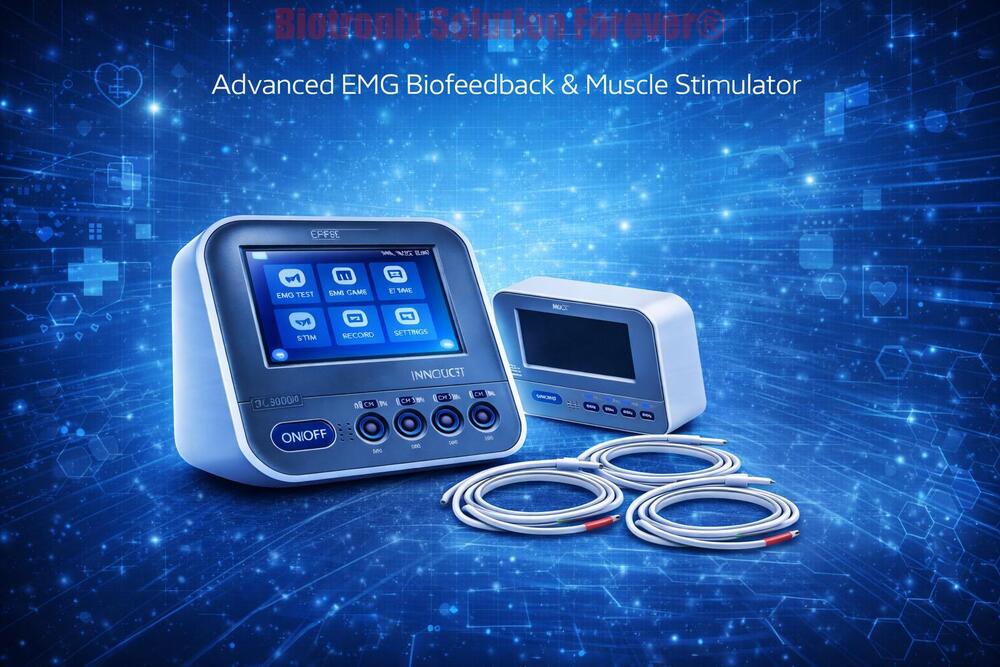

Konmed KM-560 Rehab Biofeedback Equipment with ETS Mode

Price 20000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

About Konmed KM-560 Rehab Biofeedback Equipment with ETS Mode

Biotronix Konmed KM-560 Rehab Biofeedback Equipment with ETS Mode

The Konmed KM-560 Rehab Biofeedback Equipment is a clinically advanced rehabilitation solution designed to combine real-time EMG biofeedback with intelligent ETS (EMG Triggered Stimulation) for highly effective and patient-driven therapy. This advanced system allows therapists to monitor muscle activity and automatically trigger stimulation when a preset EMG threshold is reached, ensuring active participation and optimized recovery outcomes.

This is a high-performance device for physiotherapy clinics, hospitals, and rehabilitation centers, offering precise and data-driven therapy solutions. With its powerful 4-channel EMG capability and integrated therapy modes such as NMES, FES, and TENS, the KM-560 provides a complete platform for neuromuscular re-education, muscle strengthening, and functional rehabilitation.

Key Features

4 Channel EMG Biofeedback System with ETS Mode
EMG-triggered stimulation for active rehabilitation
Real-Time EMG Monitoring with waveform display
Multi Therapy Modes: EMG, ETS, NMES, FES, TENS
7-inch TFT LCD Touchscreen with intuitive interface
Interactive Biofeedback Training Programs
Microprocessor-controlled system for stable and precise performance
Pre-set + Custom Therapy Programs
Patient Data Storage & Progress Tracking
Compact, Portable, and Clinical-Grade Design

Applications

Stroke & Paralysis Rehabilitation
Muscle Re-Education & Strength Training
Pelvic Floor Therapy (Urinary Incontinence)
Dysphagia (Swallowing Therapy)
Post-Surgical Rehabilitation
Orthopedic Physiotherapy
Sports Injury Recovery

Benefits

ETS mode ensures active patient involvement
Improves neuromuscular coordination and muscle control
Provides accurate real-time muscle feedback
Accelerates recovery with targeted stimulation
Supports customized and progressive rehabilitation plans
Suitable for clinics, hospitals, and rehabilitation centers

Technical Specifications

Model: KM-560
Channels: 4 Channel EMG Biofeedback + 4 Channel Stimulation Output
Therapy Modes: EMG Biofeedback, ETS (EMG Triggered Stimulation), NMES, FES, TENS
Display: 7-inch TFT LCD Touchscreen (High Resolution)
EMG Measuring Range: 0 â€“ 1000 ÂµV
EMG Sensitivity: â‰¤ 1 ÂµV
ETS Function: EMG threshold-based automatic stimulation control
Stimulation Frequency: 1 â€“ 120 Hz
Pulse Width: 50 â€“ 450 Âµs
Output Intensity: 0 â€“ 100 mA Adjustable
Programs: 20+ preset programs + Custom Modes
EMG Functions: Quick Test, Standard EMG Analysis, Biofeedback Training
Data Storage: Patient Records & Therapy Progress Tracking
Control System: Microprocessor-Based Touch Operation
Power Supply: AC 100â€“240V, 50/60Hz
Battery: Rechargeable Lithium Battery (Optional Backup)
Safety Features: Auto Shut-Off, Overload Protection, Patient Isolation Safety
Accessories: EMG Sensors, Surface Electrodes, Optional Vaginal/Rectal Probes
Weight: Approx. 8â€“10 Kg
Portability: Portable Clinical Model
Usage: Clinics, Hospitals, Rehabilitation Centers
Warranty: 1 Year
