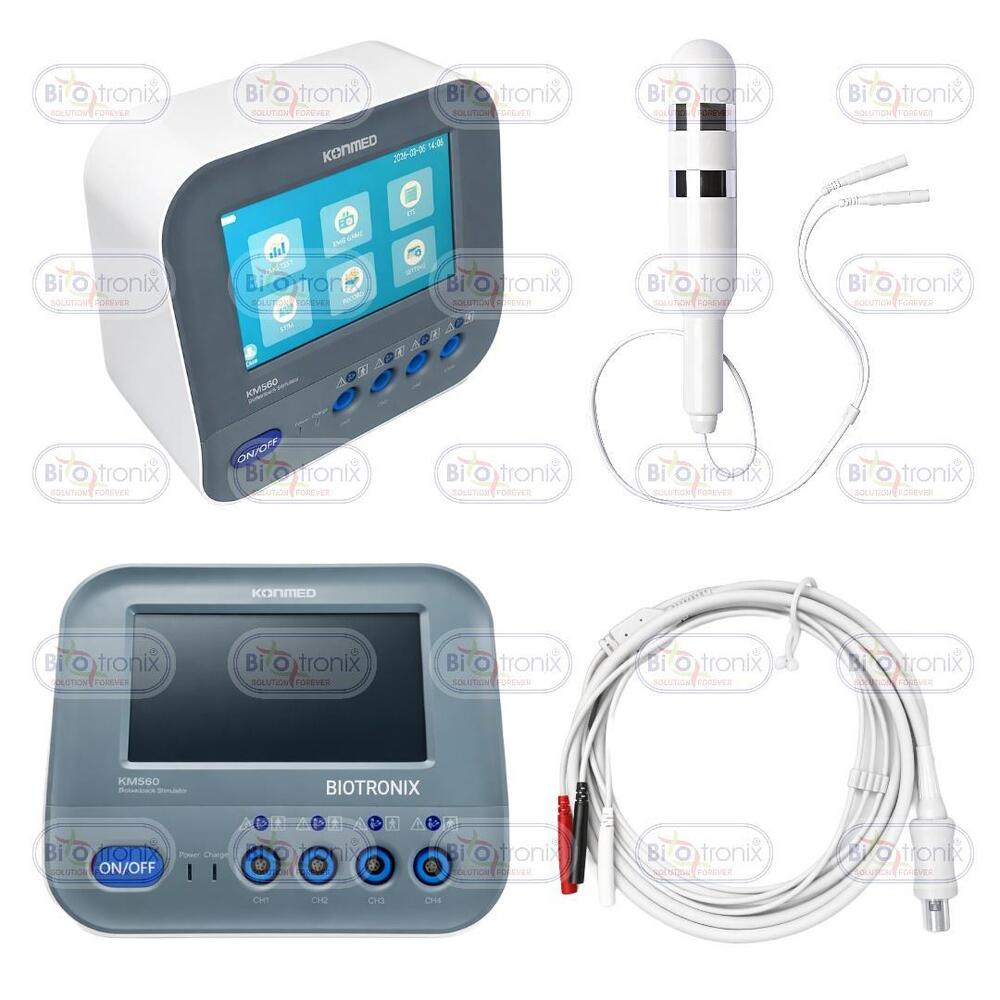

Konmed KM-560 Professional Biofeedback Device
Konmed KM-560 Professional Biofeedback Device
Konmed KM-560 Professional Biofeedback Device
Konmed KM-560 Professional Biofeedback Device
Konmed KM-560 Professional Biofeedback Device
Konmed KM-560 Professional Biofeedback Device
Konmed KM-560 Professional Biofeedback Device
Konmed KM-560 Professional Biofeedback Device
Konmed KM-560 Professional Biofeedback Device
Konmed KM-560 Professional Biofeedback Device
Konmed KM-560 Professional Biofeedback Device
Konmed KM-560 Professional Biofeedback Device

Konmed KM-560 Professional Biofeedback Device

Price 200000.0 INR/ Piece

MOQ : 1 Piece

Konmed KM-560 Professional Biofeedback Device Specification

  • Set Contains
  • Vaginal / Rectal Probe (for Pelvic Floor Therapy-optional)
  • Portable
  • yes
  • Condition
  • Visual touch screen interface for easy navigation
  • Accuracy
  • High precision EMG signal detection with reliable and stable output mg
  • Use
  • Clinical-grade design for hospital and rehab center use
  • Lighting Type
  • EMG Triggered Stimulation Machine
  • Application
  • Stroke Rehabilitation (CVA Recovery)
  • Voltage
  • AC 100V-240V, 50/60 Hz Statampere (sA)
  • Operating Type
  • Automatic / Microprocessor Controlled (Digital Touchscreen Operated)
  • Dimension (L*W*H)
  • 15, 20, 25 Inch (in)
  • Wall Mounted
  • Konmed KM-560 Biofeedback Therapy Machine
  • Function
  • Standard EMG Test (muscle activity assessment) Quick EMG Assessment (fast screening mode) EMG Biofeedback Training & Interactive Gaming
  • Capacity
  • ETS (EMG-Triggered Stimulation-auto-stimulation on threshold) Kg
  • Shape
  • square
  • Adhesive Type
  • ETS Mode Physiotherapy System
  • Color
  • more
  • Operation Mode
  • EMG Biofeedback, ETS, NMES, FES
  • Magnification Power
  • Not Applicable mm
  • Storage Instructions
  • Patient data storage & history tracking
  • Suitable For Use
  • physiotherapy
  • Technology
  • Combination of EMG Biofeedback + Neuromuscular Electrical Stimulation
  • Attributes
  • EMG Muscle Activation Therapy Device
  • Size
  • 25
  • Power Consumption
  • Power Supply: AC Power / Rechargeable Lithium Battery support Watt (W)
  • Warranty
  • 1 year
  • Feature
  • 7-inch TFT LCD Touch Screen with real-time waveform display
  • Noise Level
  • 4 Channel EMG Rehabilitation Equipment db
  • Power
  • AC Power / Rechargeable support Volt (v)
  • Equipment Type
  • KM-560
  • Material
  • EMG Biofeedback Training & Interactive Gaming
  • Real-Time Operation
  • Yes Week
  • Recyclable
  • No
  • Recommended For
  • Joints, Back, Nerves, Shoulder, Cervical, Muscles
  • Treatment
  • Treatment record recall system
  • Measuring Range
  • 0-1000- V (microvolts) Rankine
  • Pressure Range
  • Not Applicable
  • Frequency Range
  • 1-120 Hz Hertz (HZ)
  • Usage
  • Multi-channel output for simultaneous therapy
  • Age Group
  • Children, Adults, Women, Elders, Infants
  • Display
  • Touch Screen
  • Power Source
  • Electric
  • Weight
  • 10 Kilograms (kg)


Konmed KM-560 Professional Biofeedback Device Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • FOB Port
  • New Delhi
  • Payment Terms
  • Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)
  • Supply Ability
  • 1 Piece Per Day
  • Delivery Time
  • 1 Week
  • Sample Available
  • Yes
  • Sample Policy
  • Free samples available with shipping and taxes paid by the buyer
  • Packaging Details
  • as per communication
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • as per communication customer


About Konmed KM-560 Professional Biofeedback Device

Biotronix Konmed KM-560 Professional Biofeedback Device for Clinics

The Konmed KM-560 Professional Biofeedback Device is a high-performance rehabilitation solution engineered for professional clinical environments. This advanced device combines real-time EMG biofeedback with multi-mode electrotherapy, enabling therapists to monitor muscle activity precisely while delivering targeted stimulation for effective treatment outcomes.

This reliable and intelligent system is for physiotherapy clinics, hospitals, and rehabilitation centres, helping professionals implement accurate, data-driven therapy protocols. With its 4-channel EMG capability and integrated therapy modes including NMES, FES, TENS, and ETS, the KM-560 offers a complete platform for neuromuscular re-education, muscle strengthening, and functional recovery.

Key Features

  • 4-Channel EMG Biofeedback System for clinical applications
  • Real-Time EMG Monitoring with waveform display
  • Multi Therapy Modes: EMG, ETS, NMES, FES, TENS
  • EMG Triggered Stimulation (ETS) for active rehabilitation
  • 7-inch TFT LCD Touchscreen with intuitive interface
  • Interactive Biofeedback Training Programs
  • Microprocessor-controlled system for stable and accurate performance
  • Pre-set + Custom Therapy Programs
  • Patient Data Storage & Progress Tracking
  • Durable, Portable, and Clinical-Grade Design

Applications

  • Physiotherapy Clinics & Rehabilitation Centres
  • Neurological Rehabilitation (Stroke, Paralysis)
  • Muscle Re-Education & Strength Training
  • Pelvic Floor Therapy (Urinary Incontinence)
  • Dysphagia (Swallowing Therapy)
  • Post-Surgical Rehabilitation
  • Orthopaedic & Sports Injury Recovery

Benefits

  • Provides precise EMG-based muscle assessment
  • Enhances treatment outcomes with integrated electrotherapy
  • Improves neuromuscular coordination and muscle control
  • Supportspersonalised and progressive therapy programs
  • Increases patient engagement through real-time feedback
  • Ideal for professional clinical and high-volume setups

Technical Specifications

  • Model: KM-560
  • Channels: 4 Channel EMG Biofeedback + 4 Channel Stimulation Output
  • Therapy Modes: EMG Biofeedback, ETS (EMG Triggered Stimulation), NMES, FES, TENS
  • Display: 7-inch TFT LCD Touchscreen (High Resolution)
  • EMG Measuring Range: 0 to 1000 V
  • EMG Sensitivity: <1 V
  • Stimulation Frequency: 1-120 Hz
  • Pulse Width: 50-450 s
  • Output Intensity: 0-100 mA Adjustable
  • Programs: 20+ Pre-set Programs + Custom Therapy Modes
  • EMG Functions: Quick Test, Standard EMG Analysis, Biofeedback Training
  • Trigger Mode: EMG Triggered (ETS) + Manual Mode
  • Data Storage: Patient Records & Therapy Progress Tracking
  • Control System: Microprocessor-Based Touch Operation
  • Power Supply: AC 100-240V, 50/60Hz
  • Battery: Rechargeable Lithium Battery (Optional Backup)
  • Safety Features: Auto Shut-Off, Overload Protection, Patient Isolation Safety
  • Accessories: EMG Sensors, Surface Electrodes, Optional Vaginal/Rectal Probes
  • Weight: Approx. 8-10 Kg
  • Portability: Portable Clinical Model
  • Usage: Clinics, Hospitals, Rehabilitation Centres
  • Warranty: 1 Year


Konmed KM-560 professional biofeedback device for clinics, EMG physiotherapy machine India, biofeedback stimulator with NMES, FES, TENS, and ETS, rehabilitation equipment for muscle re-education, stroke rehab EMG system, pelvic floor therapy biofeedback device, electrotherapy physiotherapy combo unit, neuromuscular rehabilitation equipment, advanced physiotherapy equipment India
