Konmed KM-560 Pelvic Rehab Biofeedback Machine with EMG
Konmed KM-560 Pelvic Rehab Biofeedback Machine with EMG
Konmed KM-560 Pelvic Rehab Biofeedback Machine with EMG
Konmed KM-560 Pelvic Rehab Biofeedback Machine with EMG
Konmed KM-560 Pelvic Rehab Biofeedback Machine with EMG
Konmed KM-560 Pelvic Rehab Biofeedback Machine with EMG
Konmed KM-560 Pelvic Rehab Biofeedback Machine with EMG
Konmed KM-560 Pelvic Rehab Biofeedback Machine with EMG
Konmed KM-560 Pelvic Rehab Biofeedback Machine with EMG
Konmed KM-560 Pelvic Rehab Biofeedback Machine with EMG
Konmed KM-560 Pelvic Rehab Biofeedback Machine with EMG
Konmed KM-560 Pelvic Rehab Biofeedback Machine with EMG

Konmed KM-560 Pelvic Rehab Biofeedback Machine with EMG

Price 200000.0 INR/ Piece

MOQ : 1 Piece

Konmed KM-560 Pelvic Rehab Biofeedback Machine with EMG Specification

  • Storage Instructions
  • Patient data storage & history tracking
  • Size
  • 25
  • Power
  • AC Power / Rechargeable support Volt (v)
  • Power Consumption
  • Power Supply: AC Power / Rechargeable Lithium Battery support Watt (W)
  • Warranty
  • 1 year
  • Noise Level
  • Digital EMG Therapy Machine db
  • Operation Mode
  • EMG Biofeedback, ETS, NMES, FES
  • Dimension (L*W*H)
  • 15, 20, 25 Inch (in)
  • Adhesive Type
  • Professional Biofeedback Equipment
  • Suitable For Use
  • physiotherapy
  • Color
  • more
  • Wall Mounted
  • Portable EMG Biofeedback Device
  • Technology
  • Combination of EMG Biofeedback + Neuromuscular Electrical Stimulation
  • Function
  • Standard EMG Test (muscle activity assessment) Quick EMG Assessment (fast screening mode) EMG Biofeedback Training & Interactive Gaming
  • Voltage
  • AC 100V-240V, 50/60 Hz Statampere (sA)
  • Material
  • EMG Biofeedback Training & Interactive Gaming
  • Equipment Type
  • KM-560
  • Operating Type
  • Automatic / Microprocessor Controlled (Digital Touchscreen Operated)
  • Capacity
  • ETS (EMG-Triggered Stimulation-auto-stimulation on threshold) Kg
  • Condition
  • Visual touch screen interface for easy navigation
  • Shape
  • square
  • Application
  • Stroke Rehabilitation (CVA Recovery)
  • Use
  • Clinical-grade design for hospital and rehab center use
  • Lighting Type
  • Neuromuscular Stimulation Device
  • Portable
  • yes
  • Feature
  • 7-inch TFT LCD Touch Screen with real-time waveform display
  • Set Contains
  • Vaginal / Rectal Probe (for Pelvic Floor Therapy-optional)
  • Real-Time Operation
  • Yes Week
  • Magnification Power
  • Not Applicable mm
  • Accuracy
  • High precision EMG signal detection with reliable and stable output mg
  • Attributes
  • Muscle Strengthening Biofeedback System
  • Recyclable
  • No
  • Recommended For
  • Shoulder, Joints, Nerves, Cervical, Back, Muscles
  • Treatment
  • Treatment record recall system
  • Measuring Range
  • 0-1000- V (microvolts) Rankine
  • Pressure Range
  • Not Applicable
  • Frequency Range
  • 1-120 Hz Hertz (HZ)
  • Usage
  • Multi-channel output for simultaneous therapy
  • Age Group
  • Children, Adults, Women, Elders, Infants
  • Display
  • Touch Screen
  • Power Source
  • Electric
  • Weight
  • 10 Kilograms (kg)


Konmed KM-560 Pelvic Rehab Biofeedback Machine with EMG Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • FOB Port
  • New Delhi
  • Payment Terms
  • Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cheque, Cash Advance (CA), Cash in Advance (CID), Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)
  • Supply Ability
  • 1 Piece Per Day
  • Delivery Time
  • 1 Week
  • Sample Available
  • Yes
  • Sample Policy
  • Free samples available with shipping and taxes paid by the buyer
  • Packaging Details
  • as per communication
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • as per communication customer


About Konmed KM-560 Pelvic Rehab Biofeedback Machine with EMG

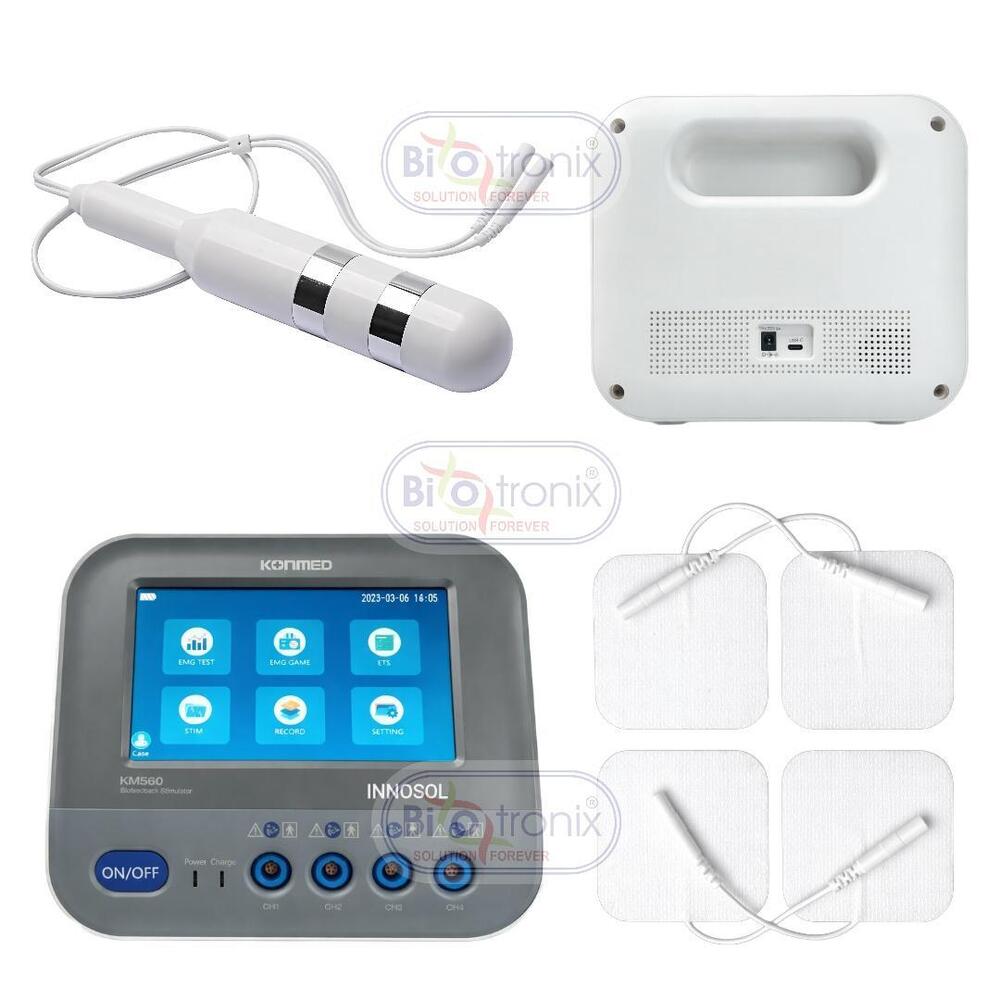

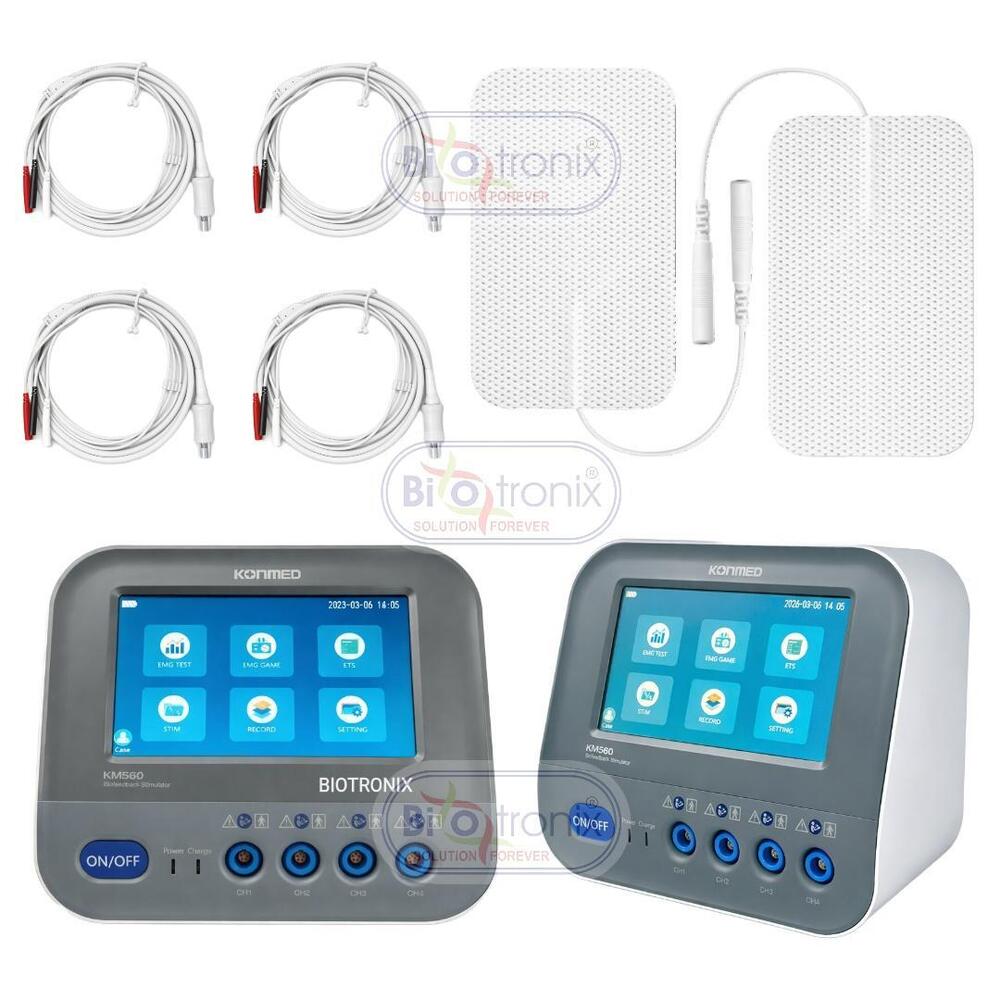

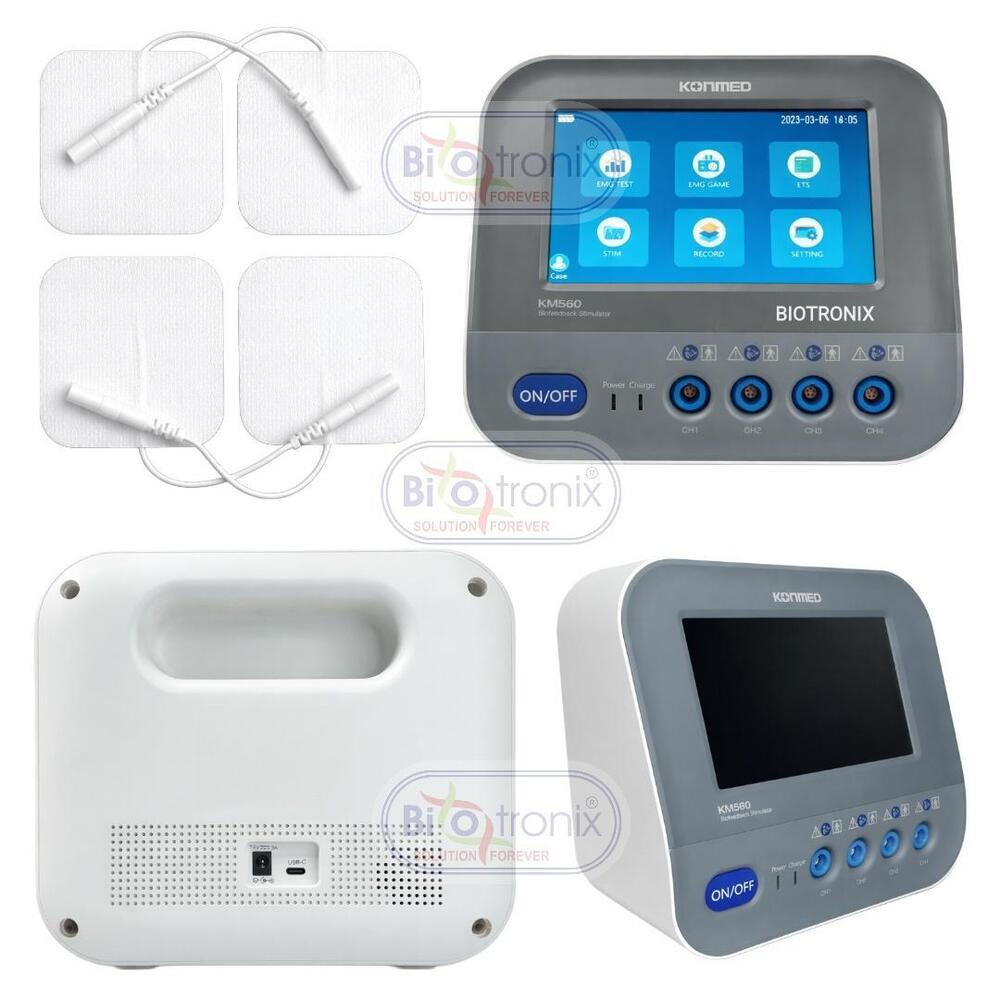

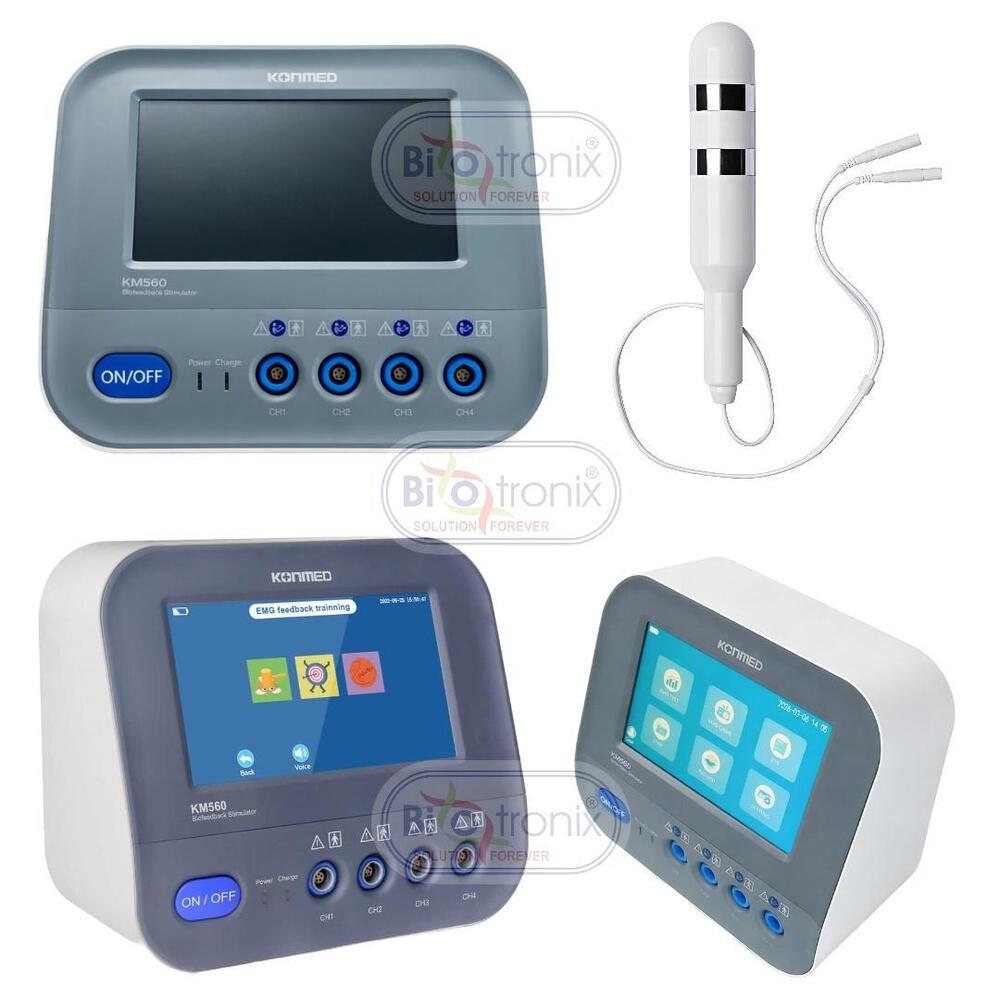

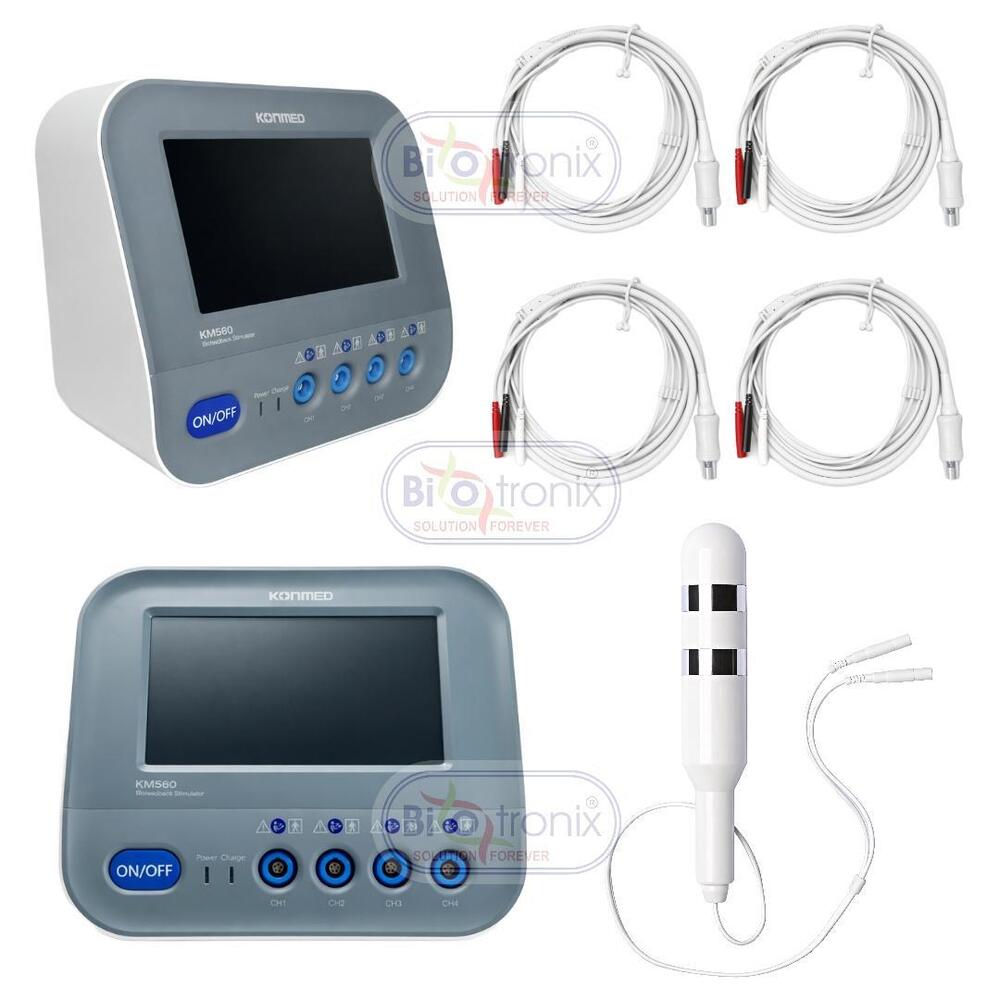

Biotronix Konmed KM-560 Pelvic Rehab Biofeedback Machine with EMG

The Konmed KM-560 Pelvic Rehab Biofeedback Machine is a specialized rehabilitation system designed for effective pelvic floor therapy using advanced EMG biofeedback technology. This device enables precise monitoring of pelvic muscle activity while delivering targeted electrical stimulation, making it highly effective for treating urinary incontinence, postpartum recovery, and pelvic muscle dysfunction.

This clinically advanced solution is for hospitals and physiotherapy clinics, helping therapists deliver accurate, safe, and result-driven pelvic rehabilitation programs. With its 4-channel EMG system and integrated stimulation modes like NMES, FES, TENS, and ETS, the KM-560 ensures comprehensive therapy for strengthening and re-educating pelvic floor muscles.

Key Features

  • 4-channel EMG Biofeedback System for pelvic muscle monitoring
  • Designed for Pelvic Floor Rehabilitation & Training
  • Real-Time EMG Monitoring with waveform display
  • Multi Therapy Modes: EMG, ETS, NMES, FES, TENS
  • EMG Triggered Stimulation (ETS) for active muscle engagement
  • 7-inch TFT LCD Touchscreen with intuitive interface
  • Interactive Biofeedback Training Programs
  • Pre-set + Custom Therapy Programs
  • Patient Data Storage & Progress Tracking
  • Compact, Portable, and Clinical-Grade Design

Applications

  • Urinary Incontinence Treatment
  • Postpartum Pelvic Floor Rehabilitation
  • Pelvic Muscle Weakness & Dysfunction
  • Gynecological Rehabilitation
  • Prostate Surgery Recovery
  • Neurological Pelvic Disorders
  • Core Muscle Strengthening

Benefits

  • Improves pelvic muscle strength and control
  • Provides real-time feedback for accurate therapy
  • Enhances patient awareness and engagement
  • Supports faster recovery after childbirth or surgery
  • Reduces symptoms of urinary incontinence
  • Enables personalized and progressive pelvic rehab programs

Technical Specifications

  • Model: KM-560
  • Channels: 4 Channel EMG Biofeedback + 4 Channel Stimulation Output
  • Therapy Modes: EMG Biofeedback, ETS (EMG Triggered Stimulation), NMES, FES, TENS
  • Display: 7-inch TFT LCD Touchscreen (High Resolution)
  • EMG Measuring Range: 0 to 1000 V
  • EMG Sensitivity: < 1 V
  • Stimulation Frequency: 1120 Hz
  • Pulse Width: 50450 s
  • Output Intensity: 0100 mA Adjustable
  • Programs: 20+ Pre-set Programs + Custom Modes
  • EMG Functions: Quick Test, Standard EMG Analysis, Biofeedback Training
  • Trigger Mode: EMG Triggered (ETS) + Manual Mode
  • Data Storage: Patient Records & Therapy Progress Tracking
  • Control System: Microprocessor-Based Touch Operation
  • Power Supply: AC 100-240V, 50/60Hz
  • Battery: Rechargeable Lithium Battery (Optional Backup)
  • Safety Features: Auto Shut-Off, Overload Protection, Patient Isolation Safety
  • Accessories: EMG Sensors, Surface Electrodes, Vaginal/Rectal Probes for Pelvic Therapy
  • Weight: Approx. 810 kg
  • Portability: Portable Clinical Model
  • Usage: Hospital, Physiotherapy Clinic, Women's Health & Rehab Centers
  • Warranty: 1 Year


Konmed KM-560 pelvic rehab biofeedback machine with EMG, pelvic floor physiotherapy device India, urinary incontinence treatment machine EMG, pelvic muscle training biofeedback system, NMES, FES, TENS, ETS, pelvic therapy machines and postpartum rehab equipment EMG, gynecology physiotherapy device, electrotherapy combo unit pelvic rehab, neuromuscular pelvic rehabilitation equipment, advanced physiotherapy machine India
