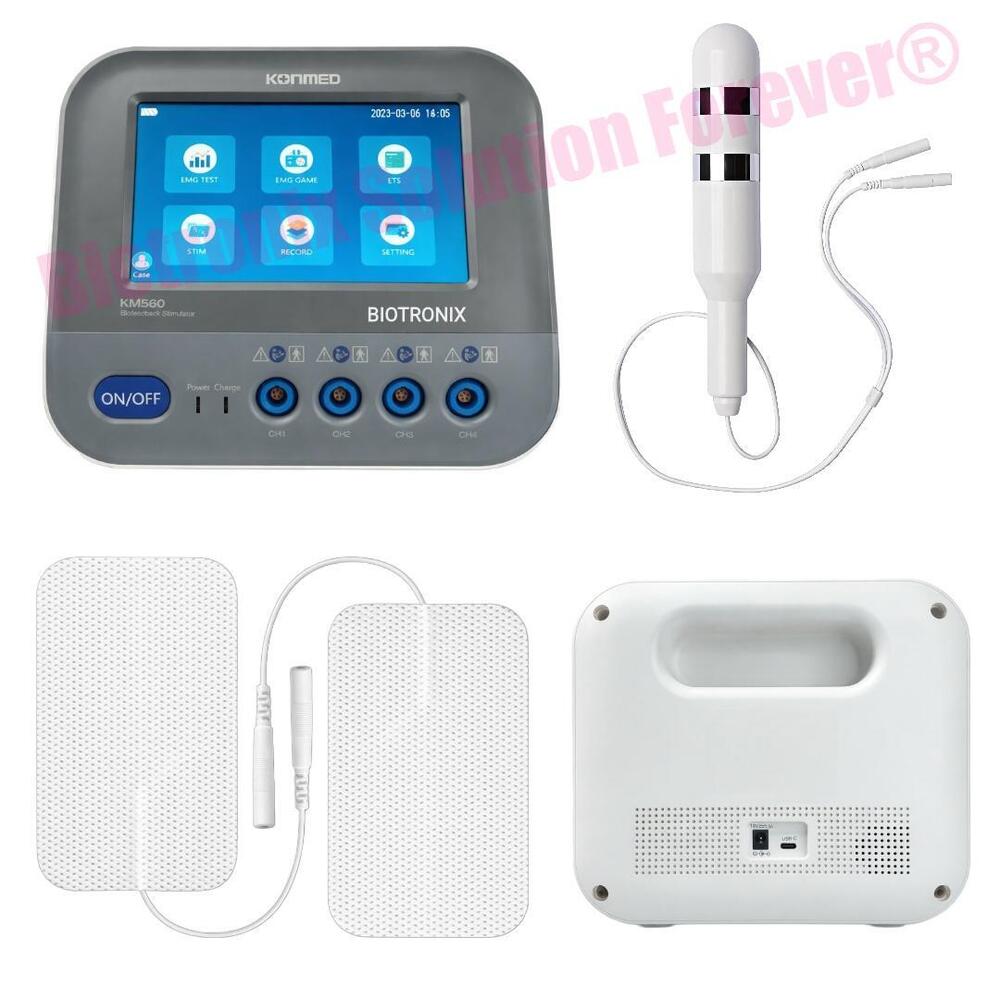

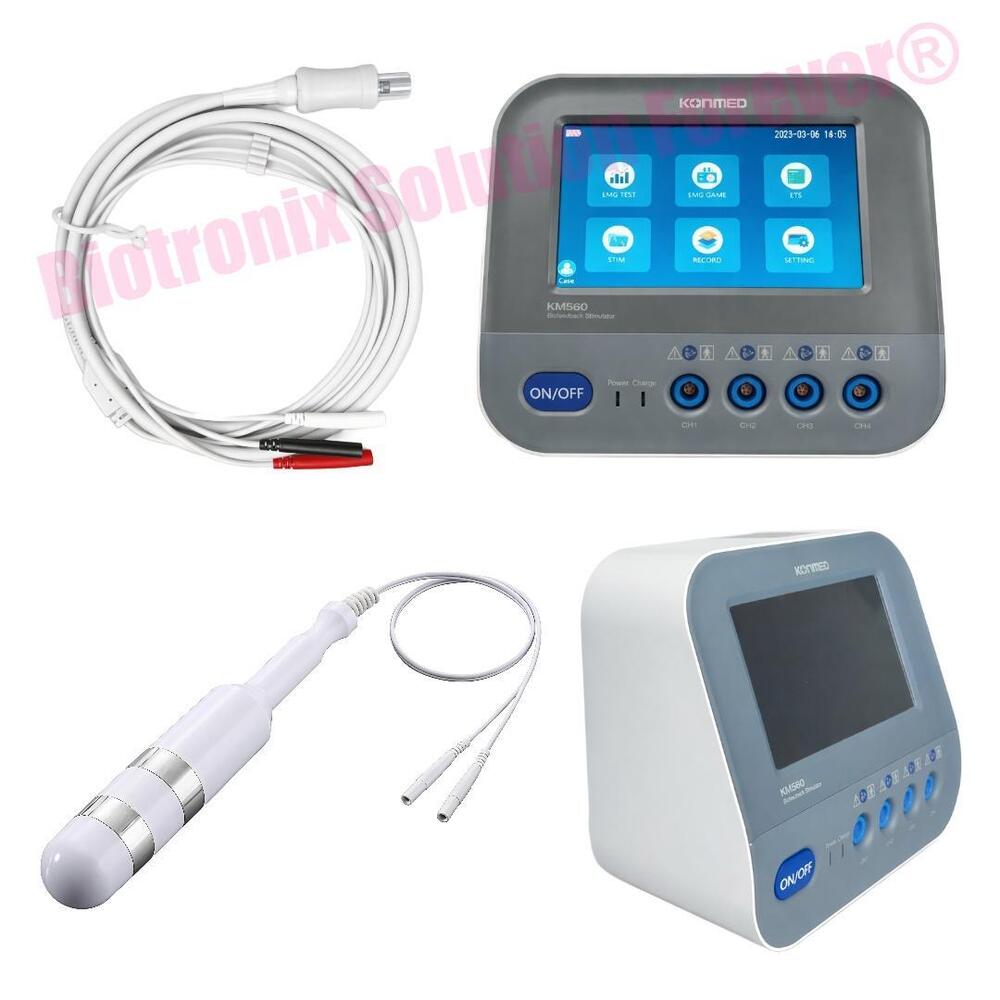

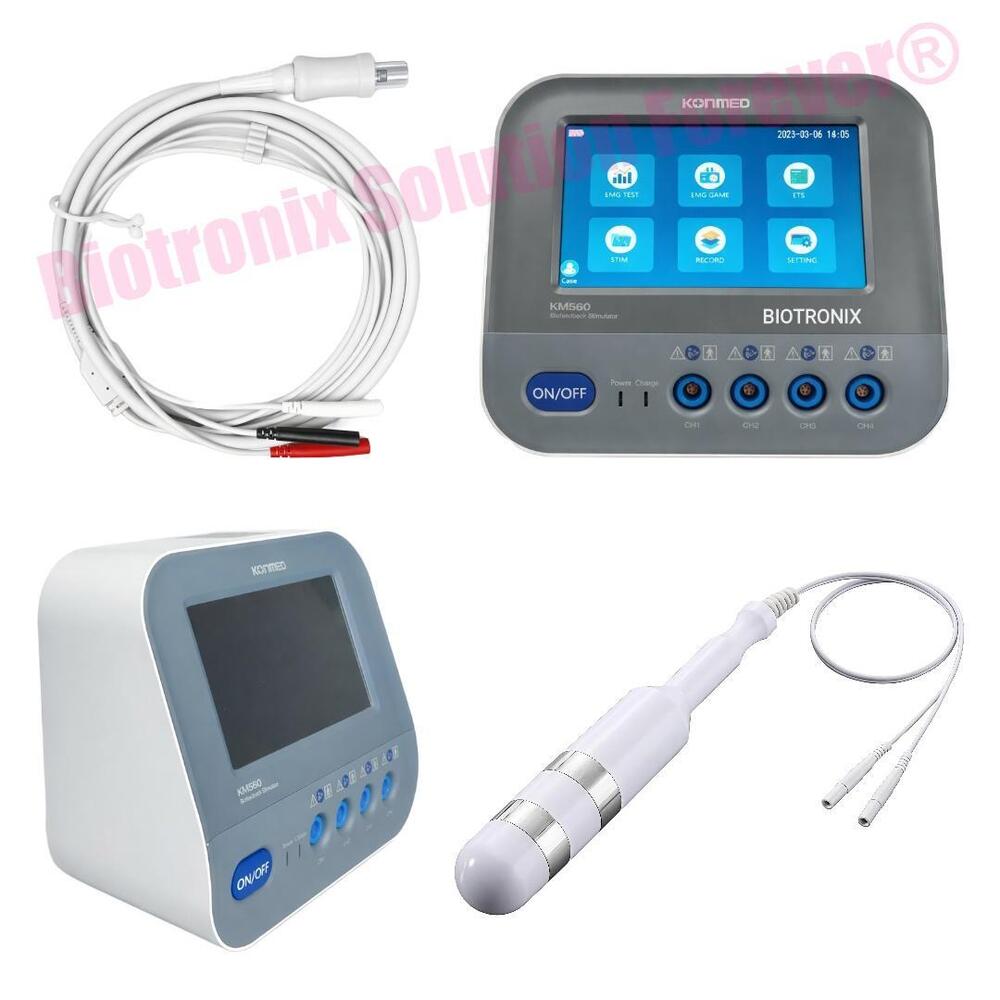

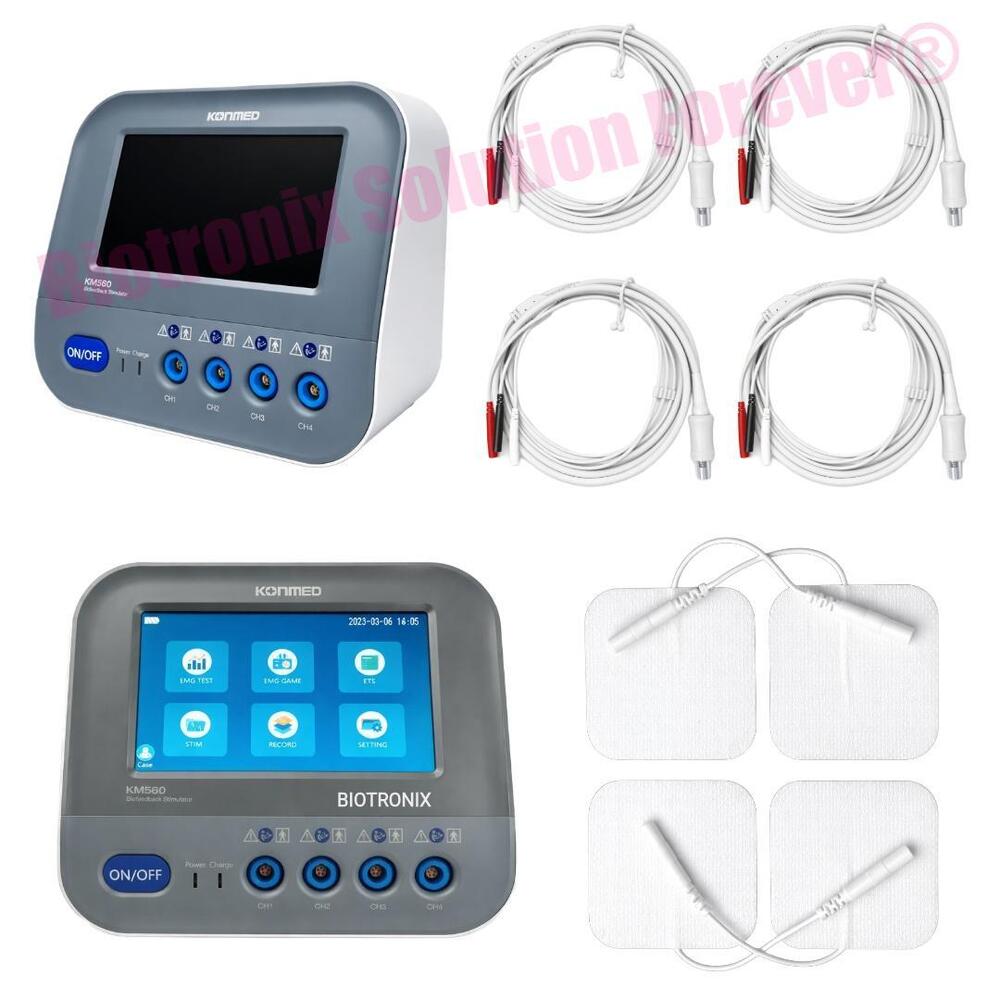

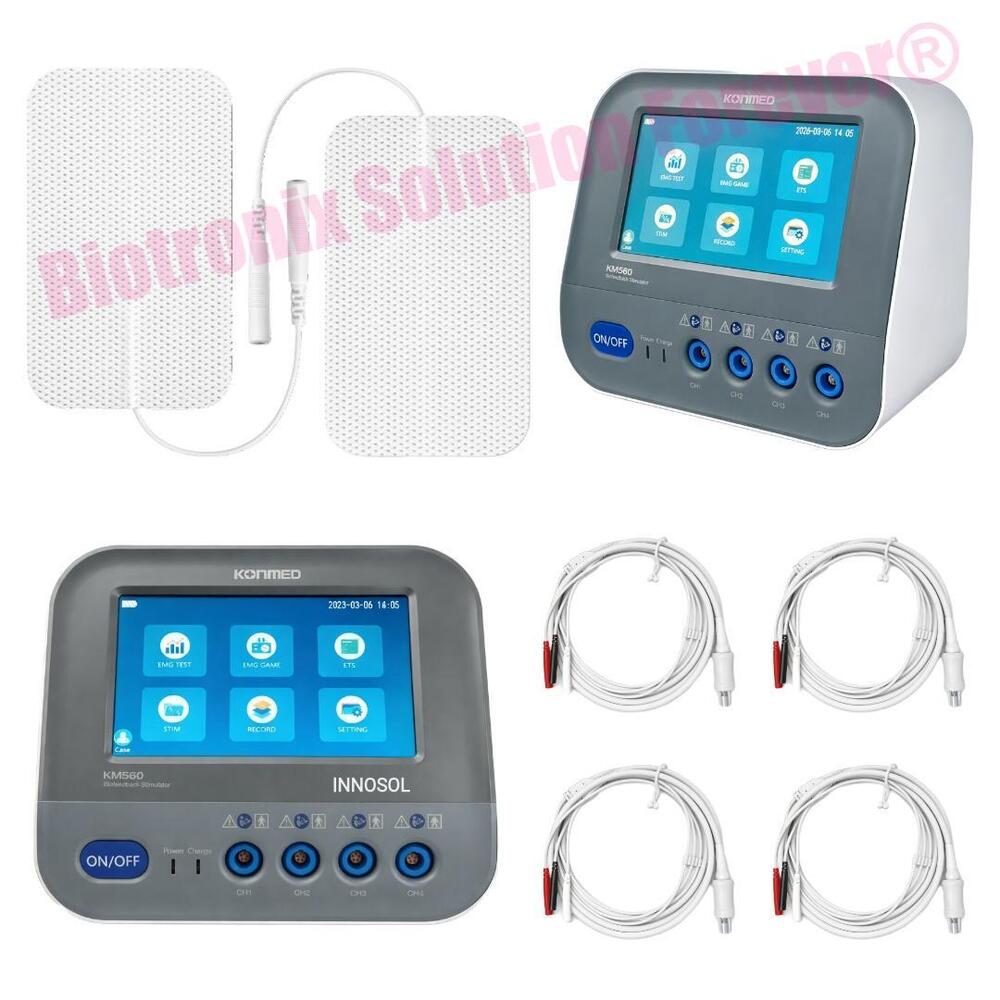

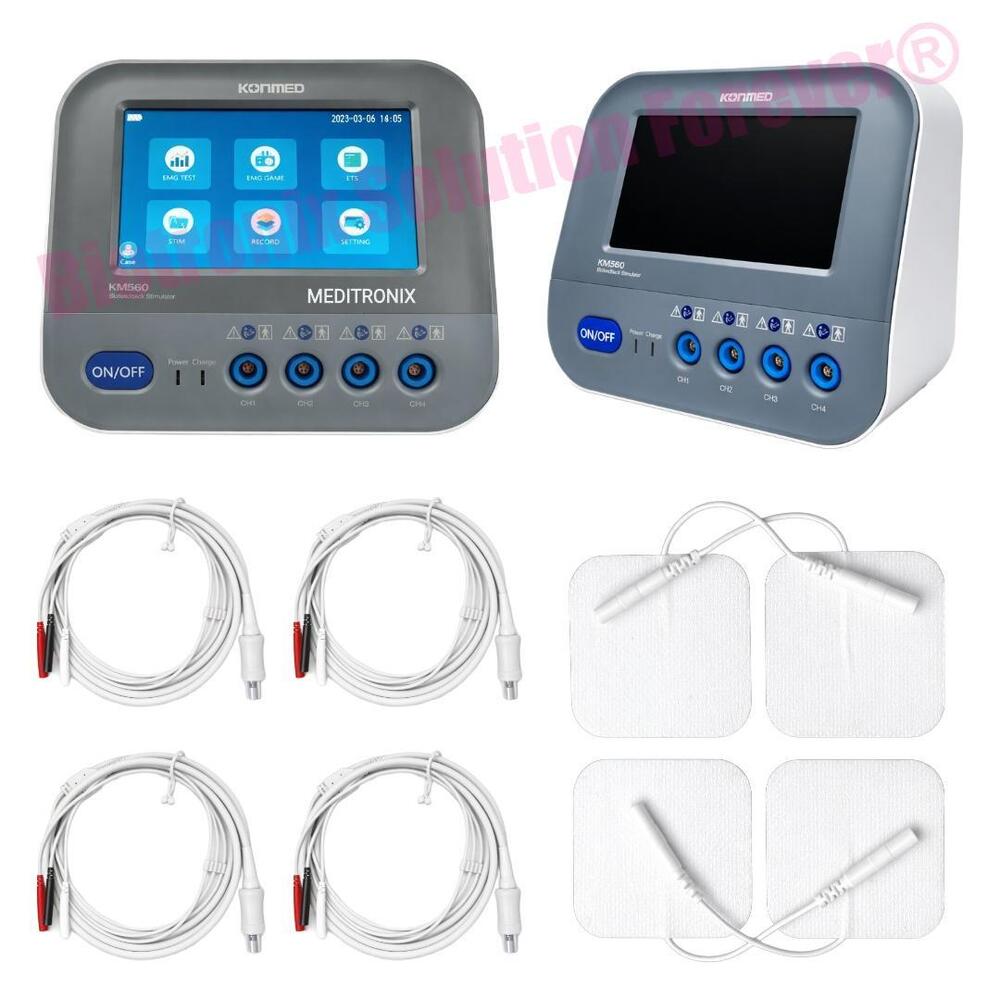

Konmed KM-560 Clinical Biofeedback Device with Gaming Therapy

Price 20000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

About Konmed KM-560 Clinical Biofeedback Device with Gaming Therapy

Biotronix Konmed KM-560 Clinical Biofeedback Device with Gaming Therapy

Konmed KM-560 Clinical Biofeedback Device with Gaming Therapy is an advanced physiotherapy and rehabilitation system designed to deliver effective neuromuscular training with enhanced patient engagement. It integrates EMG biofeedback with electrical stimulation to provide real-time monitoring of muscle activity and precise therapeutic output. The built-in gaming therapy mode transforms rehabilitation sessions into interactive exercises, improving patient motivation and treatment outcomes.

The device also features intelligent ETS (EMG Triggered Stimulation), which automatically activates stimulation when the patient reaches a preset muscle contraction threshold. With its 4-channel capability, touchscreen interface, and customizable therapy programs, the KM-560 is widely used for pelvic floor rehabilitation, stroke recovery, sports injury management, and pain therapy in clinical environments.

Key Features

Clinical-grade EMG Biofeedback system
Integrated Gaming Therapy for interactive rehab
ETS (EMG Triggered Stimulation) technology
4-channel EMG + STIM simultaneous output
Combination of EMG, NMES, FES & STIM modes
7-inch TFT touchscreen interface
Real-time waveform display and feedback
Adjustable therapy parameters and intensity
Patient data storage and progress tracking
User-friendly and clinic-ready design

Applications

Stroke and neurological rehabilitation
Pelvic floor dysfunction & urinary incontinence
Pediatric and cognitive rehabilitation training
Sports injury recovery
Pain management therapy
Muscle strengthening and re-education
Dysphagia rehabilitation

Benefits

Increases patient engagement through gaming-based therapy
Improves muscle coordination and motor control
Faster recovery with ETS-assisted stimulation
Makes therapy sessions interactive and motivating
Accurate and targeted therapy delivery
Non-invasive and safe treatment solution

Technical Specifications

Model: Konmed KM-560
Type: Clinical EMG Biofeedback Device
Channels: 4 Channel (EMG + STIM combined output)
Therapy Modes: EMG Biofeedback, ETS, NMES, FES, STIM
Display: 7-inch TFT LCD Touchscreen with waveform visualization
Frequency Range: 1 â€“ 120 Hz
Preset Programs: Multiple preset & customizable programs
EMG Functions: Standard EMG Test (~5 min), Quick EMG Test (~140 sec)
ETS Function: EMG-triggered stimulation based on threshold level
Gaming Mode: Interactive EMG-based rehabilitation games
Training Modes: Pelvic Rehab, Sports Rehab, Pain Relief, Custom Programs
Data Storage: Patient records, reports & treatment history
Multi-User Support: Yes
Power Supply: Rechargeable Lithium Battery / AC Supply
Interface: Touchscreen with graphical and waveform feedback
Accessories: Electrodes, probes, cables, user manual
Design: Compact, portable, clinic-grade
