Konmed KM-560 4 Channel EMG Biofeedback System for Therapy

Send Inquiry

Request To Call Back

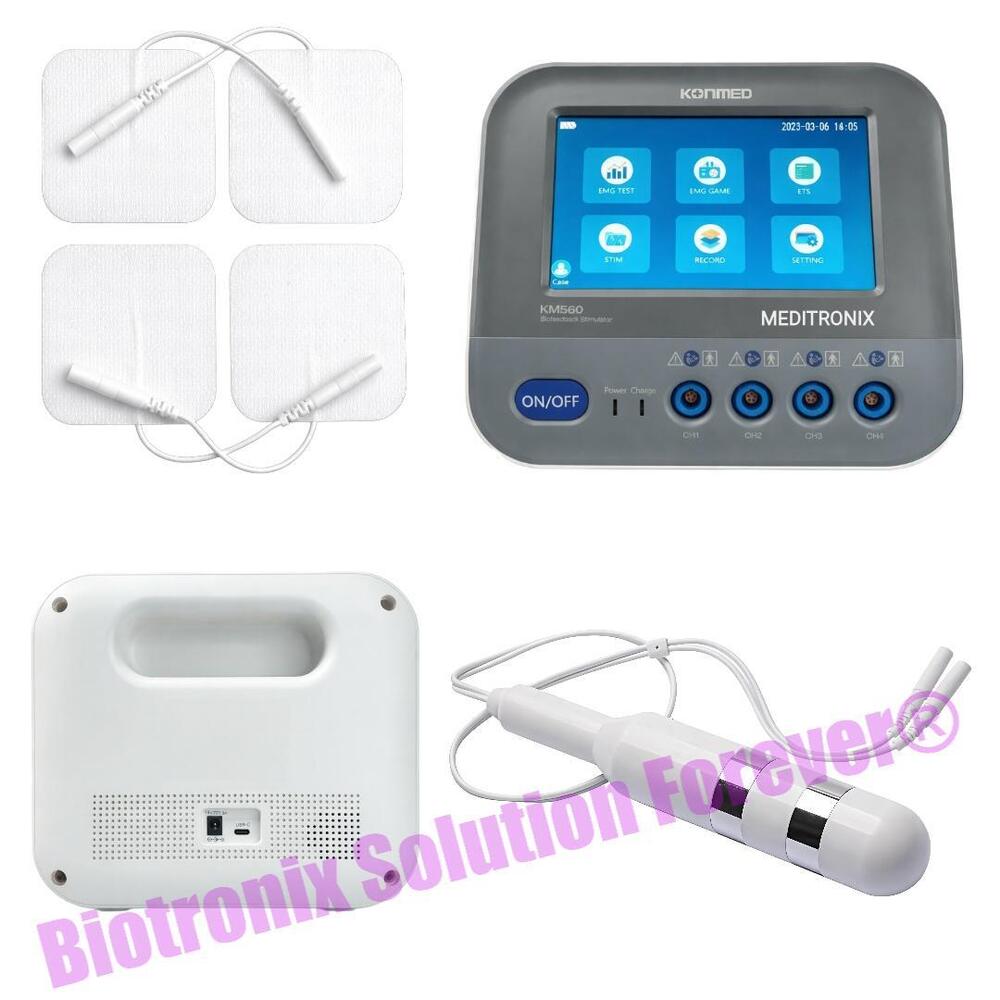

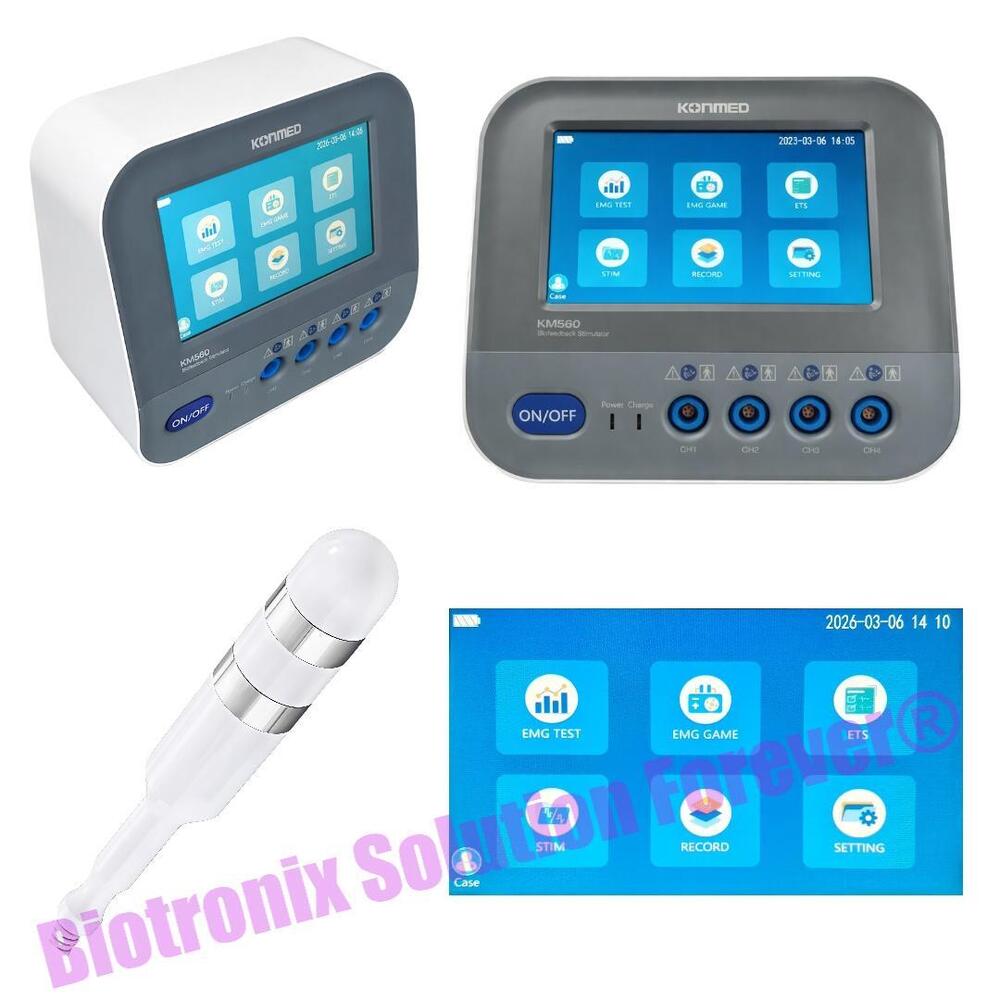

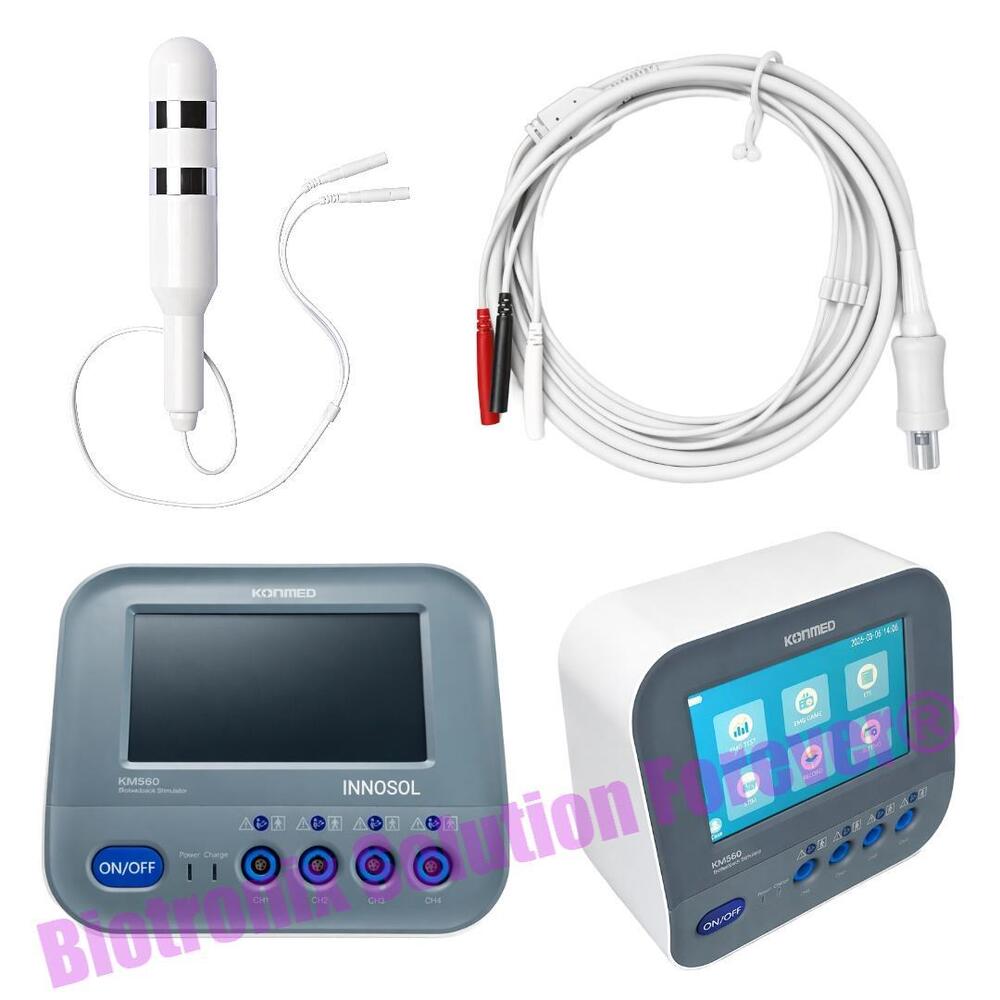

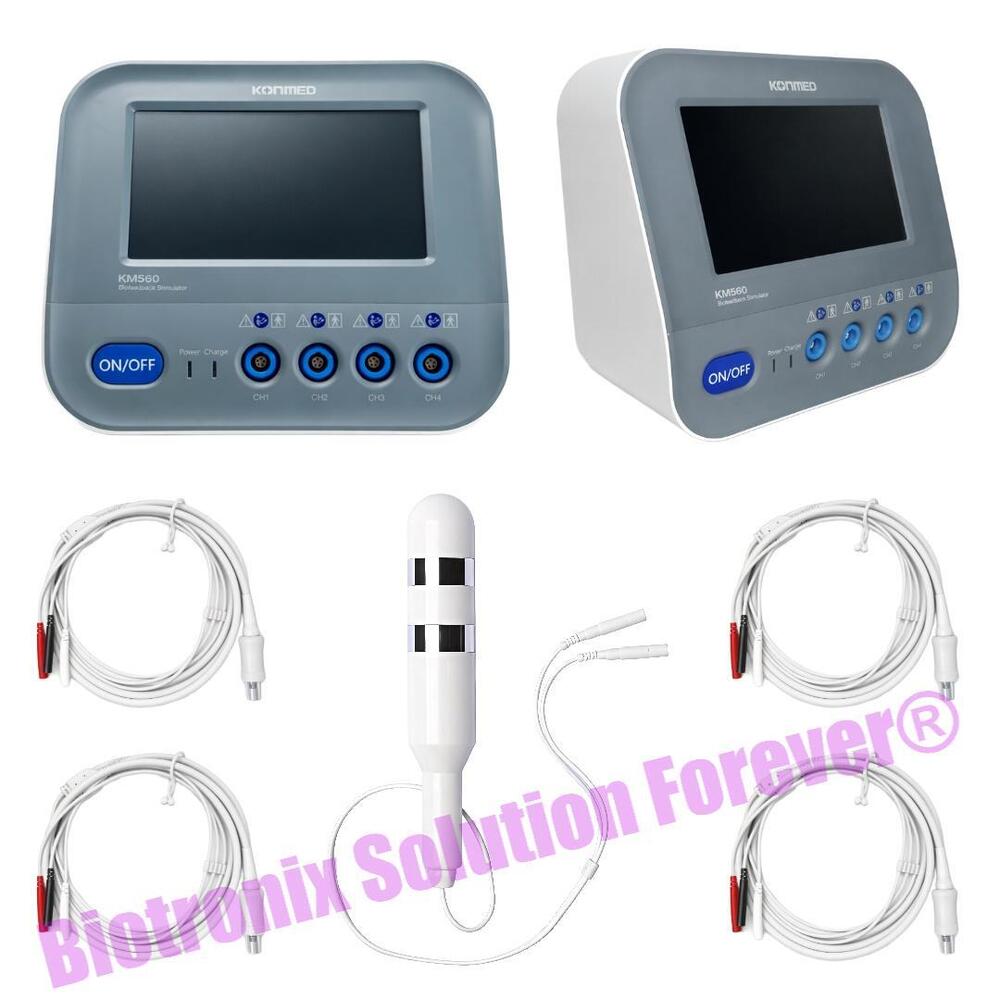

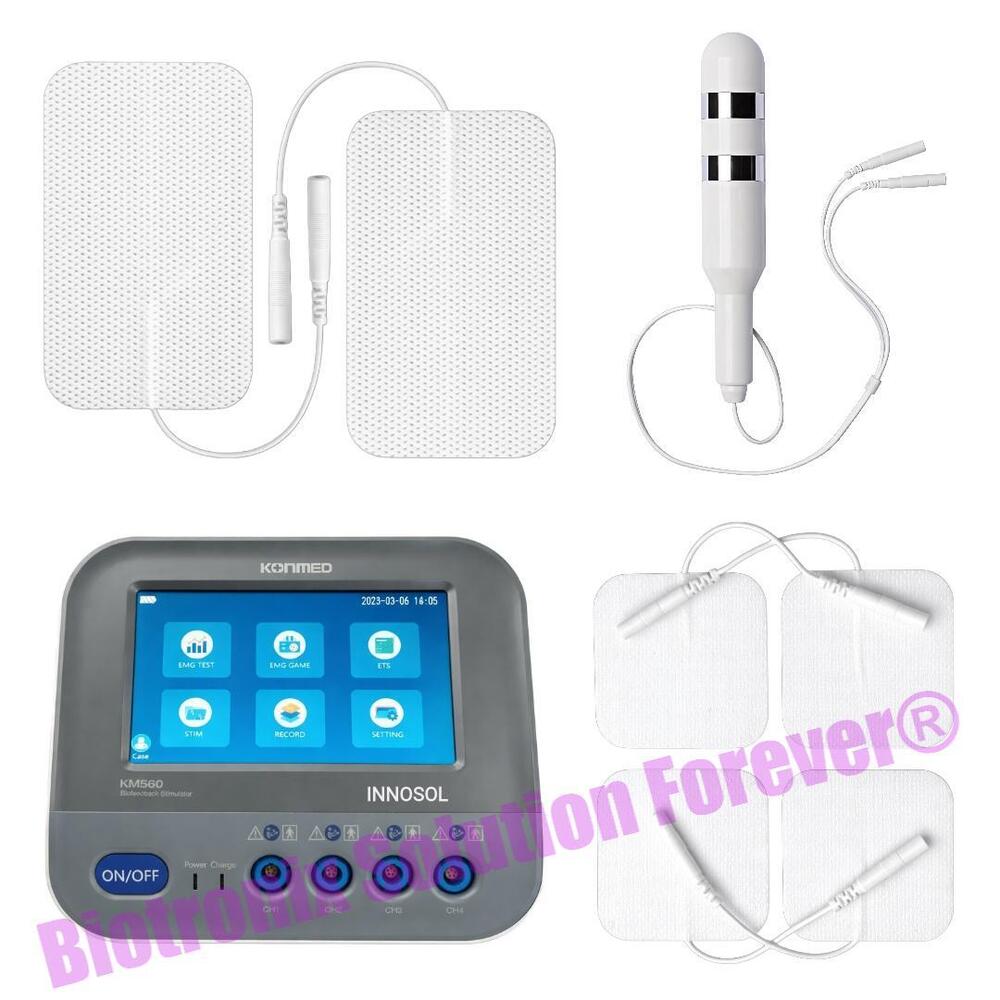

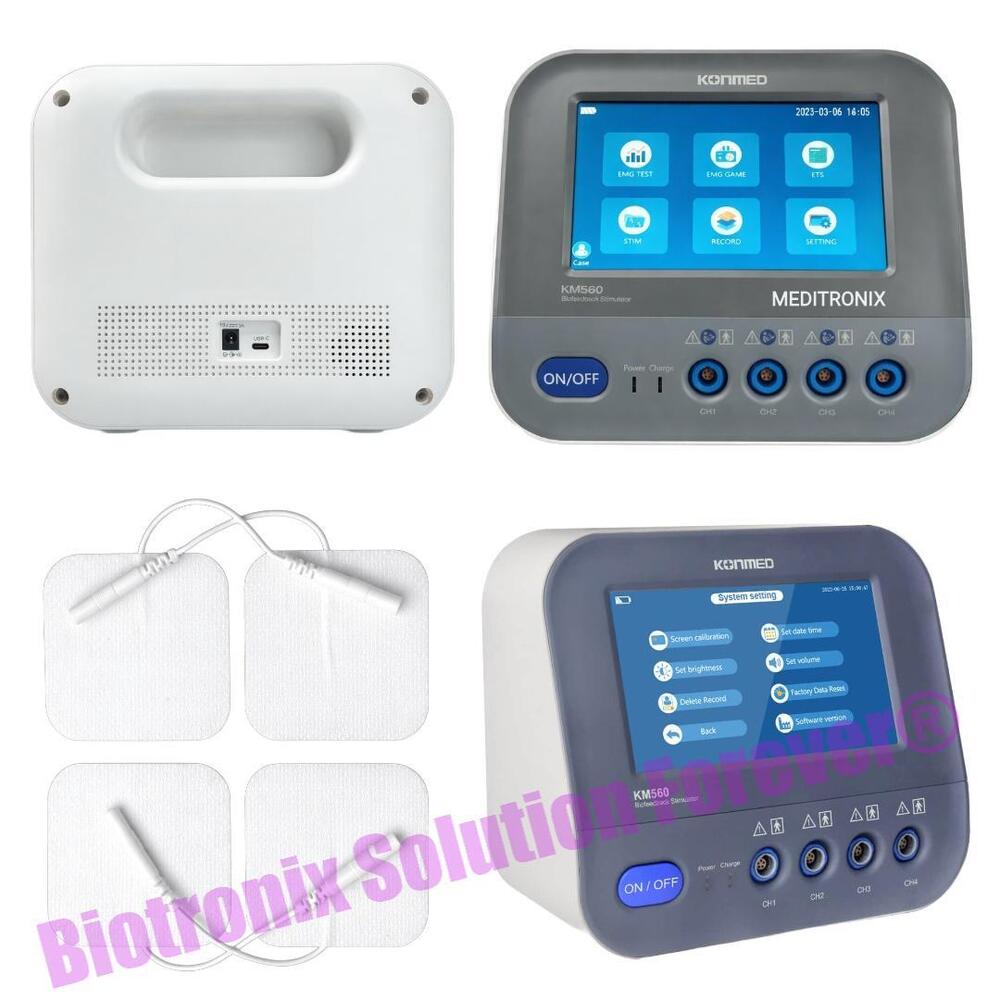

Konmed KM-560 4 Channel EMG Biofeedback System for Therapy

Price 20000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Konmed KM-560 4 Channel EMG Biofeedback System for Therapy Specification

Suitable For Use
physiotherapy

Application
Stroke Rehabilitation (CVA Recovery)

Attributes
EMG Controlled Muscle Therapy Machine

Shape
square

Dimension (L*W*H)
15, 20, 25 Inch (in)

Function
Standard EMG Test (muscle activity assessment) Quick EMG Assessment (fast screening mode) EMG Biofeedback Training & Interactive Gaming

Adhesive Type
Physiotherapy Equipment with ETS Mode

Lighting Type
EMG Assisted Muscle Training Device

Wall Mounted
EMG Therapy Equipment India

Storage Instructions
Patient data storage & history tracking

Real-Time Operation
Yes Week

Set Contains
Vaginal / Rectal Probe (for Pelvic Floor Therapy-optional)

Voltage
AC 100V-240V, 50/60 Hz Statampere (sA)

Feature
7-inch TFT LCD Touch Screen with real-time waveform display

Color
more

Use
Clinical-grade design for hospital and rehab center use

Power
AC Power / Rechargeable support Volt (v)

Condition
Visual touch screen interface for easy navigation

Size
25

Noise Level
Neuro Rehab Device with Biofeedback db

Technology
Combination of EMG Biofeedback + Neuromuscular Electrical Stimulation

Equipment Type
KM-560

Accuracy
High precision EMG signal detection with reliable and stable output mg

Magnification Power
Not Applicable mm

Operation Mode
EMG Biofeedback, ETS, NMES, FES

Power Consumption
Power Supply: AC Power / Rechargeable Lithium Battery support Watt (W)

Material
EMG Biofeedback Training & Interactive Gaming

Warranty
1 year

Capacity
ETS (EMG-Triggered Stimulation-auto-stimulation on threshold) Kg

Operating Type
Automatic / Microprocessor Controlled (Digital Touchscreen Operated)

Portable
yes

Recyclable
No

Recommended For
Shoulder, Joints, Cervical, Back, Muscles, Nerves

Treatment
Treatment record recall system

Measuring Range
0-1000- V (microvolts) Rankine

Pressure Range
Not Applicable

Frequency Range
1-120 Hz Hertz (HZ)

Usage
Multi-channel output for simultaneous therapy

Age Group
Children, Adults, Women, Elders, Infants

Display
Touch Screen

Power Source
Electric

Weight
10 Kilograms (kg)

About Konmed KM-560 4 Channel EMG Biofeedback System for Therapy

Biotronix Konmed KM-560 4 Channel EMG Biofeedback System for Therapy

The Konmed KM-560 4 Channel EMG Biofeedback System for Therapy is an advanced physiotherapy and rehabilitation device designed for precise neuromuscular assessment and effective treatment. It integrates EMG biofeedback with electrical stimulation to provide real-time monitoring of muscle activity and accurate therapeutic output.

The intelligent ETS (EMG Triggered Stimulation) feature automatically activates stimulation when the patient reaches a preset muscle contraction threshold, ensuring responsive and goal-oriented therapy. With its 4-channel capability, large touchscreen interface, and interactive EMG training modes, the KM-560 is widely used in stroke rehabilitation, pelvic floor therapy, sports injury recovery, and muscle re-education across clinical settings.

Applications

Stroke and neurological rehabilitation
Pelvic floor dysfunction & urinary incontinence
Post-surgery rehabilitation
Sports injury recovery
Pain management therapy
Muscle strengthening and re-education
Dysphagia rehabilitation

Benefits

Enhances muscle activation and coordination
Improves therapy accuracy with real-time feedback
Faster recovery with ETS-assisted stimulation
Enables multi-area treatment with 4 channels
Accurate and targeted therapy delivery
Safe, non-invasive, and drug-free solution

Technical Specifications

Model: Konmed KM-560
Type: 4 Channel EMG Biofeedback System for Therapy
Channels: 4 Channel (EMG + STIM combined output)
Therapy Modes: EMG Biofeedback, ETS, NMES, FES, STIM
Display: 7-inch TFT LCD Touchscreen with waveform visualization
Frequency Range: 1 â€“ 120 Hz
Preset Programs: Multiple preset & customizable programs
EMG Functions: Standard EMG Test (~5 min), Quick EMG Test (~140 sec)
ETS Function: EMG-triggered stimulation based on threshold level
Training Modes: Pelvic Rehab, Sports Rehab, Pain Relief, Custom Programs
Interactive Training: EMG Biofeedback Games & Scene Training
Data Storage: Patient records, reports & treatment history
Multi-User Support: Yes
Power Supply: Rechargeable Lithium Battery / AC Supply
Interface: Touchscreen with graphical and waveform feedback
Accessories: Electrodes, probes, cables, user manual
Design: Compact, portable, clinic-grade equipment

Konmed KM-560 4 Channel EMG Biofeedback System, EMG Biofeedback Machine for Therapy, ETS Biofeedback Device, Physiotherapy Biofeedback Equipment, Pelvic Floor Rehabilitation Machine, NMES FES Stimulator, Stroke Rehabilitation Device, Muscle Stimulator Machine, Clinical EMG Device, Neuro Rehab Equipment
