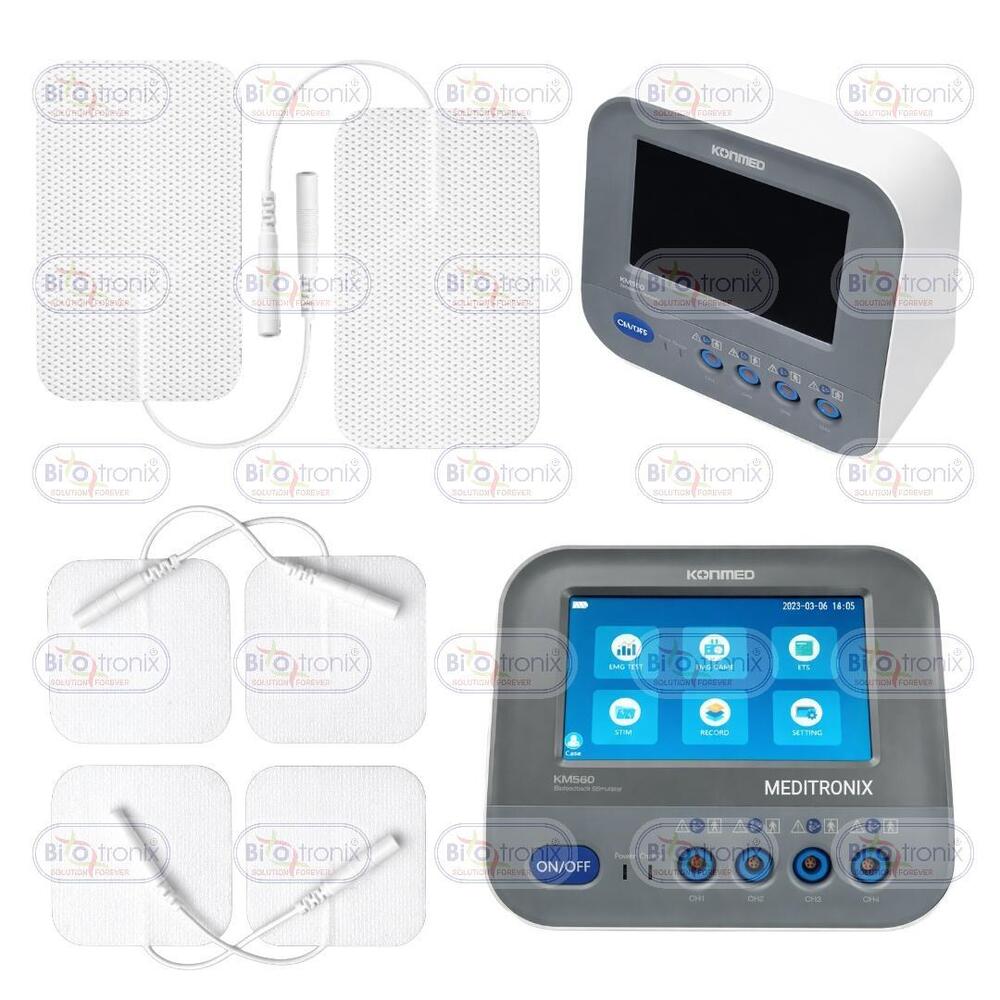

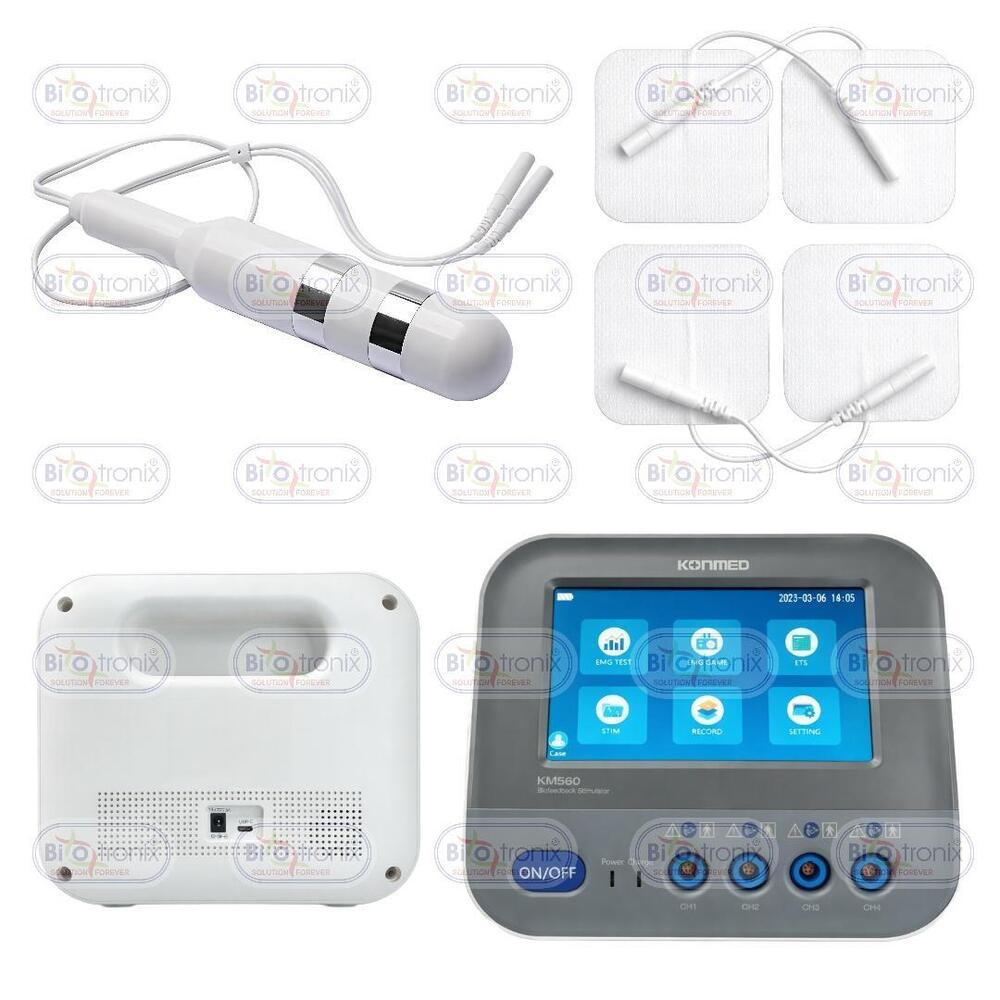

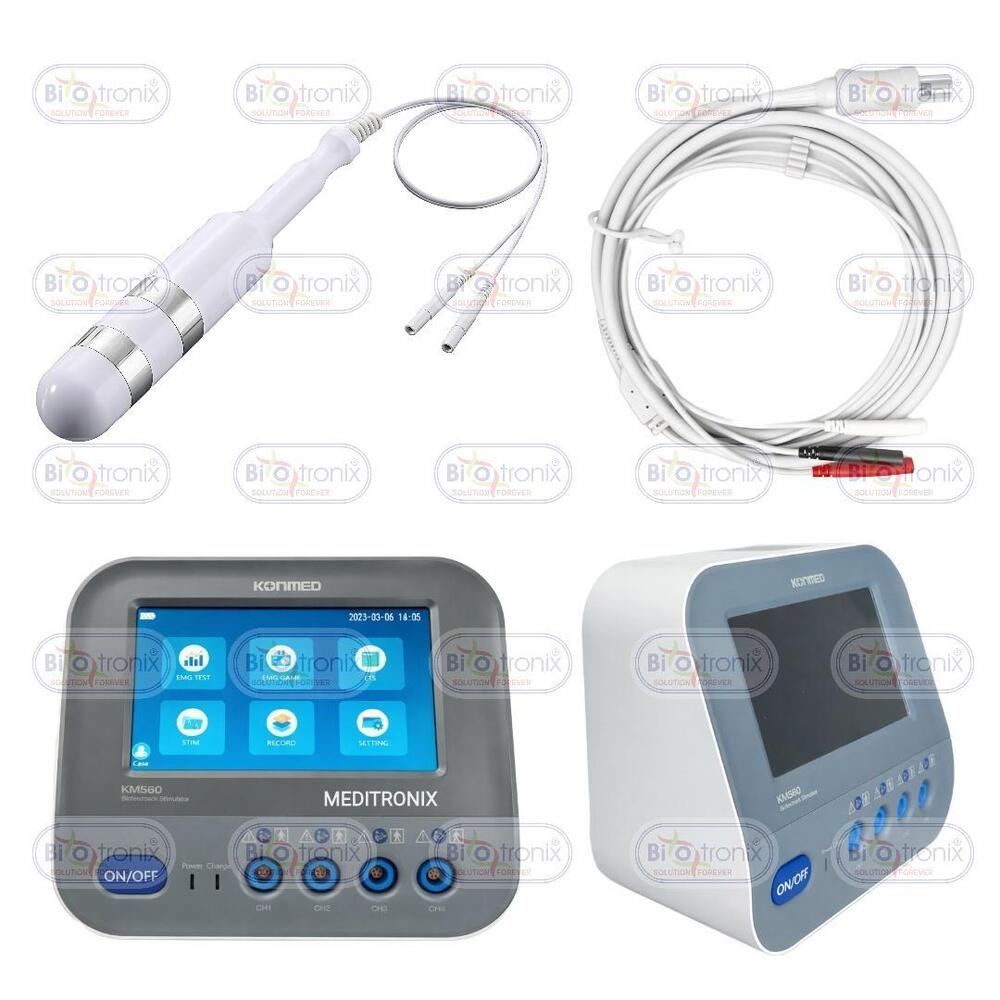

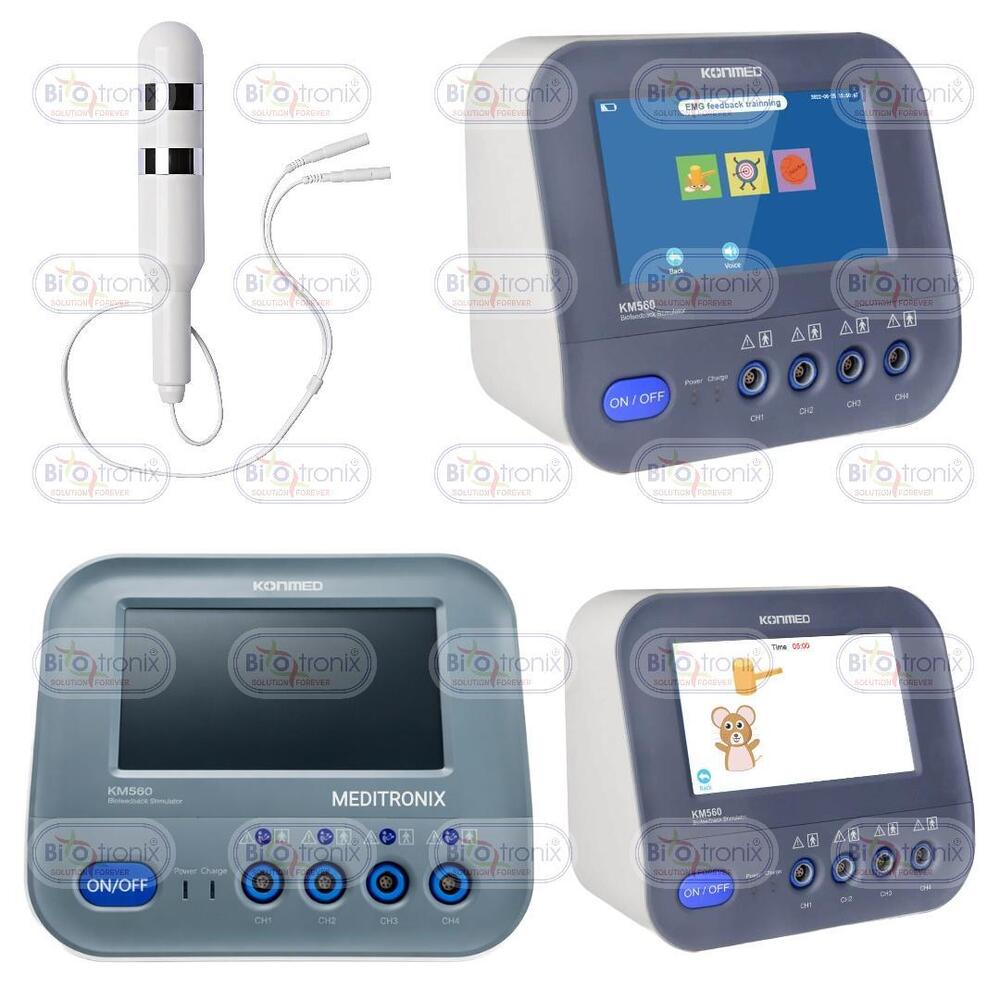

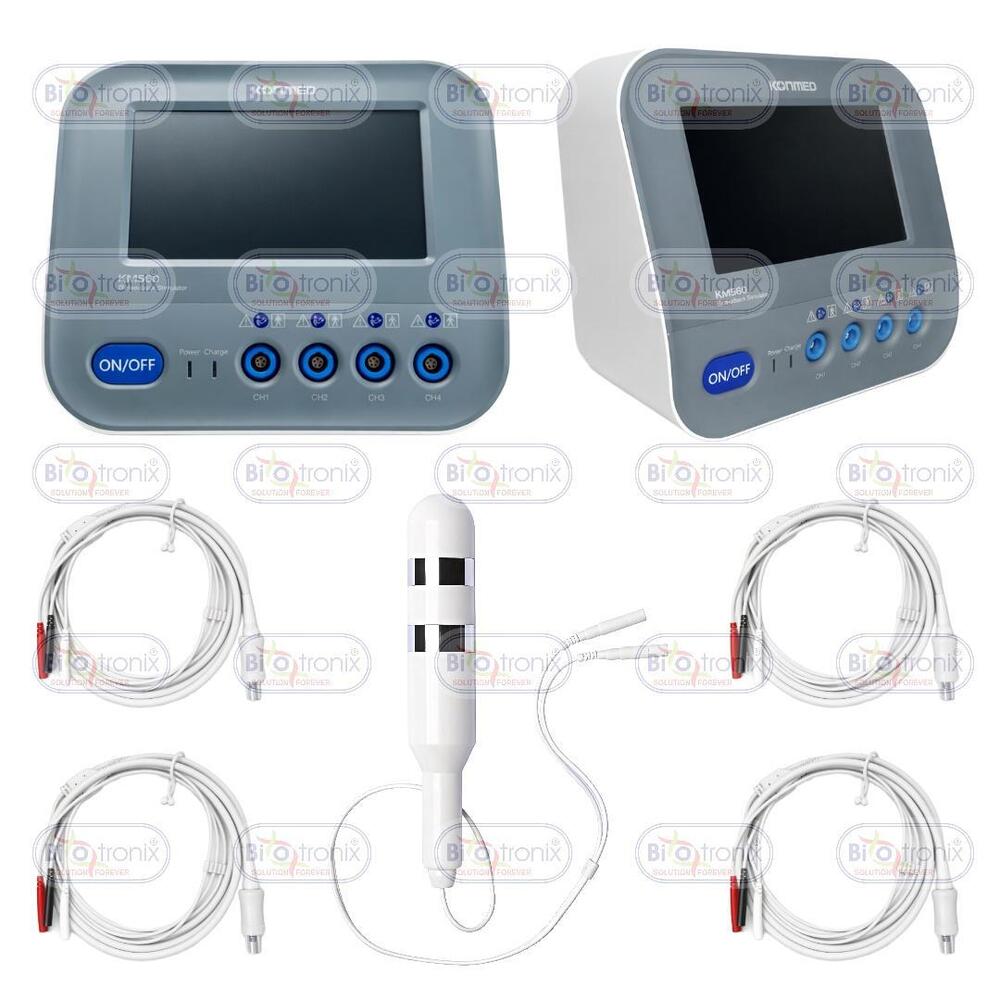

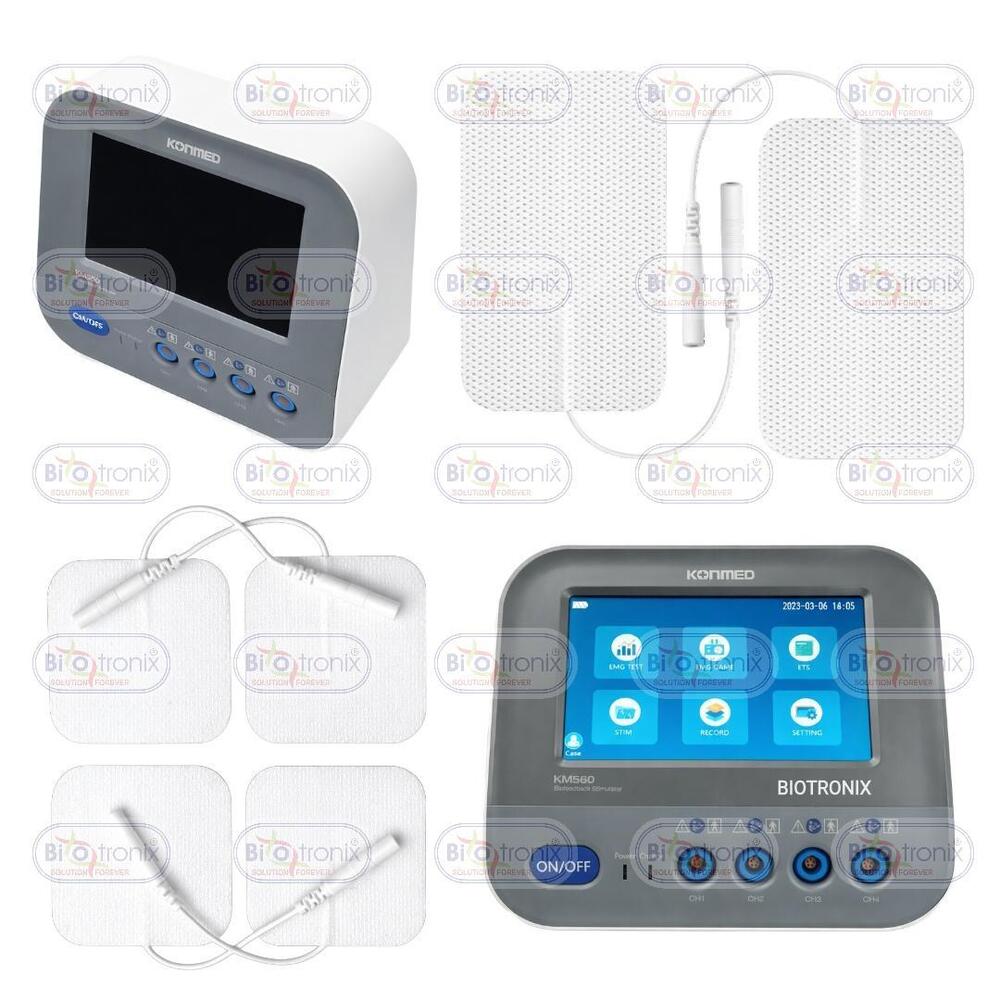

Konmed KM-560 4 Channel EMG Biofeedback System for Clinics

Price 20000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

About Konmed KM-560 4 Channel EMG Biofeedback System for Clinics

Biotronix Konmed KM-560 4 Channel EMG Biofeedback System for Clinics

The Konmed KM-560 4 Channel EMG Biofeedback System is a clinically advanced rehabilitation solution designed for professional use in physiotherapy clinics and hospitals. This high-performance system combines real-time EMG biofeedback with multi-mode electrotherapy, enabling therapists to monitor muscle activity accurately while delivering targeted stimulation for effective treatment outcomes.

This reliable and intelligent device is for modern clinical setups, allowing healthcare professionals to implement precise, data-driven rehabilitation programs. With its powerful 4-channel EMG capability and integrated therapy modes such as NMES, FES, TENS, and ETS, the KM-560 provides a complete platform for neuromuscular re-education, muscle strengthening, and functional recovery.

Key Features

4-Channel EMG Biofeedback System for clinical applications
Real-Time EMG Monitoring with waveform display
Multi Therapy Modes: EMG, ETS, NMES, FES, TENS
EMG Triggered Stimulation (ETS) for active rehabilitation
7-inch TFT LCD Touchscreen with intuitive interface
Interactive Biofeedback Training Programs
Microprocessor-controlled system for stable and accurate performance
Pre-set + Custom Therapy Programs
Patient Data Storage & Progress Tracking
Durable, Portable, and Clinical-Grade Design

Applications

Physiotherapy Clinics & Rehabilitation Centers
Neurological Rehabilitation (Stroke, Paralysis)
Muscle Re-Education & Strength Training
Pelvic Floor Therapy (Urinary Incontinence)
Dysphagia (Swallowing Therapy)
Post-Surgical Rehabilitation
Orthopedic & Sports Injury Recovery

Benefits

Provides precise EMG-based muscle assessment
Enhances treatment outcomes with integrated electrotherapy
Improves neuromuscular coordination and muscle control
Supports customized and progressive therapy programs
Increases patient engagement through real-time feedback
Ideal for high-performance clinical environments

Technical Specifications

Model: KM-560
Channels: 4 Channel EMG Biofeedback + 4 Channel Stimulation Output
Therapy Modes: EMG Biofeedback, ETS (EMG Triggered Stimulation), NMES, FES, TENS
Display: 7-inch TFT LCD Touchscreen (High Resolution)
EMG Measuring Range: 0 â€“ 1000 ÂµV
EMG Sensitivity: â‰¤ 1 ÂµV
Stimulation Frequency: 1 â€“ 120 Hz
Pulse Width: 50 â€“ 450 Âµs
Output Intensity: 0 â€“ 100 mA Adjustable
Programs: 20+ Pre-set Programs + Custom Therapy Modes
EMG Functions: Quick Test, Standard EMG Analysis, Biofeedback Training
Trigger Mode: EMG Triggered (ETS) + Manual Mode
Data Storage: Patient Records & Therapy Progress Tracking
Control System: Microprocessor-Based Touch Operation
Power Supply: AC 100â€“240V, 50/60Hz
Battery: Rechargeable Lithium Battery (Optional Backup)
Safety Features: Auto Shut-Off, Overload Protection, Patient Isolation Safety
Accessories: EMG Sensors, Surface Electrodes, Optional Vaginal/Rectal Probes
Weight: Approx. 8â€“10 Kg
Portability: Portable Clinical Model
Usage: Clinics, Hospitals, Rehabilitation Centers
Warranty: 1 Year
