Konmed KM-560 4 Channel EMG Biofeedback Device with ETS Mode

Send Inquiry

Request To Call Back

Konmed KM-560 4 Channel EMG Biofeedback Device with ETS Mode

Price 20000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Konmed KM-560 4 Channel EMG Biofeedback Device with ETS Mode Specification

Size
25

Application
Stroke Rehabilitation (CVA Recovery)

Attributes
ETS Mode Biofeedback Equipment

Voltage
AC 100V-240V, 50/60 Hz Statampere (sA)

Noise Level
4 Channel EMG Biofeedback Machine db

Condition
Visual touch screen interface for easy navigation

Operation Mode
EMG Biofeedback, ETS, NMES, FES

Shape
square

Technology
Combination of EMG Biofeedback + Neuromuscular Electrical Stimulation

Adhesive Type
EMG Triggered Stimulation Device

Lighting Type
Physiotherapy Biofeedback System

Color
more

Portable
yes

Feature
7-inch TFT LCD Touch Screen with real-time waveform display

Power
AC Power / Rechargeable support Volt (v)

Dimension (L*W*H)
15, 20, 25 Inch (in)

Operating Type
Automatic / Microprocessor Controlled (Digital Touchscreen Operated)

Storage Instructions
Patient data storage & history tracking

Accuracy
High precision EMG signal detection with reliable and stable output mg

Capacity
ETS (EMG-Triggered Stimulation-auto-stimulation on threshold) Kg

Equipment Type
KM-560

Material
EMG Biofeedback Training & Interactive Gaming

Use
Clinical-grade design for hospital and rehab center use

Power Consumption
Power Supply: AC Power / Rechargeable Lithium Battery support Watt (W)

Warranty
1 year

Suitable For Use
physiotherapy

Wall Mounted
Konmed KM-560 EMG Biofeedback Device

Magnification Power
Not Applicable mm

Real-Time Operation
Yes Week

Function
Standard EMG Test (muscle activity assessment) Quick EMG Assessment (fast screening mode) EMG Biofeedback Training & Interactive Gaming

Set Contains
Vaginal / Rectal Probe (for Pelvic Floor Therapy-optional)

Recyclable
No

Recommended For
Shoulder, Joints, Cervical, Back, Muscles, Nerves

Treatment
Treatment record recall system

Measuring Range
0-1000- V (microvolts) Rankine

Pressure Range
Not Applicable

Frequency Range
1-120 Hz Hertz (HZ)

Usage
Multi-channel output for simultaneous therapy

Age Group
Children, Adults, Women, Elders, Infants

Display
Touch Screen

Power Source
Electric

Weight
10 Kilograms (kg)

Konmed KM-560 4 Channel EMG Biofeedback Device with ETS Mode Trade Information

Minimum Order Quantity
1 Piece

FOB Port
New Delhi

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Supply Ability
1 Piece Per Day

Delivery Time
1 Week

Sample Available
Yes

Sample Policy
Free samples available with shipping and taxes paid by the buyer

Packaging Details
as per communication

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
as per communication customer

About Konmed KM-560 4 Channel EMG Biofeedback Device with ETS Mode

Biotronix Konmed KM-560 4 Channel EMG Biofeedback Device with ETS Mode

The Konmed KM-560 4-Channel EMG Biofeedback Device is a clinically advanced rehabilitation system designed to deliver precise EMG biofeedback combined with intelligent EMG Triggered Stimulation (ETS). This 4-channel device allows therapists to monitor multiple muscle groups simultaneously while enabling active patient participation through stimulation that is triggered by the patientâ€™s own muscle effort.

This high-performance solution is for modern physiotherapy clinics and rehabilitation centers, ensuring accurate muscle assessment, enhanced neuromuscular re-education, and faster recovery outcomes. The KM-560 also integrates multiple electrotherapy modes, including NMES, FES, and TENS, making it a complete therapy system for comprehensive rehabilitation.

Key Features

4-channel EMG Biofeedback System for multi-muscle tracking
Advanced ETS Mode (EMG Triggered Stimulation)
Real-Time EMG Monitoring with waveform display
Multi Therapy Modes: EMG, ETS, NMES, FES, TENS

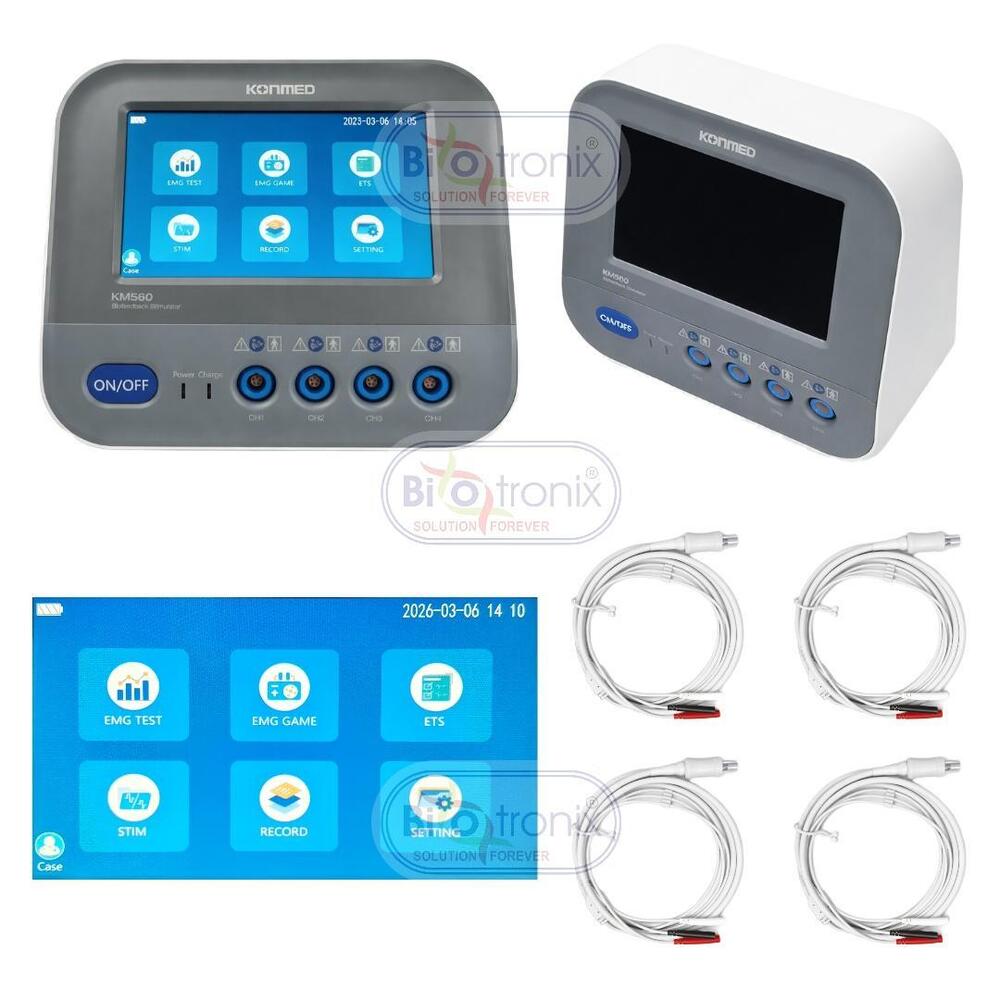

7-inch TFT LCD Touchscreen with intuitive interface
Interactive Biofeedback Training Programs
Microprocessor-controlled system for stable operation
Pre-set + Custom Therapy Programs
Patient Data Storage & Progress Tracking
Compact, Portable, and Clinical-Grade Design

Applications

Stroke & Paralysis Rehabilitation
Muscle Re-Education & Strength Recovery
Pelvic Floor Therapy (Urinary Incontinence)
Dysphagia (Swallowing Therapy)
Post-Surgical Rehabilitation
Orthopedic Physiotherapy
Sports Injury Recovery

Benefits

ETS mode enhances active muscle participation
Improves neuromuscular coordination and control
Provides precise real-time muscle feedback
Accelerates recovery with targeted stimulation
Supports personalized rehabilitation programs
Reduces therapy time and improves outcomes

Technical Specifications

Model: KM-560
Channels: 4 Channel EMG Biofeedback + 4 Channel Stimulation Output
Therapy Modes: EMG Biofeedback, ETS (EMG Triggered Stimulation), NMES, FES, TENS
Display: 7-inch TFT LCD Touchscreen (High Resolution)
EMG Measuring Range: 0 â€“ 1000 ÂµV
EMG Sensitivity: â‰¤ 1 ÂµV
Stimulation Frequency: 1 â€“ 120 Hz
Pulse Width: 50 â€“ 450 Âµs
Output Intensity: 0 â€“ 100 mA Adjustable
ETS Function: EMG Signal-Based Automatic Stimulation Trigger
Programs: 20+ Pre-set Programs + Custom Modes
EMG Functions: Quick Test, Standard EMG Analysis, Biofeedback Training
Data Storage: Patient Records & Therapy Progress Tracking
Control System: Microprocessor-Based Touch Operation
Power Supply: AC 100â€“240V, 50/60Hz
Battery: Rechargeable Lithium Battery (Optional Backup)
Safety Features: Auto Shut-Off, Overload Protection, Patient Isolation Safety

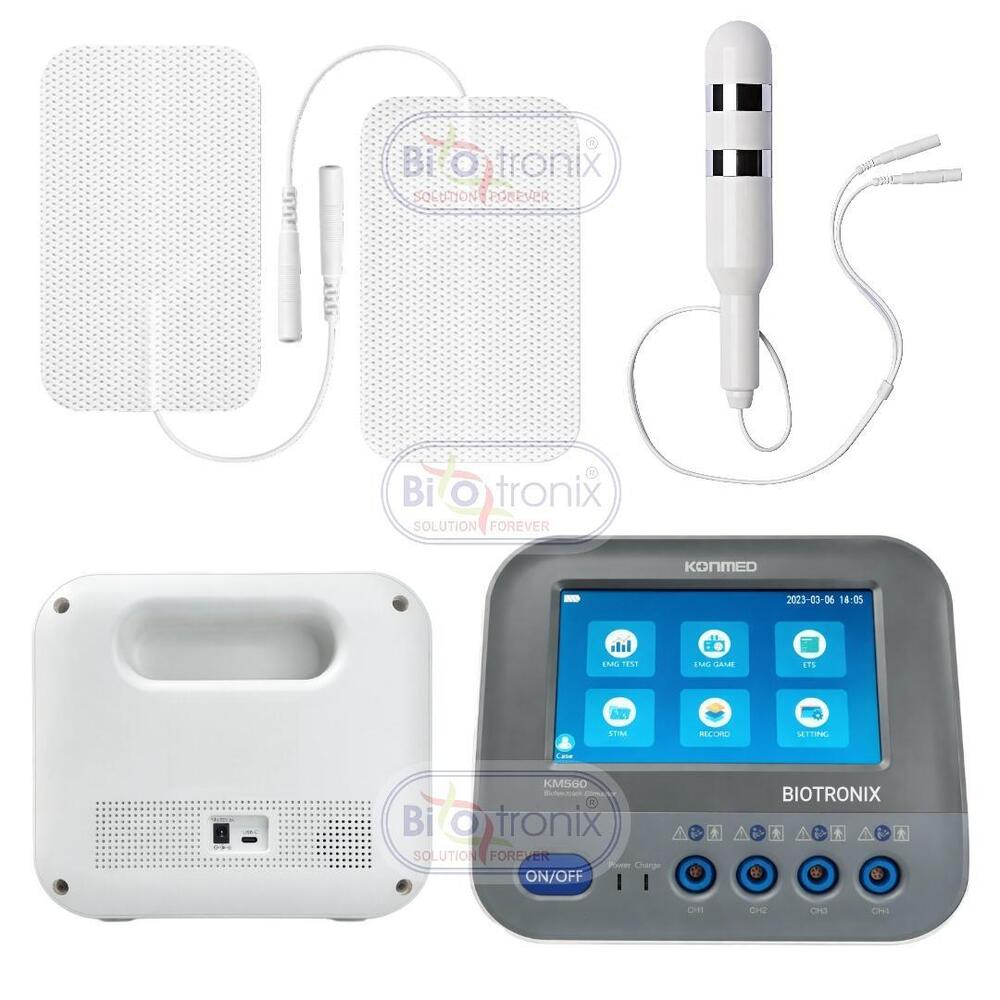

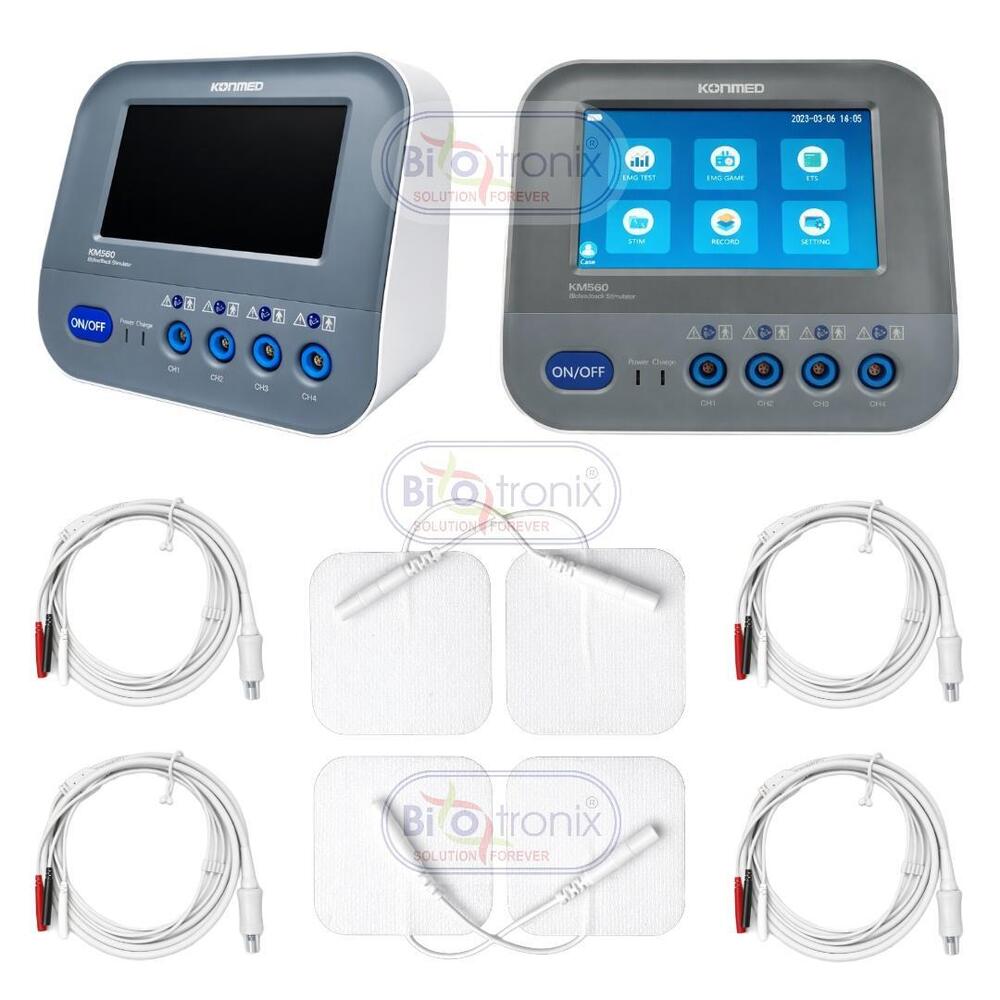

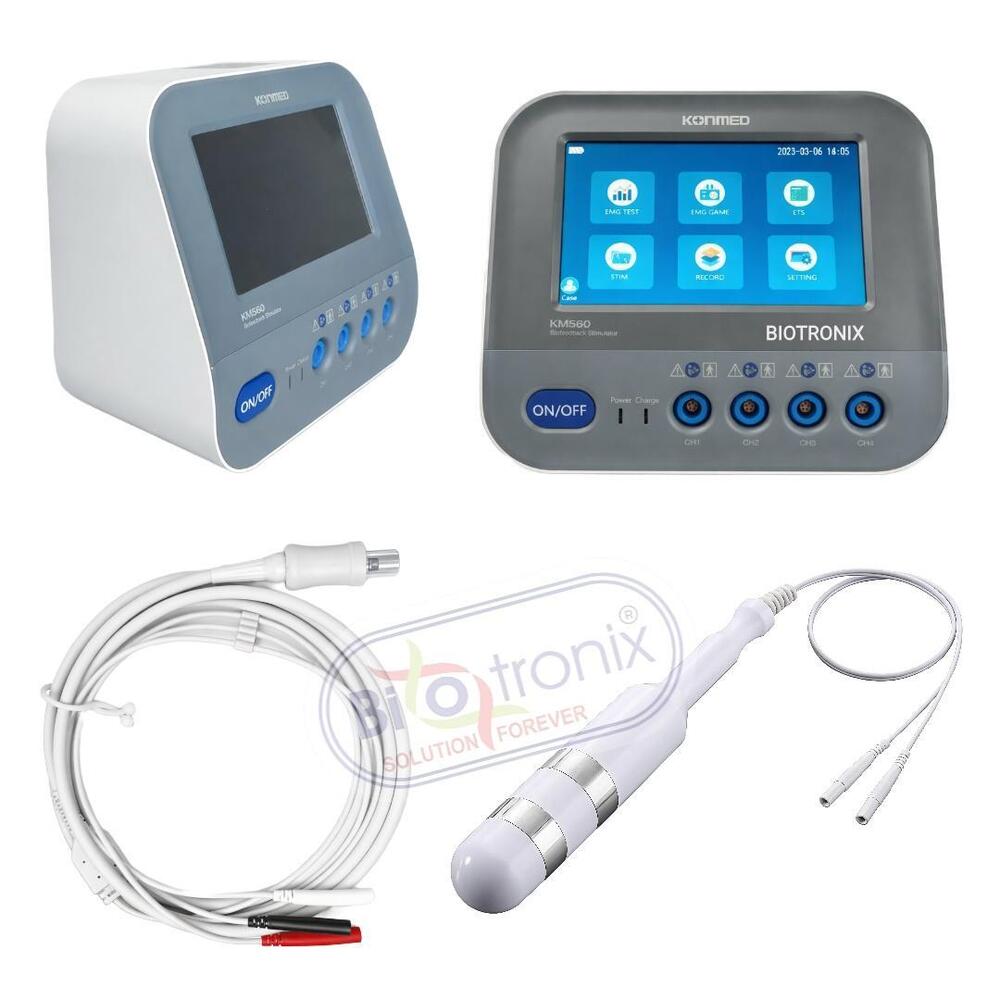

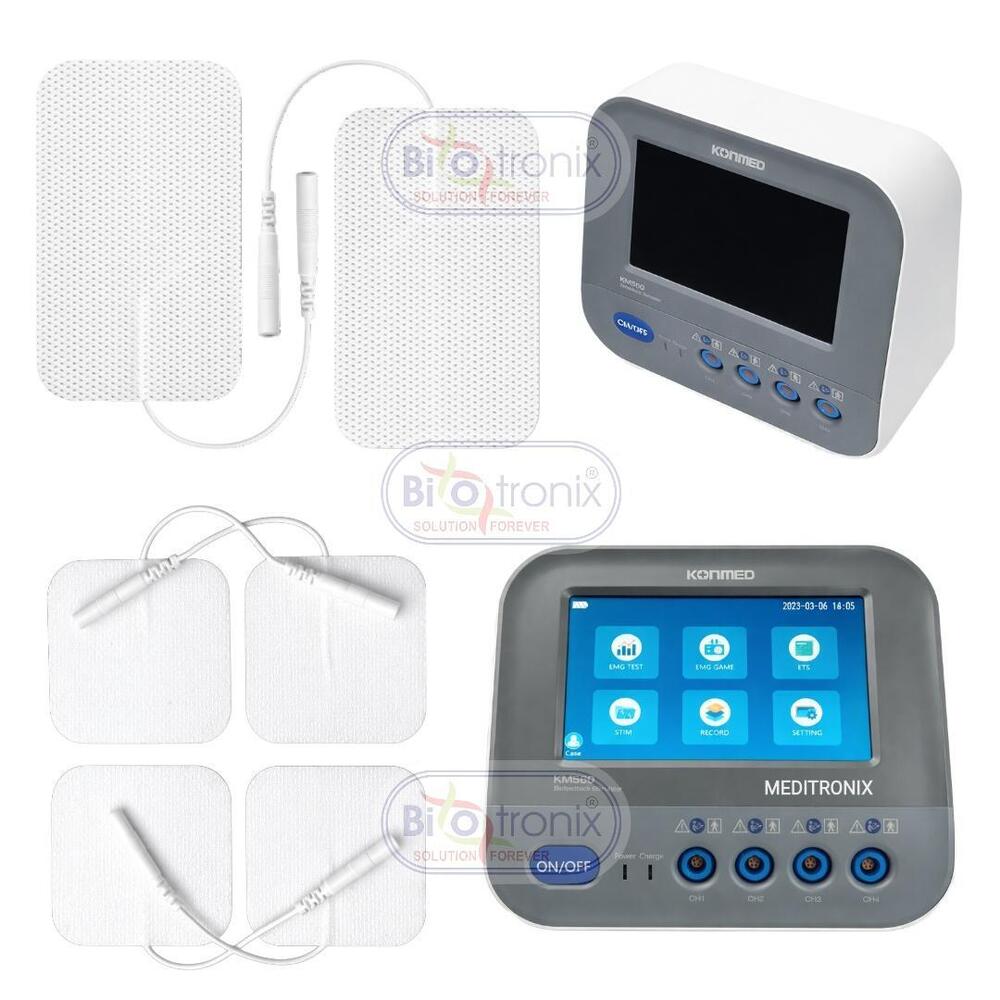

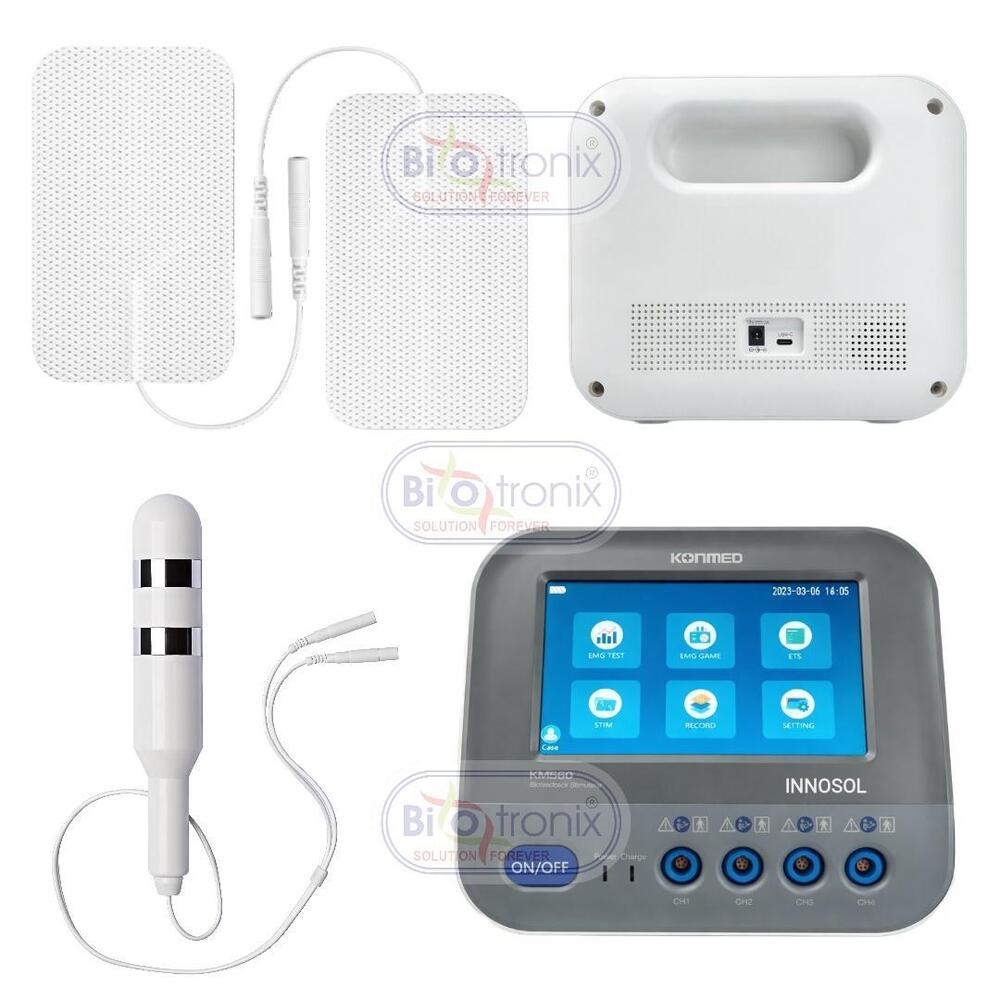

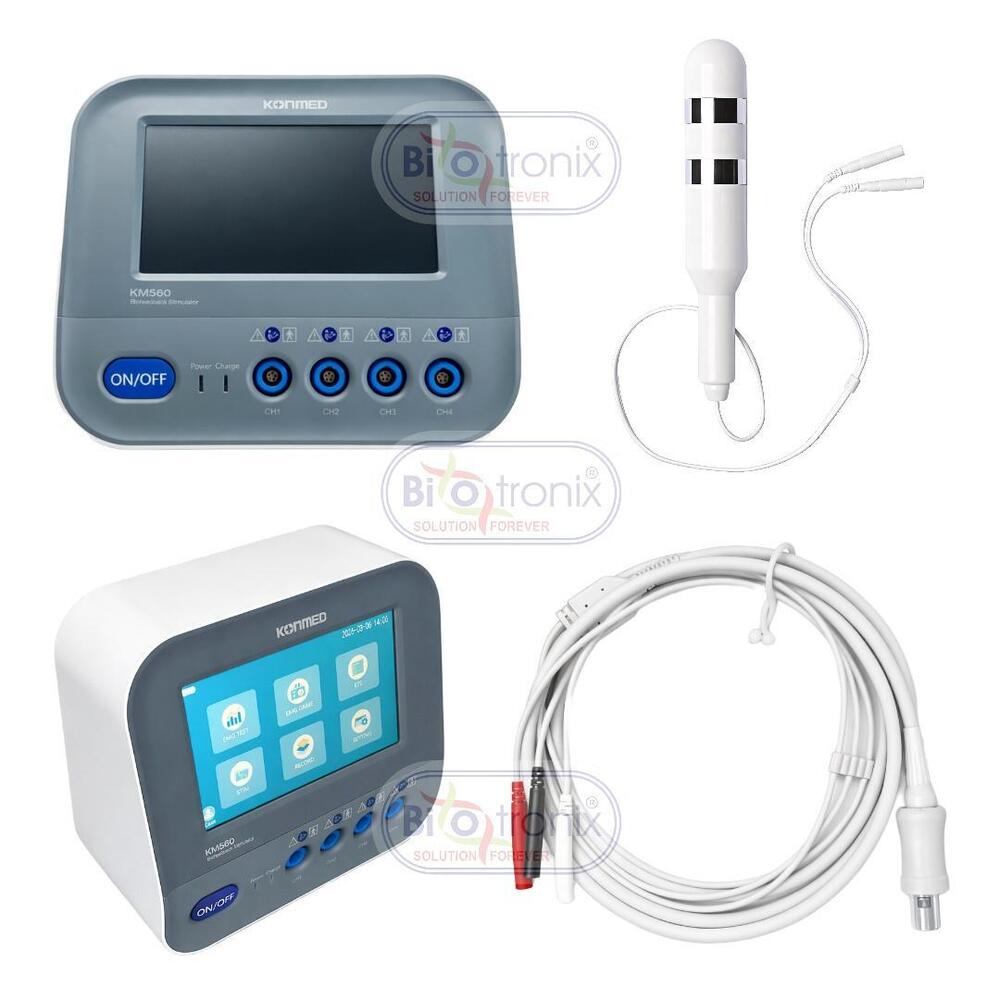

Accessories: EMG Sensors, Surface Electrodes, Optional Vaginal/Rectal Probes
Weight: Approx. 8â€“10 Kg
Portability: Portable Clinical Model
Usage: Hospital, Physiotherapy Clinic, Rehabilitation Center
Warranty: 1 Year
