Konmed KM-560 4 Channel Biofeedback System for Therapy
Konmed KM-560 4 Channel Biofeedback System for Therapy
Konmed KM-560 4 Channel Biofeedback System for Therapy
Konmed KM-560 4 Channel Biofeedback System for Therapy
Konmed KM-560 4 Channel Biofeedback System for Therapy
Konmed KM-560 4 Channel Biofeedback System for Therapy
Konmed KM-560 4 Channel Biofeedback System for Therapy
Konmed KM-560 4 Channel Biofeedback System for Therapy
Konmed KM-560 4 Channel Biofeedback System for Therapy
Konmed KM-560 4 Channel Biofeedback System for Therapy
Konmed KM-560 4 Channel Biofeedback System for Therapy
Konmed KM-560 4 Channel Biofeedback System for Therapy

Konmed KM-560 4 Channel Biofeedback System for Therapy

Price 200000.0 INR/ Piece

MOQ : 1 Piece

Konmed KM-560 4 Channel Biofeedback System for Therapy Specification

  • Noise Level
  • Rehab Center Biofeedback Equipment db
  • Size
  • 25
  • Wall Mounted
  • EMG Waveform Analysis Machine
  • Portable
  • yes
  • Lighting Type
  • Sports Rehabilitation EMG Machine
  • Power Consumption
  • Power Supply: AC Power / Rechargeable Lithium Battery support Watt (W)
  • Function
  • Standard EMG Test (muscle activity assessment) Quick EMG Assessment (fast screening mode) EMG Biofeedback Training & Interactive Gaming
  • Condition
  • Visual touch screen interface for easy navigation
  • Adhesive Type
  • Multi Muscle Training Biofeedback Device
  • Operating Type
  • Automatic / Microprocessor Controlled (Digital Touchscreen Operated)
  • Set Contains
  • Vaginal / Rectal Probe (for Pelvic Floor Therapy-optional)
  • Feature
  • 7-inch TFT LCD Touch Screen with real-time waveform display
  • Magnification Power
  • Not Applicable mm
  • Shape
  • square
  • Operation Mode
  • EMG Biofeedback, ETS, NMES, FES
  • Use
  • Clinical-grade design for hospital and rehab center use
  • Power
  • AC Power / Rechargeable support Volt (v)
  • Equipment Type
  • KM-560
  • Application
  • Stroke Rehabilitation (CVA Recovery)
  • Accuracy
  • High precision EMG signal detection with reliable and stable output mg
  • Warranty
  • 1 year
  • Color
  • more
  • Voltage
  • AC 100V-240V, 50/60 Hz Statampere (sA)
  • Storage Instructions
  • Patient data storage & history tracking
  • Real-Time Operation
  • Yes Week
  • Suitable For Use
  • physiotherapy
  • Technology
  • Combination of EMG Biofeedback + Neuromuscular Electrical Stimulation
  • Material
  • EMG Biofeedback Training & Interactive Gaming
  • Dimension (L*W*H)
  • 15, 20, 25 Inch (in)
  • Capacity
  • ETS (EMG-Triggered Stimulation-auto-stimulation on threshold) Kg
  • Attributes
  • EMG Therapy Equipment India
  • Recyclable
  • No
  • Recommended For
  • Nerves, Shoulder, Joints, Cervical, Back, Muscles
  • Treatment
  • Treatment record recall system
  • Measuring Range
  • 0-1000- V (microvolts) Rankine
  • Pressure Range
  • Not Applicable
  • Frequency Range
  • 1-120 Hz Hertz (HZ)
  • Usage
  • Multi-channel output for simultaneous therapy
  • Age Group
  • Infants, Children, Adults, Women, Elders
  • Display
  • Touch Screen
  • Power Source
  • Electric
  • Weight
  • 10 Kilograms (kg)


Konmed KM-560 4 Channel Biofeedback System for Therapy Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • FOB Port
  • New Delhi
  • Payment Terms
  • Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)
  • Supply Ability
  • 1 Piece Per Day
  • Delivery Time
  • 1 Week
  • Sample Available
  • Yes
  • Sample Policy
  • Free samples available with shipping and taxes paid by the buyer
  • Packaging Details
  • as per communication
  • Main Export Market(s)
  • North America, Asia, Australia, Central America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • as per communication customer


About Konmed KM-560 4 Channel Biofeedback System for Therapy

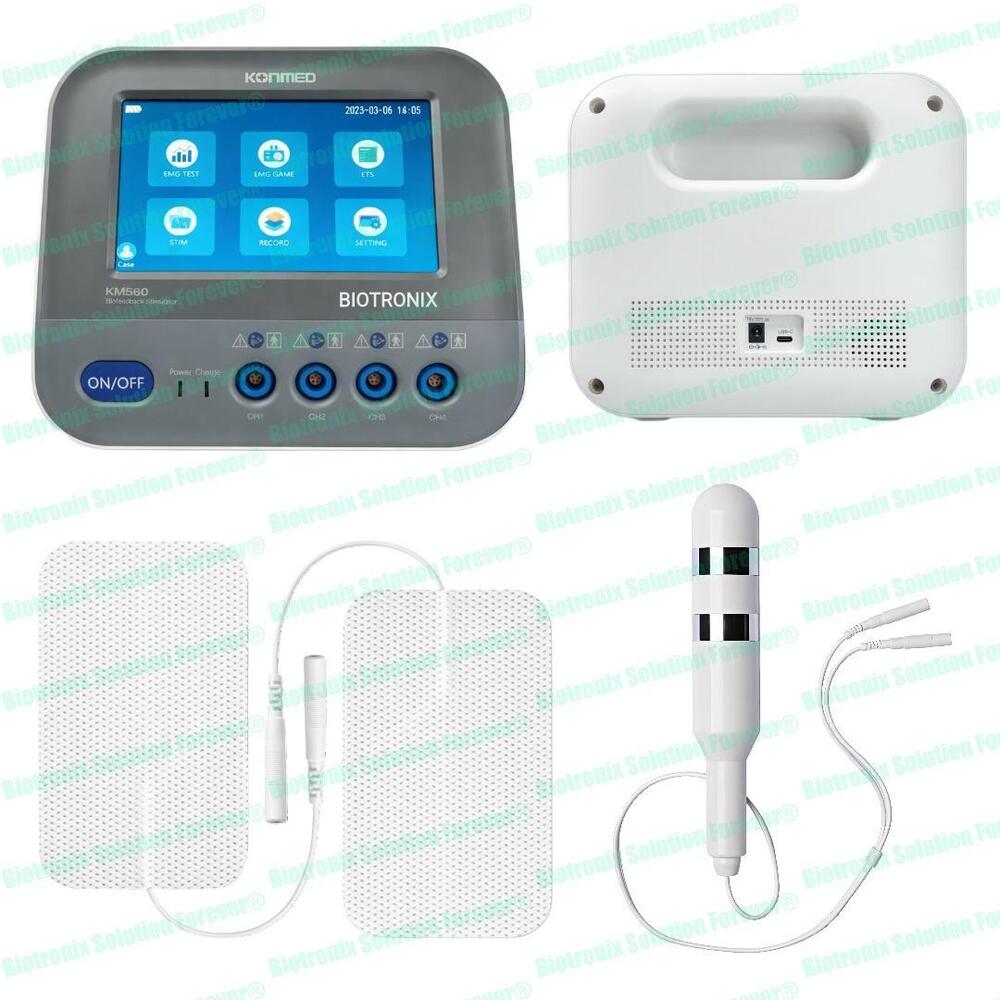

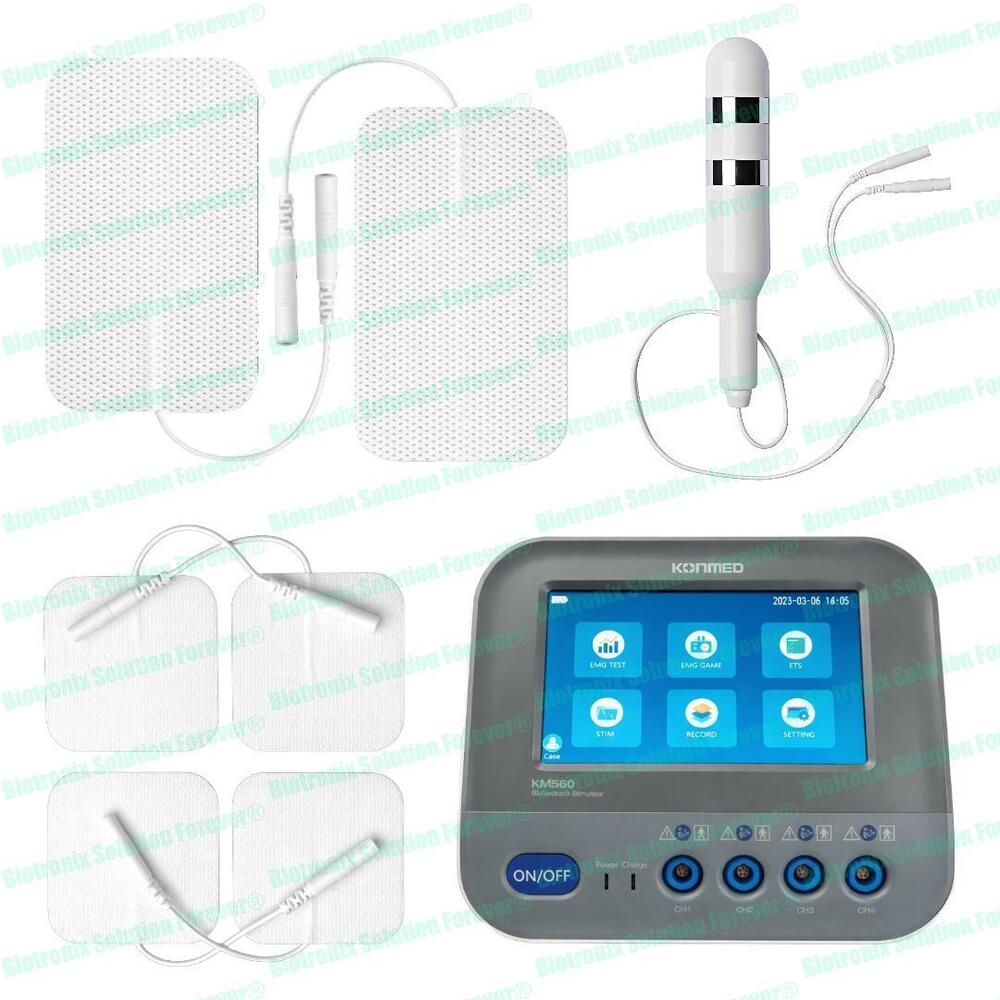

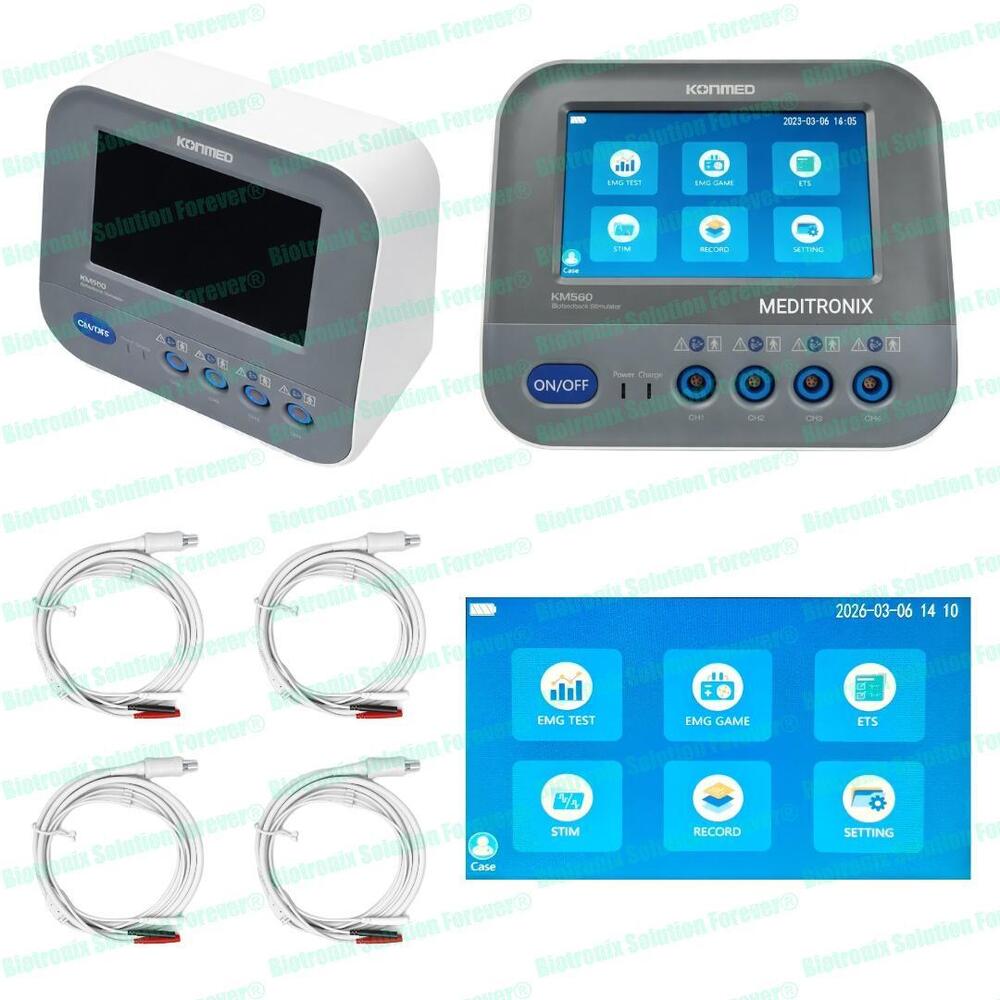

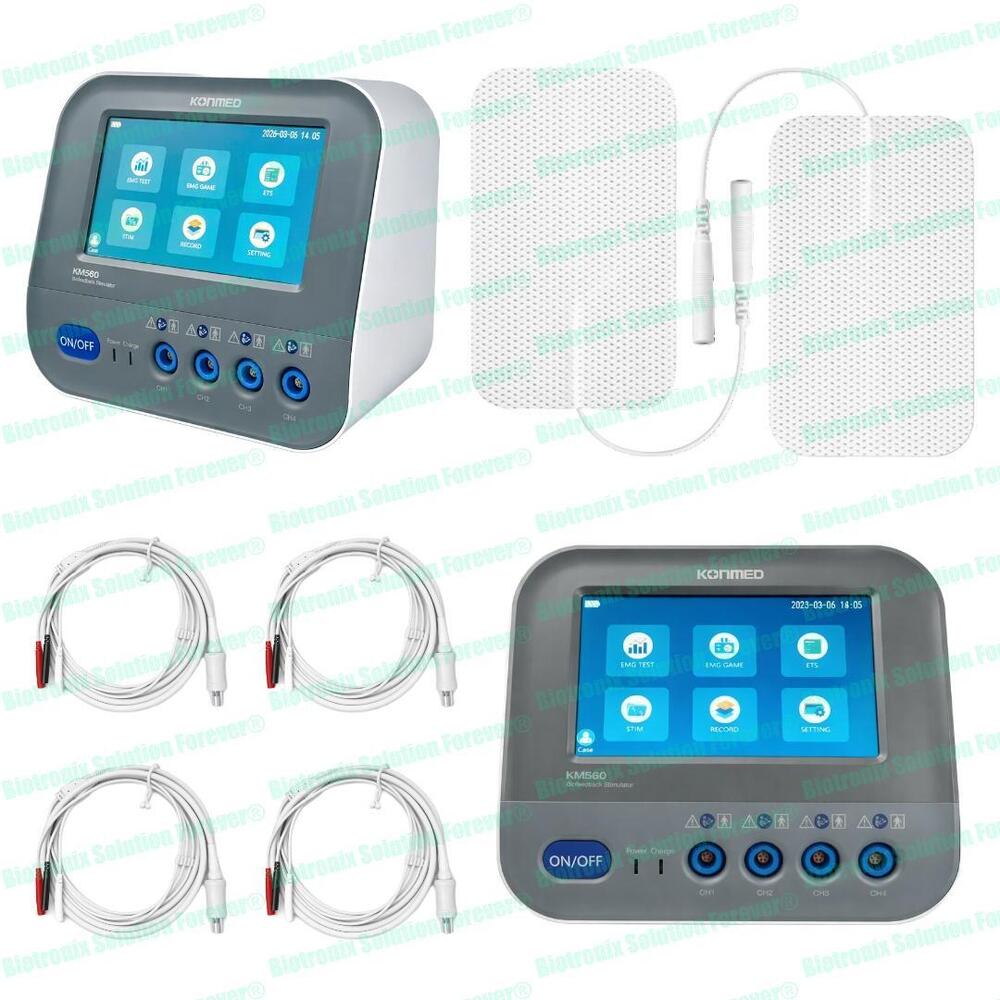

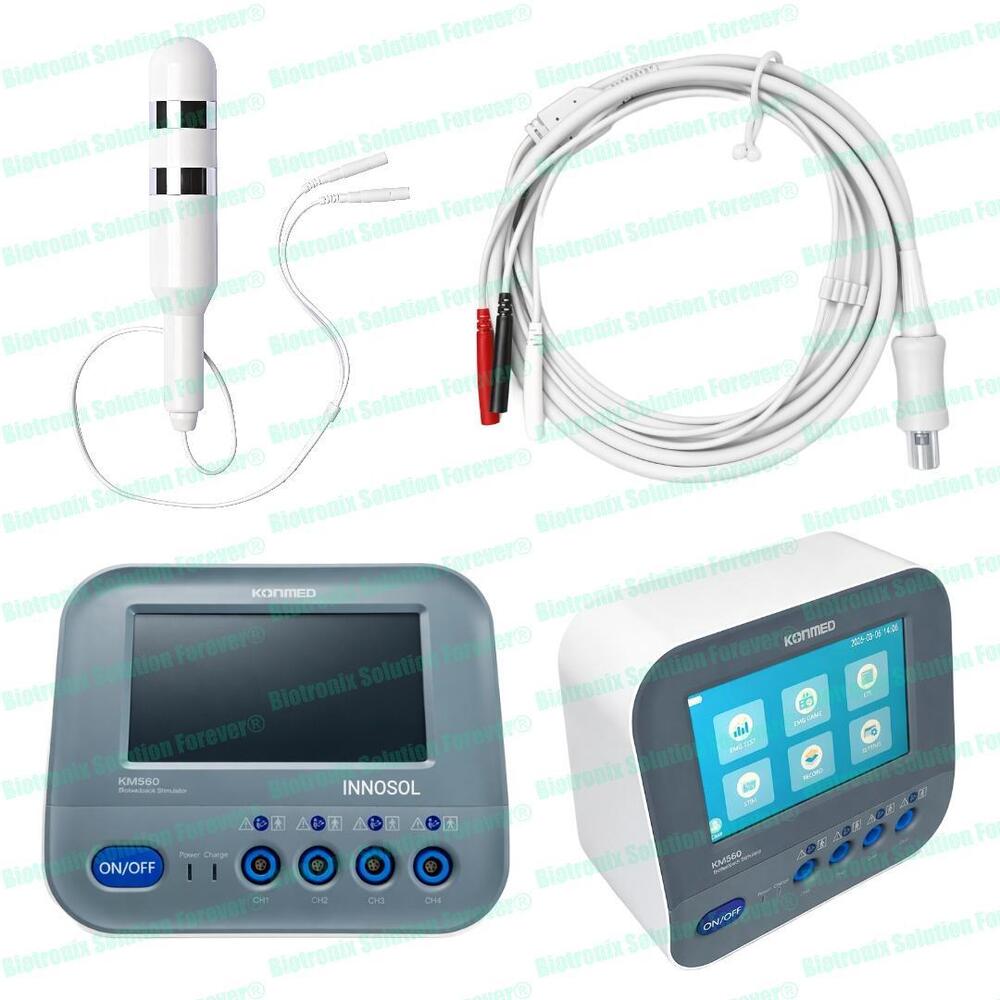

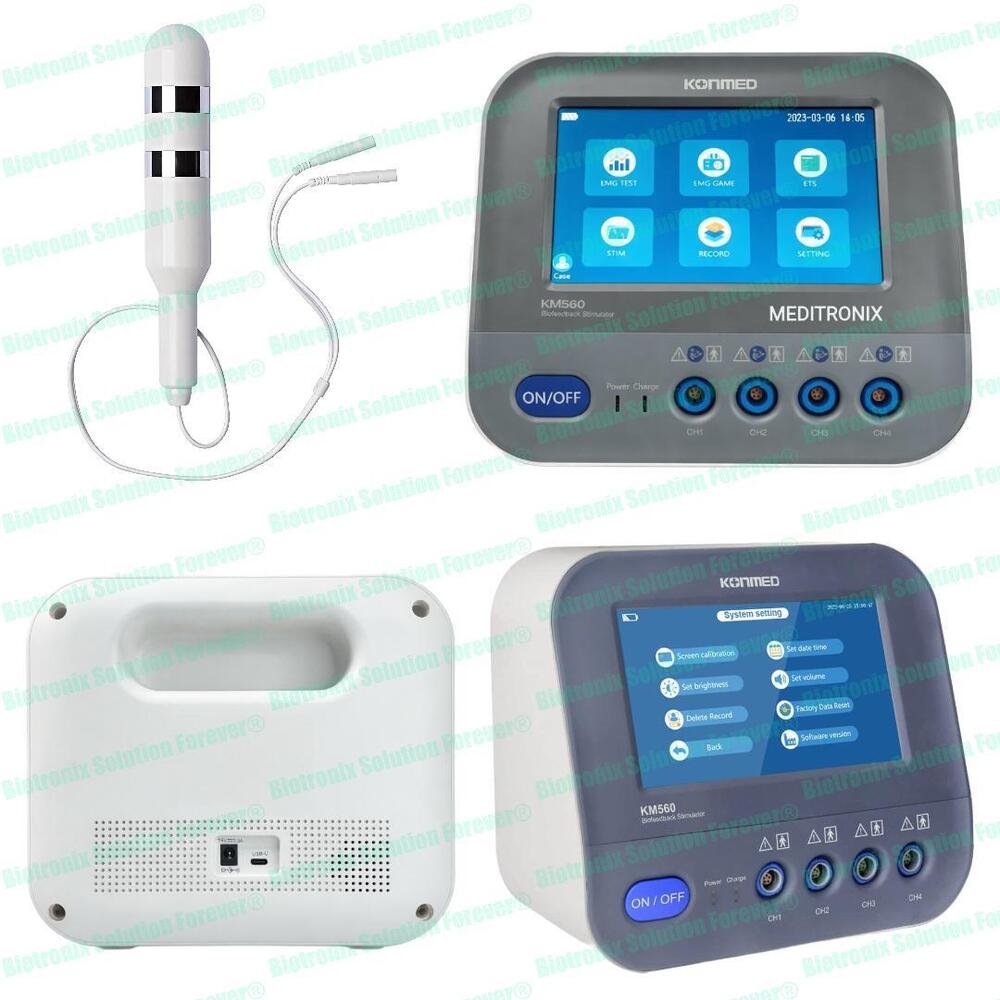

Biotronix Konmed KM-560 4 Channel Biofeedback System for Therapy

The Konmed KM-560 4 Channel Biofeedback System is a clinically advanced solution designed to deliver accurate biofeedback-driven therapy for effective rehabilitation. Built with a powerful 4-channel architecture, this system enables simultaneous monitoring and treatment of multiple muscle groups, making it ideal for comprehensive physiotherapy applications.

This intelligent therapy system enhances clinical outcomes through real-time EMG monitoring and integrated electrical stimulation. The KM-560 supports multiple therapy modes, including ETS, NMES, FES, and TENS, allowing therapists to design customized rehabilitation programs for faster and more efficient recovery.

Key Features

  • 4-channel biofeedback system for multi-muscle therapy
  • Real-Time EMG Monitoring with waveform display
  • Multi Therapy Modes: EMG, ETS, NMES, FES, TENS
  • EMG Triggered Stimulation (ETS) for active participation
  • 7-inch TFT LCD Touchscreen with user-friendly interface
  • Interactive Biofeedback Training Programs
  • Microprocessor-controlled system for stable performance
  • Pre-set + Custom Therapy Programs
  • Patient Data Storage & Progress Tracking
  • Compact, Portable, and Clinical-Grade Design

Applications

  • Neurological Rehabilitation (Stroke, Paralysis)
  • Muscle Re-Education & Strength Training
  • Pelvic Floor Therapy (Urinary Incontinence)
  • Dysphagia (Swallowing Therapy)
  • Post-Surgical Rehabilitation
  • Orthopedic Physiotherapy
  • Sports Injury Recovery

Benefits

  • Enables precise muscle activity monitoring
  • Improves neuromuscular coordination and control
  • Accelerates recovery with integrated therapy modes
  • Enhances patient engagement through real-time feedback
  • Supports customized and progressive rehabilitation plans
  • Reduces recovery time and improves clinical efficiency

Technical Specifications

  • Model: KM-560
  • Channels: 4 Channel EMG Biofeedback + 4 Channel Stimulation Output
  • Therapy Modes: EMG Biofeedback, ETS (EMG Triggered Stimulation), NMES, FES, TENS
  • Display: 7-inch TFT LCD Touchscreen (High Resolution)
  • EMG Measuring Range: 0 to 1000 V
  • EMG Sensitivity: < 1 V
  • Stimulation Frequency: 1120 Hz
  • Pulse Width: 50450 s
  • Output Intensity: 0100 mA Adjustable
  • Programs: 20+ Pre-set Programs + Custom Therapy Modes
  • EMG Functions: Quick Test, Standard EMG Analysis, Biofeedback Training
  • Trigger Mode: EMG Triggered (ETS) + Manual Mode
  • Data Storage: Patient Records & Therapy Progress Tracking
  • Control System: Microprocessor-Based Touch Operation
  • Power Supply: AC 100-240V, 50/60Hz
  • Battery: Rechargeable Lithium Battery (Optional Backup)
  • Safety Features: Auto Shut-Off, Overload Protection, Patient Isolation Safety
  • Accessories: EMG Sensors, Surface Electrodes, Optional Vaginal/Rectal Probes
  • Weight: Approx. 810 kg
  • Portability: Portable Clinical Model
  • Usage: Hospital, Physiotherapy Clinic, Rehabilitation Center
  • Warranty: 1 Year


Konmed KM-560 4-channel biofeedback system for therapy, physiotherapy biofeedback machine India, EMG electrotherapy device with ETS, NMES, FES, TENS, rehabilitation equipment for muscle training, stroke rehab biofeedback machine, pelvic floor therapy EMG device, electrotherapy combo unit physiotherapy, neuromuscular rehabilitation equipment, advanced physiotherapy machine India
