About KM-580 EMG Triggered Stimulation Device for Pelvic, Swallowing & Sports Training

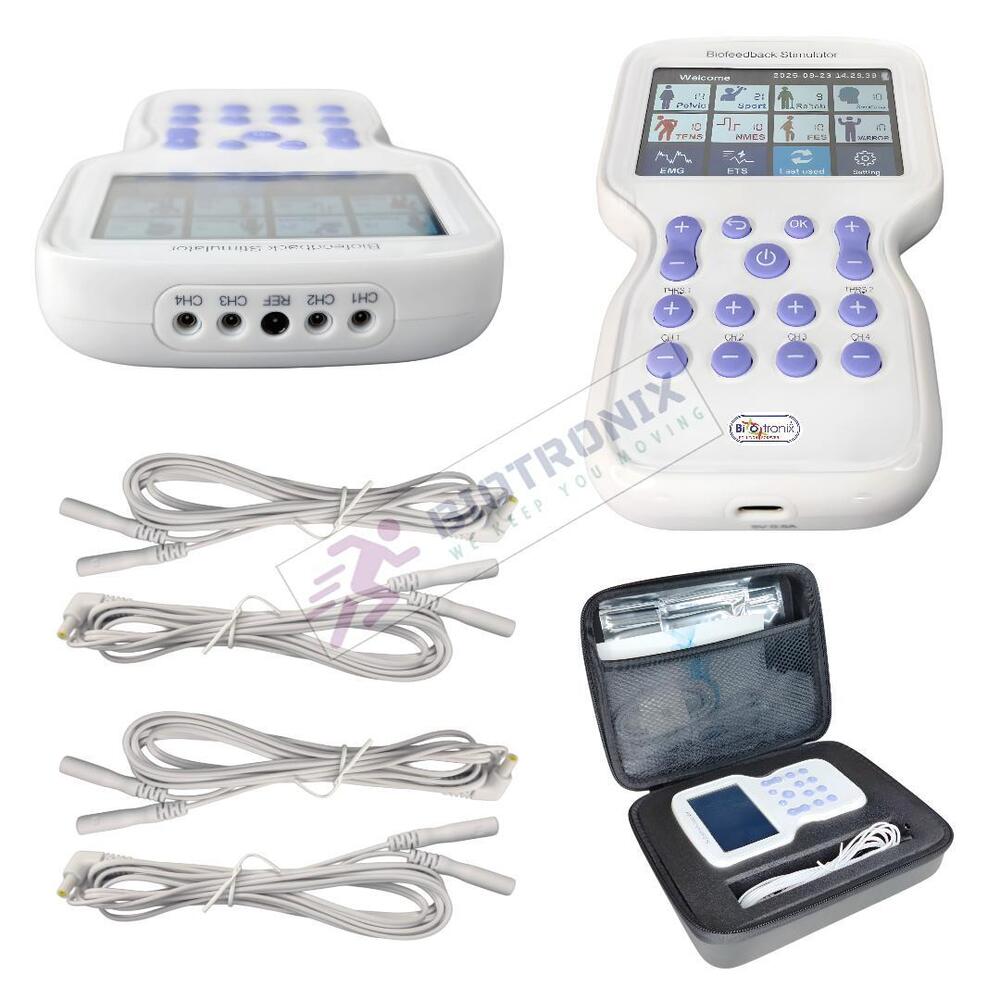

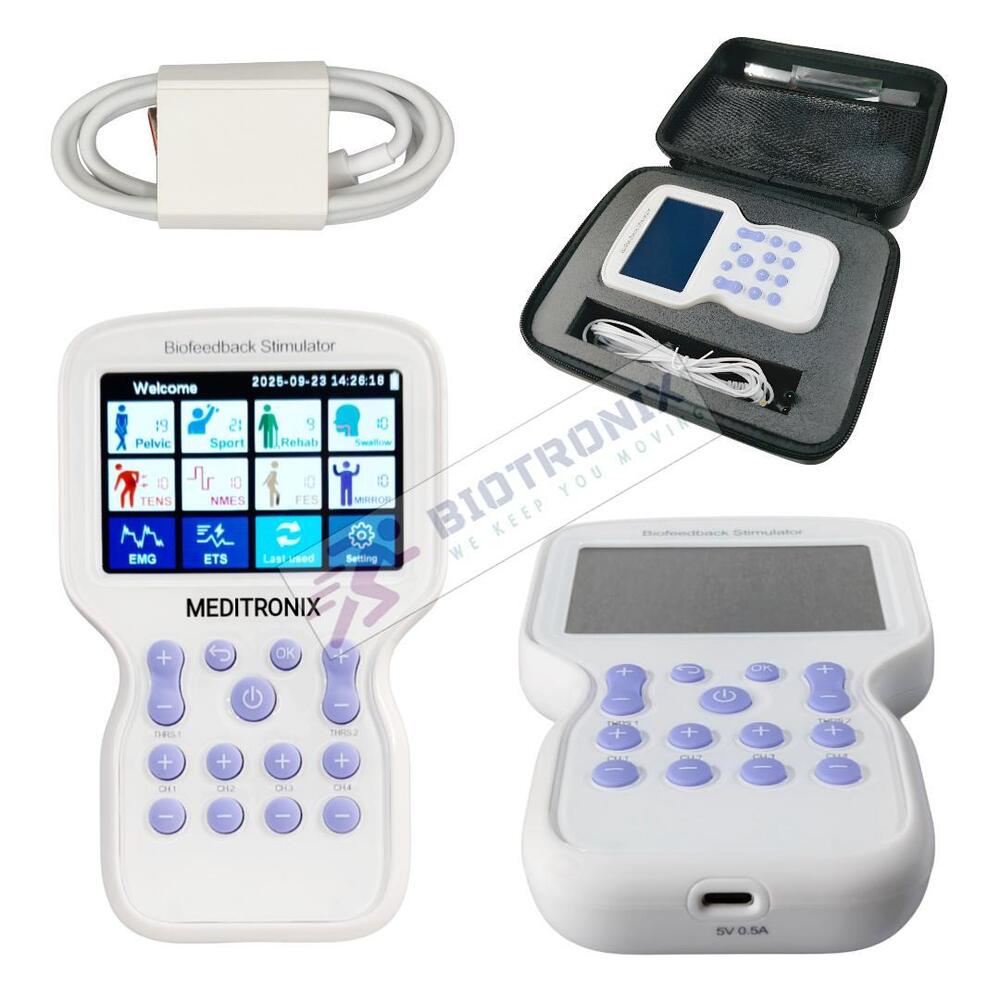

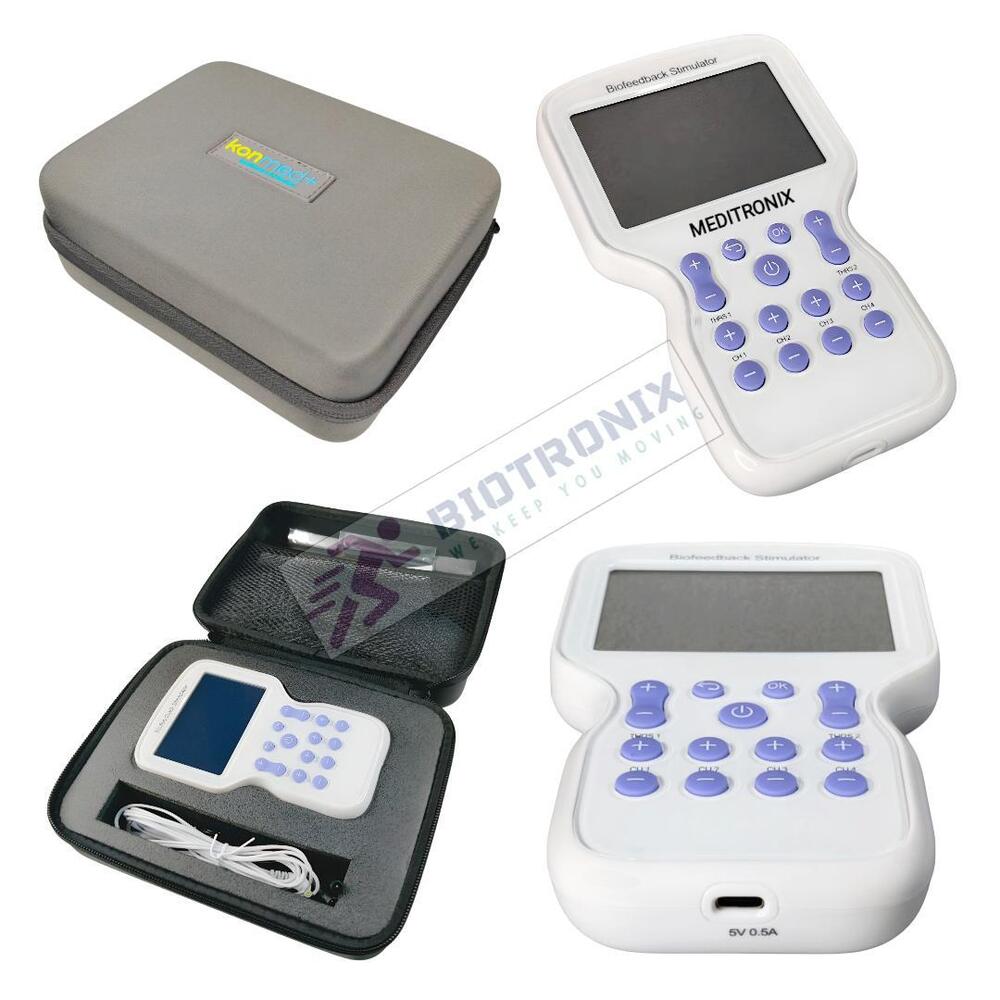

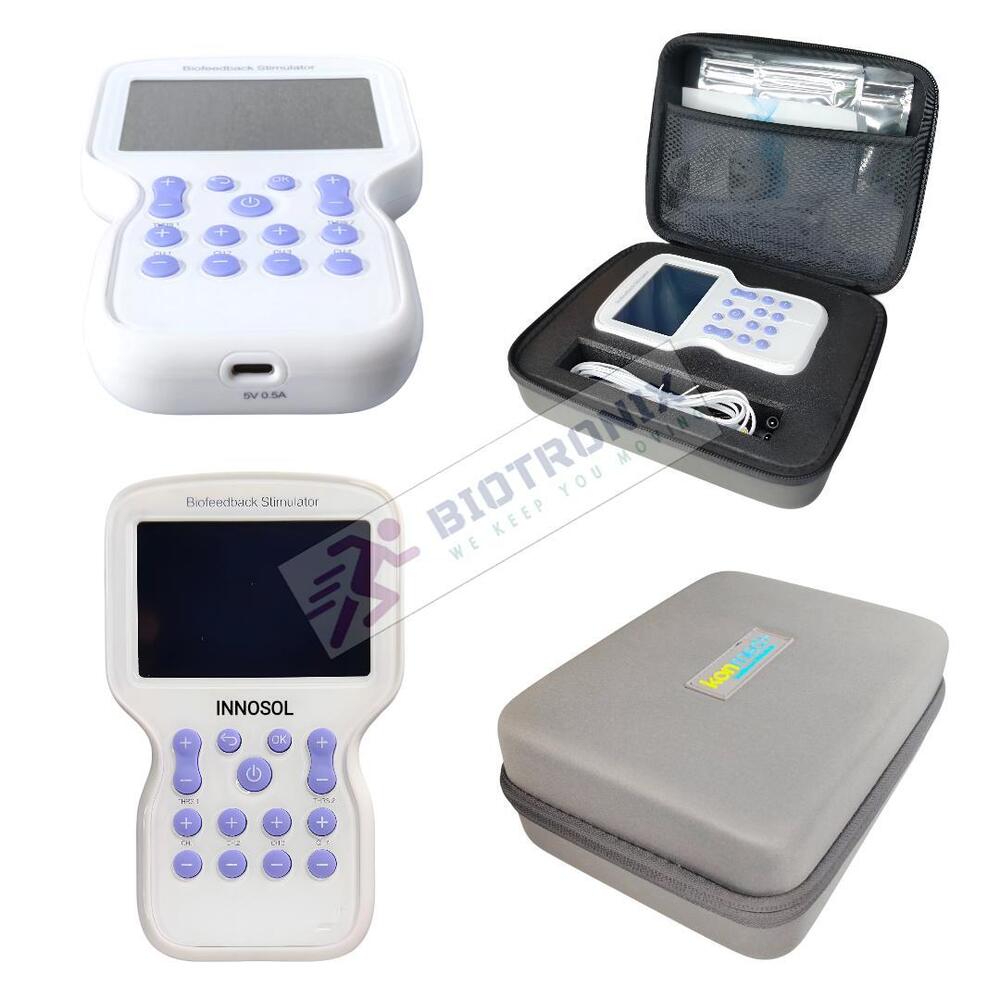

Biotronix KM-580 EMG Triggered Stimulation Device for Pelvic, Swallowing & Sports Training

The KM-580 EMG Triggered Stimulation Device is an advanced physiotherapy system designed to assist in neuromuscular re-education, pelvic floor rehabilitation, swallowing therapy, and sports training.
This multi-functional device integrates EMG biofeedback, ETS (EMG Triggered Stimulation), NMES/FES, and TENS modes in one compact unit—helping clinicians deliver accurate, data-driven therapy with real-time muscle activation feedback.

With its touch display, rechargeable battery, PC connectivity, and report printing features, the KM-580 is ideal for physiotherapy clinics, rehabilitation centers, hospitals, and research institutions.

Key Features

• Dual-channel EMG biofeedback with real-time signal display

• EMG-Triggered Stimulation (ETS) for precise muscle re-education

• Multiple therapy modes: EMG, ETS, NMES, FES, and TENS

• Designed for pelvic floor training, swallowing (dysphagia) rehabilitation, and sports strengthening programs

• Touchscreen control with intuitive interface

• Work/Rest assessment and fatigue monitoring

• Data logging with patient progress tracking

• PC connectivity for data transfer and report printing

• Rechargeable lithium-ion battery for portability

• Lightweight, durable, and clinically approved design

Applications

• Pelvic floor muscle training for stress and urge incontinence

• Swallowing rehabilitation for dysphagia and neurological recovery

• Muscle re-education after stroke or nerve injury

• Neuromuscular control and strengthening in sports training

• Post-surgical rehabilitation and muscle activation

• Biofeedback-assisted physiotherapy and occupational therapy

• Shoulder, knee, and hand coordination training

Benefits

• Real-time visual and auditory EMG feedback improves patient awareness

• Customizable thresholds and treatment parameters for specific needs

• Enhanced patient motivation through mirror and game therapy options

• Portable and easy to operate for both clinic and bedside use

• Accurate EMG data ensures objective assessment and reporting

• Reduces therapist workload with preset templates and automated workflows

Technical Specifications

EMG Biofeedback

• Channels: 2-channel surface EMG

• Input Type: Differential, surface electrodes

• Frequency Bandwidth: 20–500 Hz (±10%)

• Sampling Rate: ≥1000 samples/sec/channel

• Input Impedance: ≥100 MΩ

• Noise Level: ≤1 µV RMS

• Display: Real-time EMG waveform, bar graph, numeric values

• Threshold: Manual/auto adjustable, adaptive feedback

ETS (EMG Triggered Stimulation)

• Trigger Mode: User-defined EMG threshold

• Delay: 0–5 seconds

• On Time: 1–10 seconds

• Off Time: 1–20 seconds

• Auto Abort: Safety cutoff for signal artifacts

Electrical Stimulation (NMES/FES/TENS)

• Waveform: Symmetrical biphasic pulsed

• Amplitude: 0–120 mA (500 Ω load)

• Pulse Width: 50–400 µs adjustable

• Frequency: 1–150 Hz adjustable

• Ramp Up/Down: 0–5 seconds

• Duty Cycle: Programmable/custom

• Output Channels: 2 independent channels

User Interface & Connectivity

• Display: 4.3"–7" capacitive touch display

• Memory: Up to 1000 sessions stored

• Connectivity: USB to PC, export data in PDF/Excel

• Printing: Direct report printing via PC

• Software: EMG report management system

Power & Construction

• Power Supply: 100–240 V AC, 50/60 Hz

• Battery: Built-in rechargeable lithium-ion battery

• Battery Backup: 6–8 hours of continuous operation

• Dimensions: Approx. 210 × 120 × 55 mm

• Weight: Approx. 0.9 kg

• Safety Standard: IEC 60601-1, IEC 60601-1-2 compliant

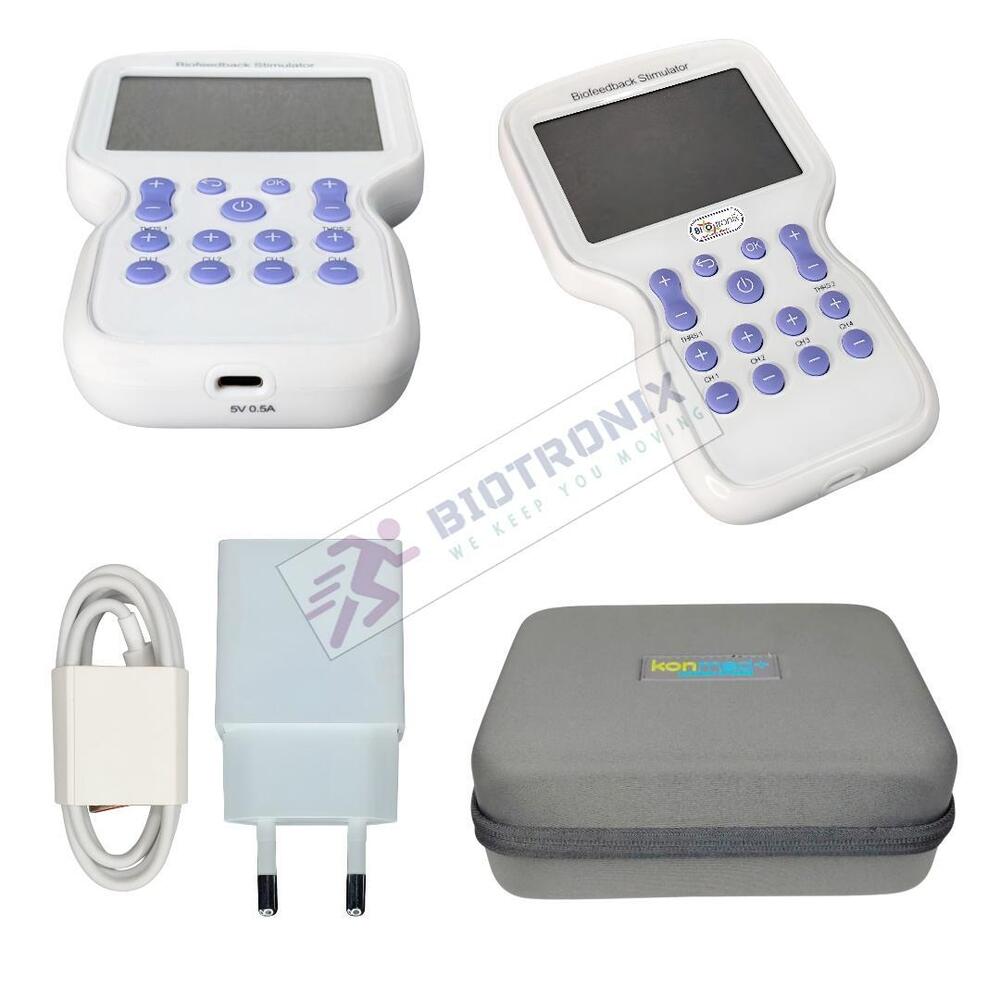

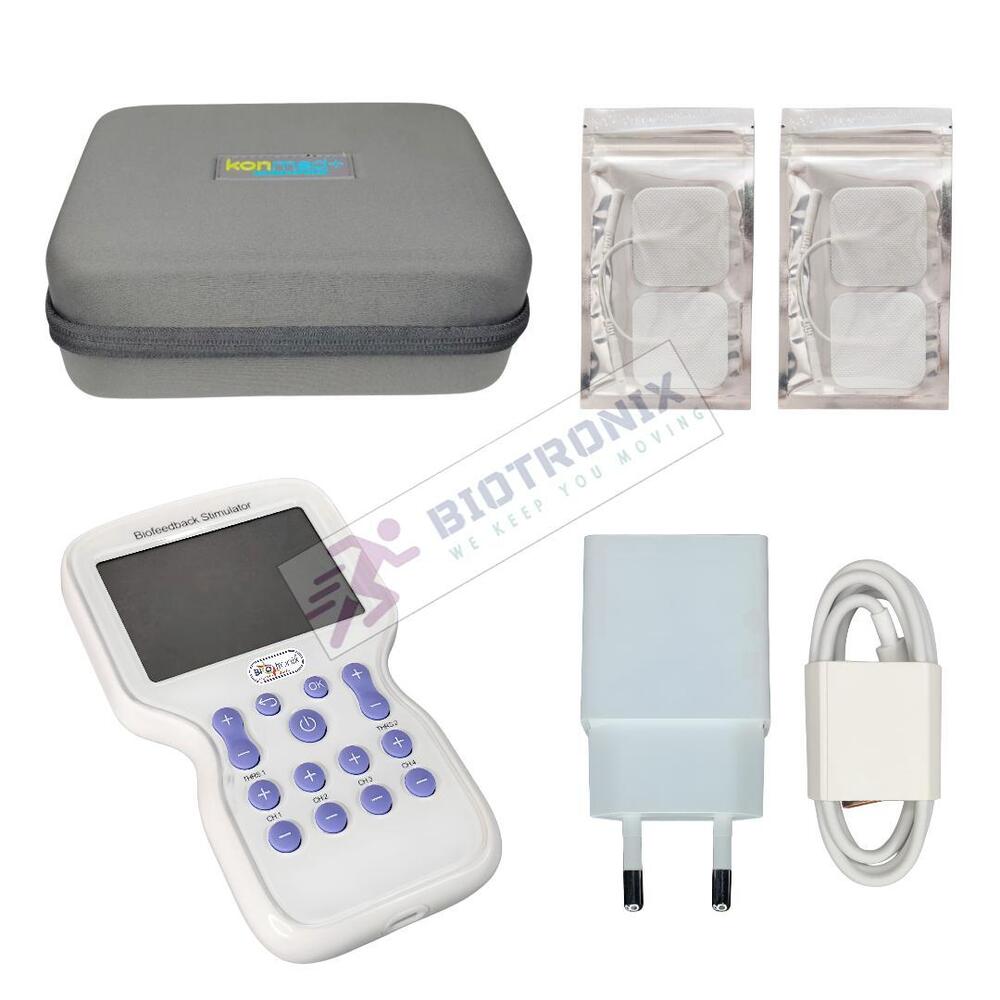

Included Accessories

• EMG electrodes (reusable and disposable)

• Stimulation electrodes and cables

• USB data cable and software

• Power adapter and user manual

• Carrying case
