About KM-580 EMG Triggered Biofeedback System for Stroke, Sports, Pain Relief and Muscle Re-Education

Biotronix KM-580 EMG Triggered Biofeedback System for Stroke, Sports, Pain Relief and Muscle Re-Education

The KM-580 EMG Triggered Biofeedback System is an advanced, dual-channel physiotherapy device designed to enhance muscle activation, coordination, and rehabilitation.
This professional system integrates EMG biofeedback, ETS (EMG Triggered Stimulation), NMES (Neuromuscular Electrical Stimulation), FES (Functional Electrical Stimulation), and TENS (Transcutaneous Electrical Nerve Stimulation)—offering a complete solution for stroke recovery, sports rehabilitation, pain management, and muscle re-education.

The KM-580 provides real-time visual and auditory EMG feedback, helping patients understand and control muscle contractions during therapy. Its touch screen interface, PC connectivity, and report generation features make it ideal for modern physiotherapy clinics and rehabilitation centers.

Key Features

• Dual-channel EMG Biofeedback with real-time waveform and bar graph display

• EMG Triggered Stimulation (ETS) for motor control re-education

• Multiple modes: EMG, ETS, NMES, FES, and TENS

• Touch screen interface for intuitive operation

• Visual and auditory feedback for improved patient motivation

• PC connectivity for session recording and report printing

• Built-in therapy templates for stroke, pain, and sports rehab

• Rechargeable battery for portable use

• Lightweight and compact for easy clinical handling

• Designed for neuro, orthopedic, and sports rehabilitation applications

Applications

• Stroke and paralysis rehabilitation

• Sports injury and muscle reconditioning programs

• Chronic and acute pain relief through TENS therapy

• Muscle strengthening and re-education post-surgery

• Neuromuscular training for coordination and control

• Orthopedic and neurological rehabilitation

• Shoulder, knee, and ankle muscle activation

• Post-trauma or post-immobilization rehabilitation

Benefits

• Promotes faster recovery through active EMG feedback

• Provides measurable and trackable therapy outcomes

• Enhances patient motivation and participation

• Reduces therapist workload with auto-feedback and templates

• Supports PC report generation for clinical records

• Portable, reliable, and easy to use in any rehab setting

• Ideal for both hospitals and physiotherapy clinics

EMG Biofeedback

• Channels: 2-channel surface EMG

• Input Type: Differential

• Frequency Range: 20–500 Hz

• Sampling Rate: ≥1000 samples/sec/channel

• Input Impedance: ≥100 MΩ

• Noise Level: ≤1 µV RMS

• Feedback: Visual and audio feedback modes

• Display: Waveform, numeric, and bar format

• Threshold: Auto and manual adjustable

ETS (EMG Triggered Stimulation)

• Trigger: EMG threshold level

• Delay: 0–5 seconds adjustable

• On Time: 1–10 seconds

• Off Time: 1–20 seconds

• Auto Abort: Safety cutoff on artifact detection

NMES/FES/TENS Stimulation

• Waveform: Symmetrical biphasic pulse

• Output Intensity: 0–120 mA (500 Ω load)

• Pulse Width: 50–400 µs adjustable

• Frequency: 1–150 Hz

• Ramp Up/Down: 0–5 seconds adjustable

• Output Channels: 2 independent channels

 Interface & Connectivity

• Display: 4.3"–7" color touch screen

• Connectivity: USB to PC for data export

• Software: EMG analysis and report generator

• Memory: Up to 1000 patient sessions

• Language: English

Power & Design

• Power Supply: 100–240 V AC, 50/60 Hz

• Battery: Rechargeable lithium-ion

• Battery Backup: 6–8 hours continuous use

• Weight: Approx. 0.9 kg

• Dimensions: 210 × 120 × 55 mm

• Safety: IEC 60601-1 and IEC 60601-1-2 compliant

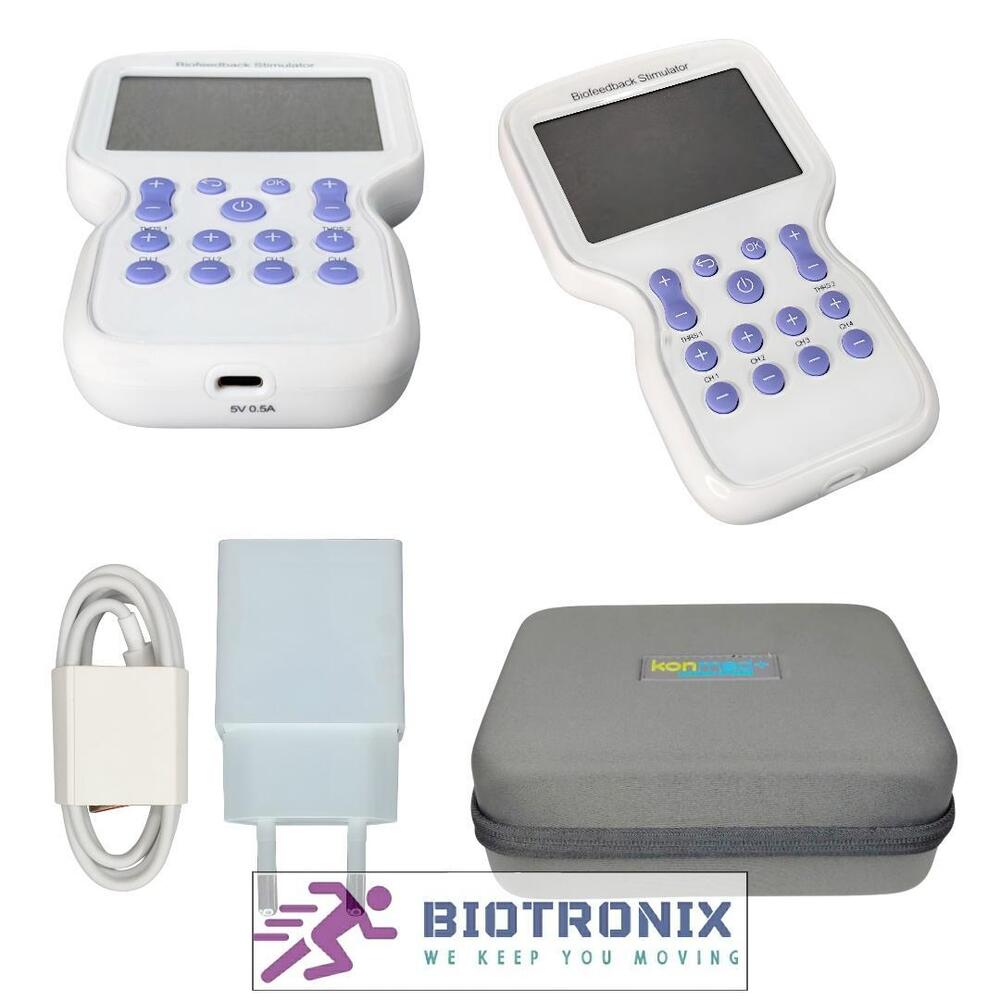

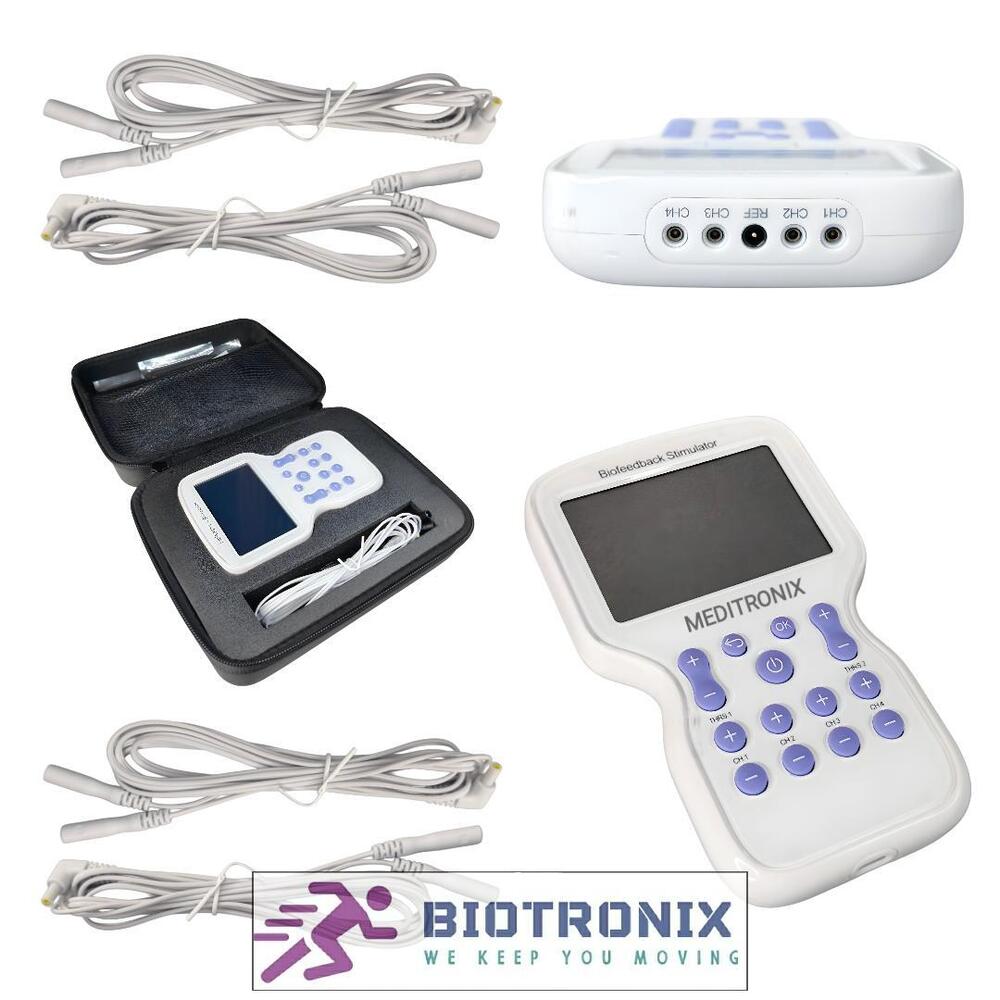

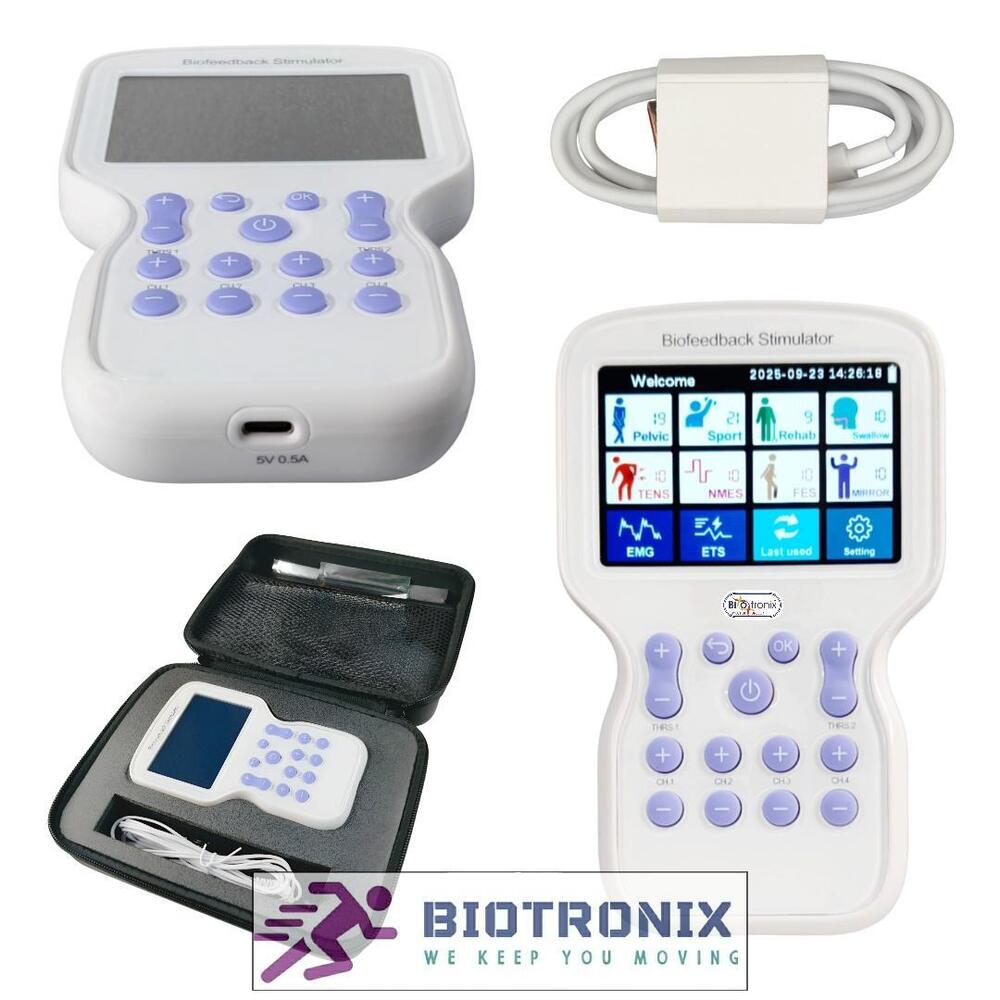

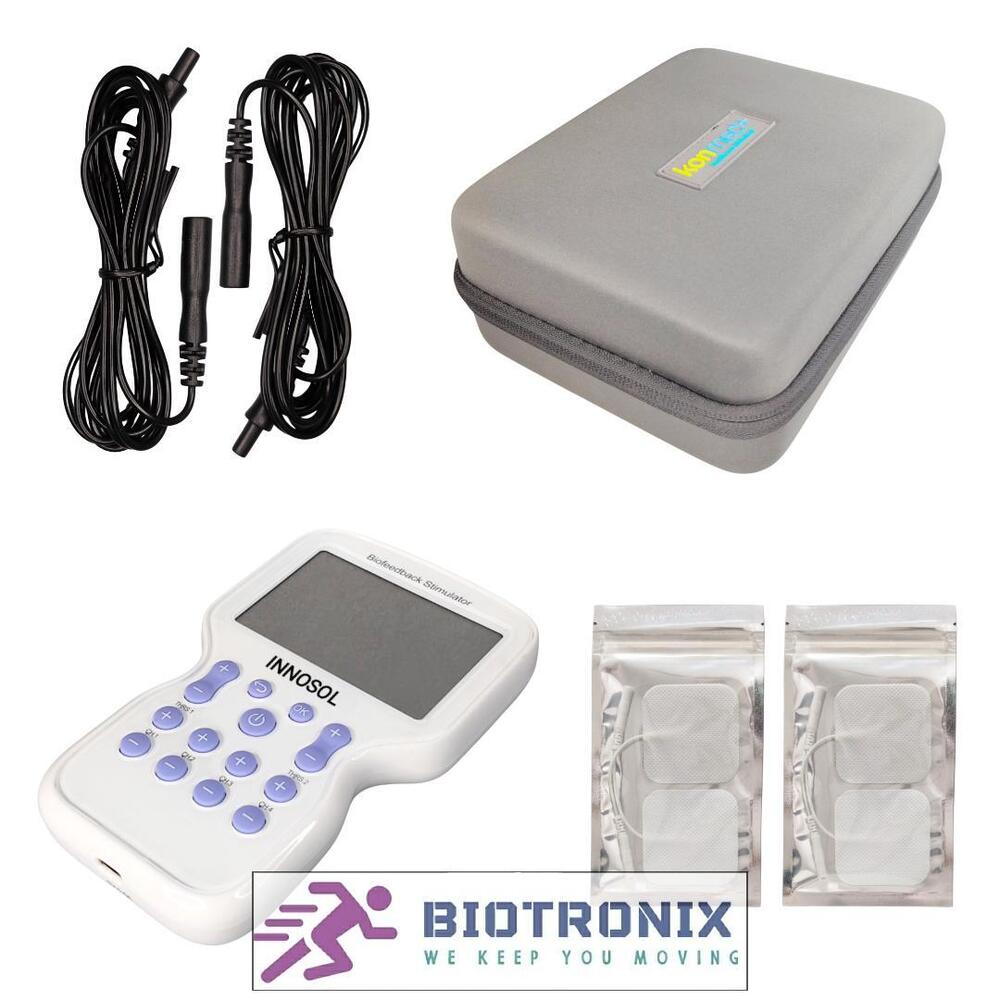

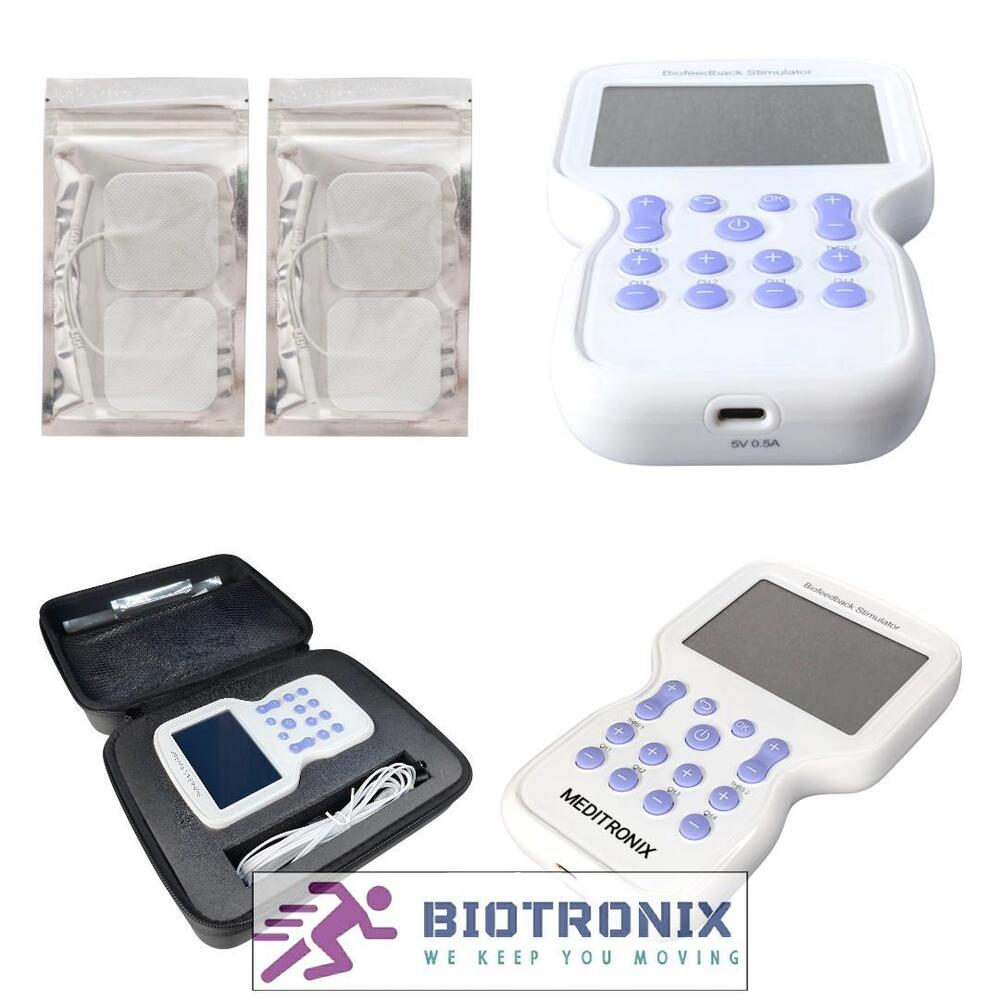

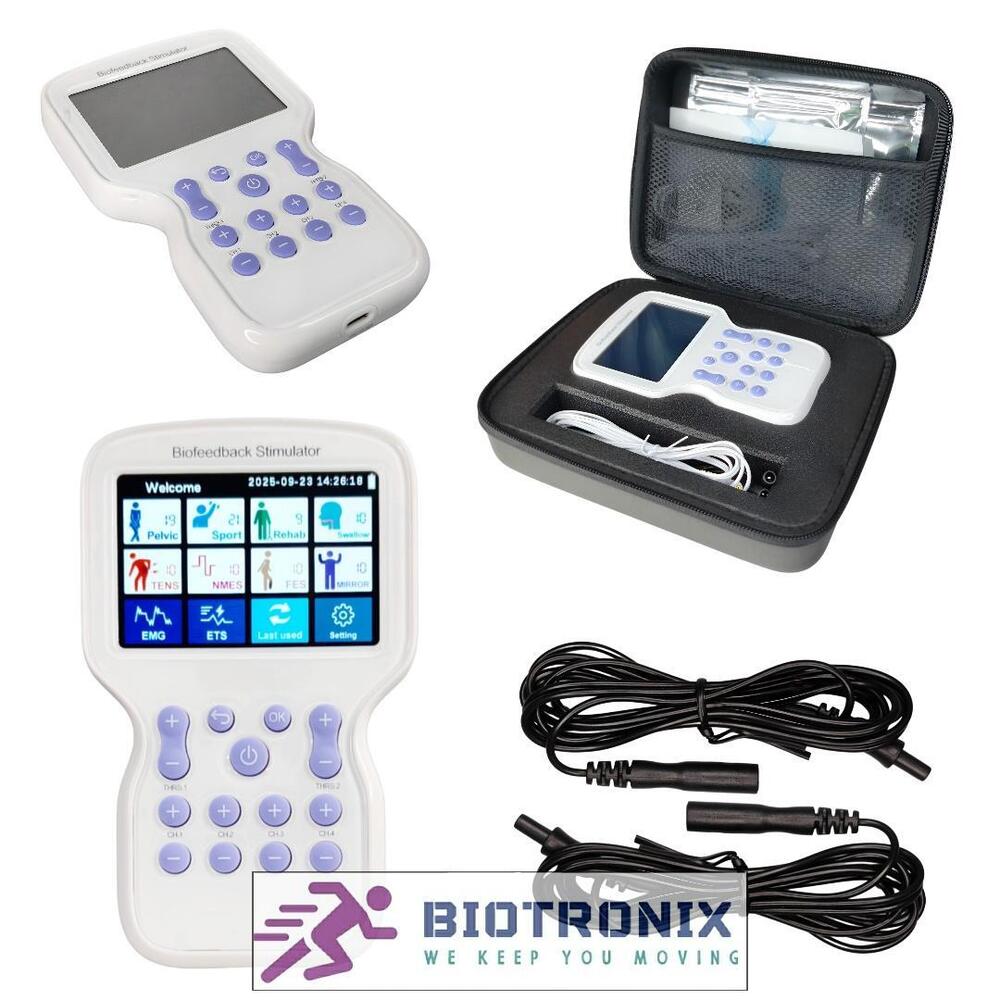

Included Accessories

• EMG electrodes (reusable and disposable)

• Stimulation electrodes and lead wires

• USB data cable and PC software

• Power adapter and carry case

• User manual
