About KM-580 EMG Triggered Biofeedback and Electrical Stimulation Device for Rehabilitation Therapy

Biotronix KM-580 EMG Triggered Biofeedback and Electrical Stimulation Device for Rehabilitation Therapy

The KM-580 EMG Triggered Biofeedback and Electrical Stimulation Device is a professional-grade physiotherapy and rehabilitation system designed for neuromuscular re-education, stroke recovery, pelvic floor training, and sports injury rehabilitation.
It combines EMG biofeedback, ETS (EMG-triggered stimulation), NMES, FES, and TENS in a single compact device, allowing physiotherapists to monitor, train, and stimulate muscles precisely during therapy sessions.

The KM-580 provides real-time EMG feedback, touchscreen control, PC connectivity, and report generation, ensuring accurate treatment and easy documentation for clinical use. Its dual-channel system and multiple preset programs make it ideal for both hospital departments and physiotherapy clinics.

• Post-stroke and paralysis rehabilitation

• Neuromuscular re-education after injury or surgery

• Pelvic floor muscle strengthening and incontinence therapy

• Swallowing (dysphagia) rehabilitation training

• Muscle activation and strengthening in sports physiotherapy

• Pain management with TENS therapy

• Functional re-education for shoulder, knee, and hand muscles

• Orthopedic and neurological rehabilitation programs

• Provides visual EMG feedback for faster patient learning

• Promotes accurate muscle activation and coordination

• Helps track therapy progress with data reports

• Reduces therapist workload with pre-programmed templates

• Improves patient motivation through interactive feedback

• Portable, efficient, and safe for multi-clinical environments

• Clinically validated performance for neuro and physical rehab

Technical Specifications

EMG Biofeedback

• Channels: 2-channel differential surface EMG

• Frequency Range: 20–500 Hz

• Sampling Rate: ≥1000 samples/sec/channel

• Input Impedance: ≥100 MΩ

• Noise Level: ≤1 µV RMS

• Display: Real-time waveform, numeric, and bar indicators

• Feedback: Visual and audio feedback

• Threshold Setting: Manual or auto-adjustable

ETS (EMG Triggered Stimulation)

• Trigger: Adjustable EMG threshold

• Delay Time: 0–5 seconds

• On/Off Time: 1–20 seconds adjustable

• Safety: Auto cutoff for artifact detection

Stimulation Modes (NMES/FES/TENS)

• Waveform: Symmetrical biphasic pulsed current

• Output Intensity: 0–120 mA (500 Ω load)

• Pulse Width: 50–400 µs adjustable

• Frequency: 1–150 Hz

• Ramp Time: 0–5 seconds adjustable

• Duty Cycle: Custom and preset options

• Output Channels: 2 independent

Interface & Connectivity

• Display: 4.3"–7" touch display

• Connectivity: USB to PC for data transfer and printing

• Storage: Up to 1000 patient sessions

• Reports: Export in PDF/Excel

• Language: English

Power & Build

• Power Supply: 100–240 V AC, 50/60 Hz

• Battery: Rechargeable lithium-ion

• Battery Backup: 6–8 hours continuous use

• Weight: Approx. 0.9 kg

• Dimensions: 210 × 120 × 55 mm

• Safety Standards: IEC 60601-1 and IEC 60601-1-2 compliant

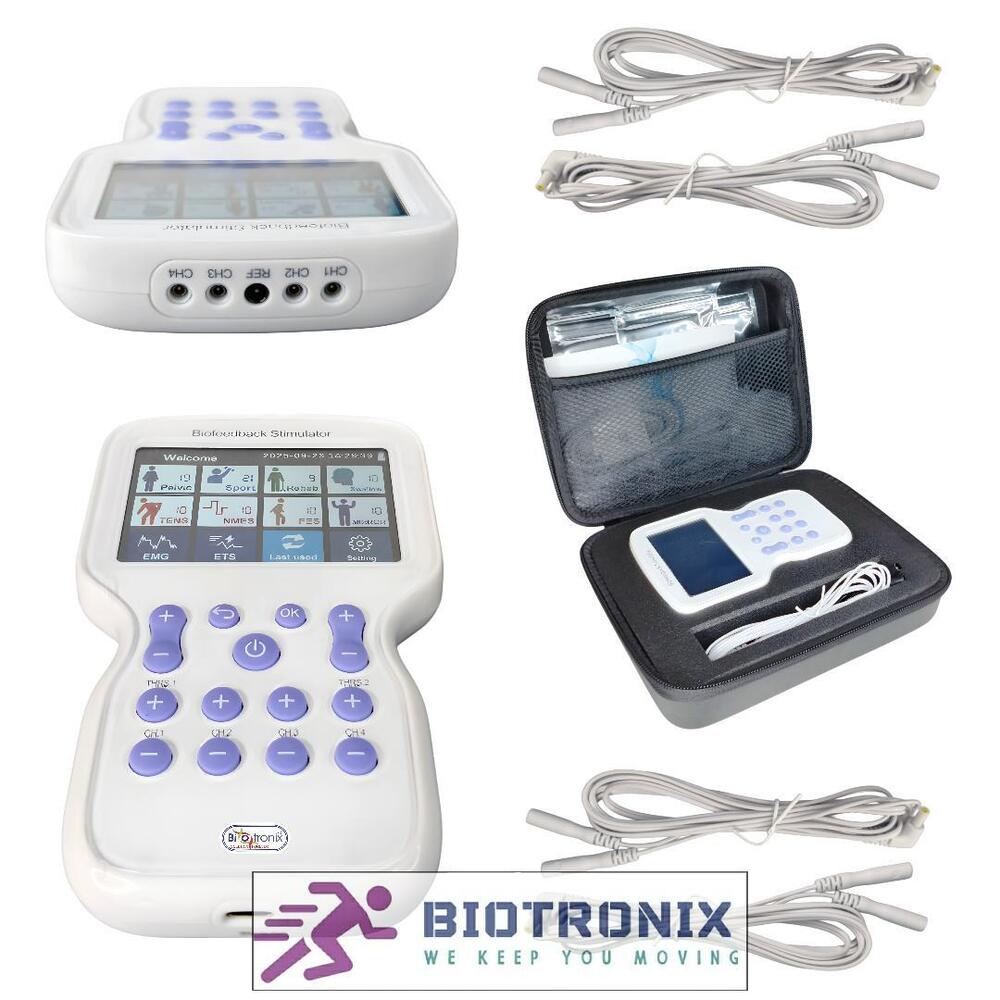

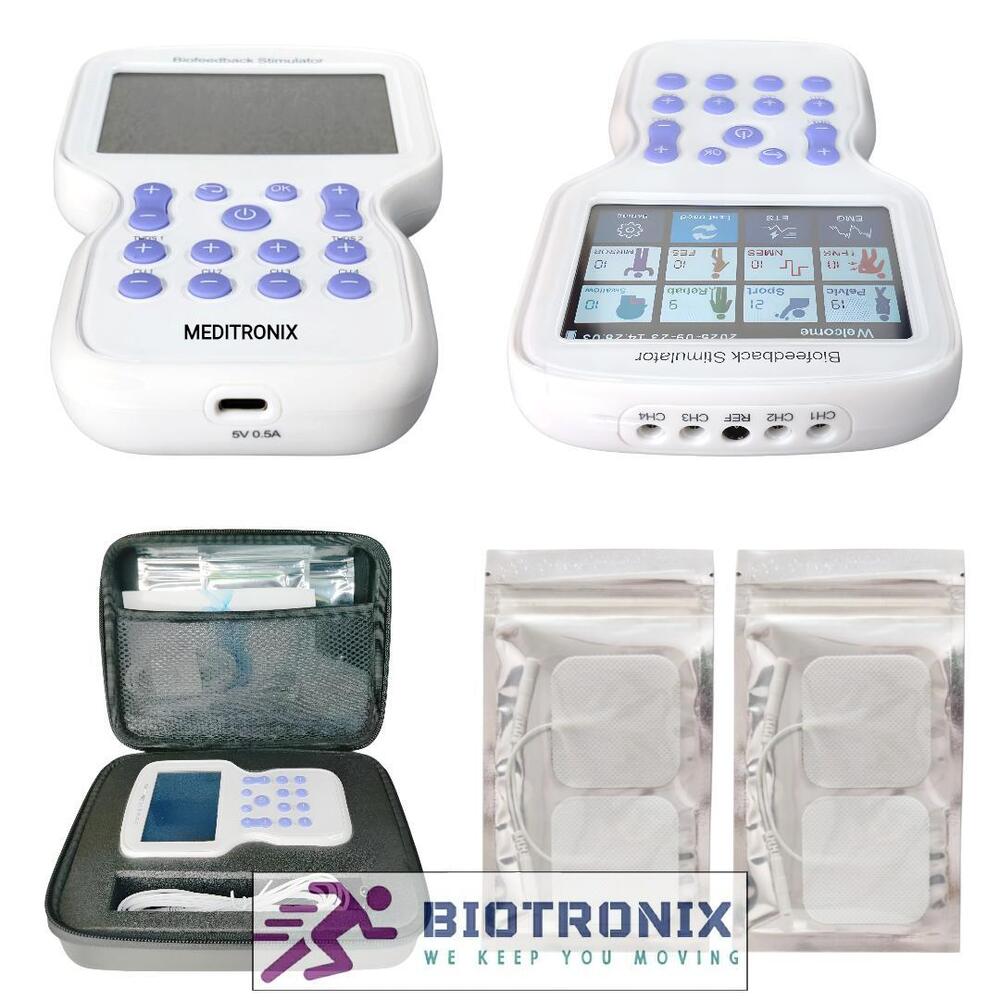

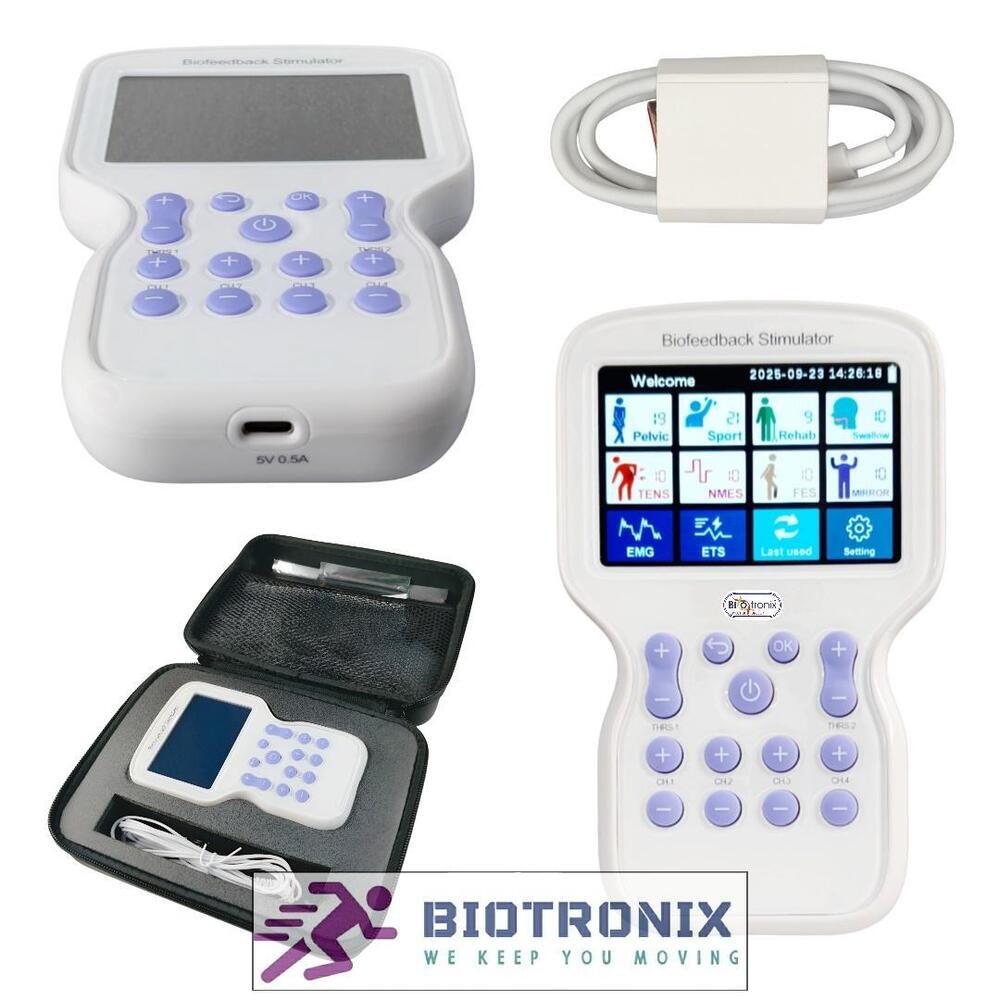

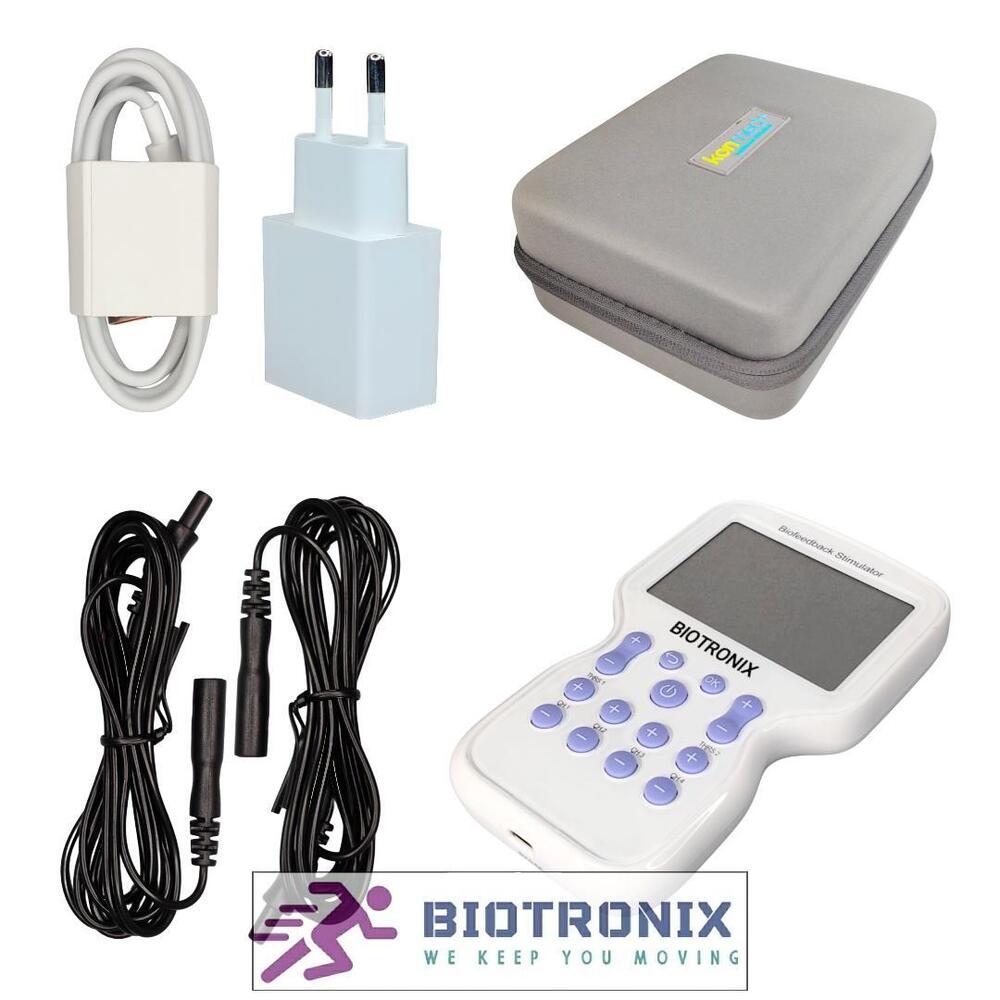

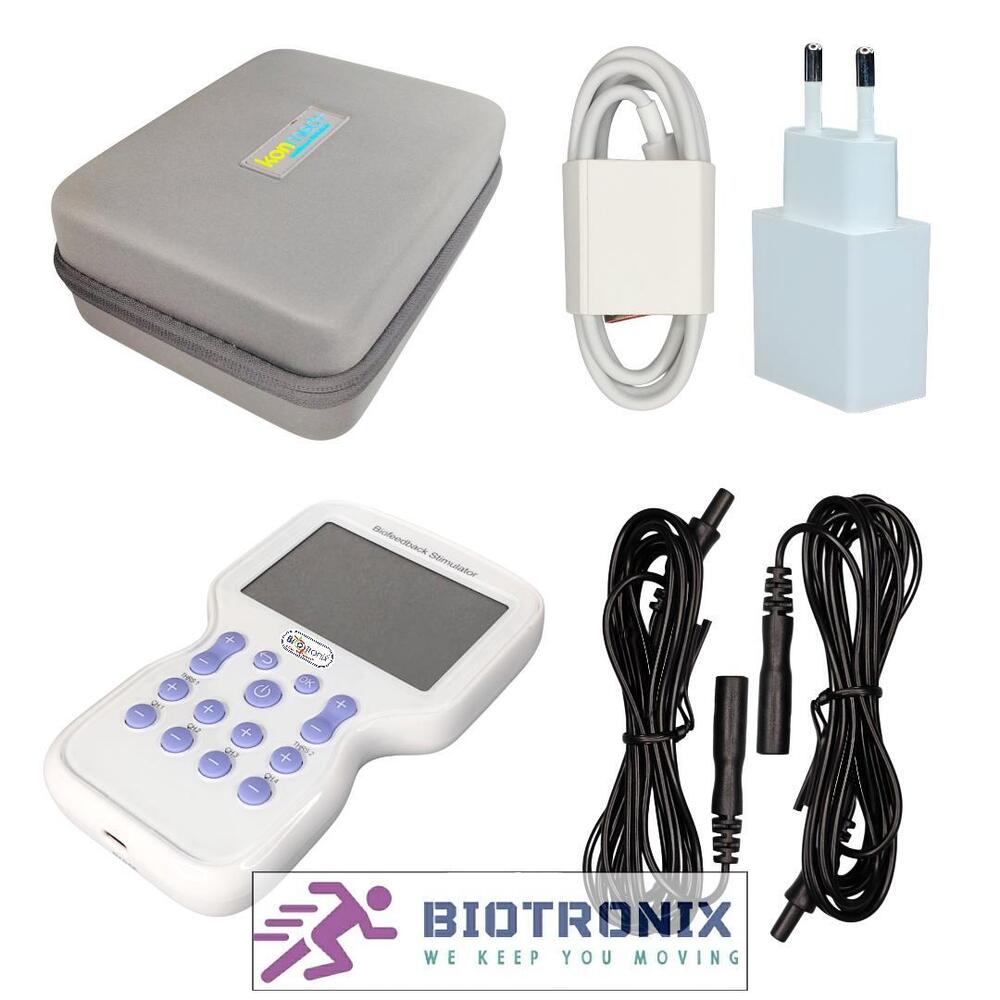

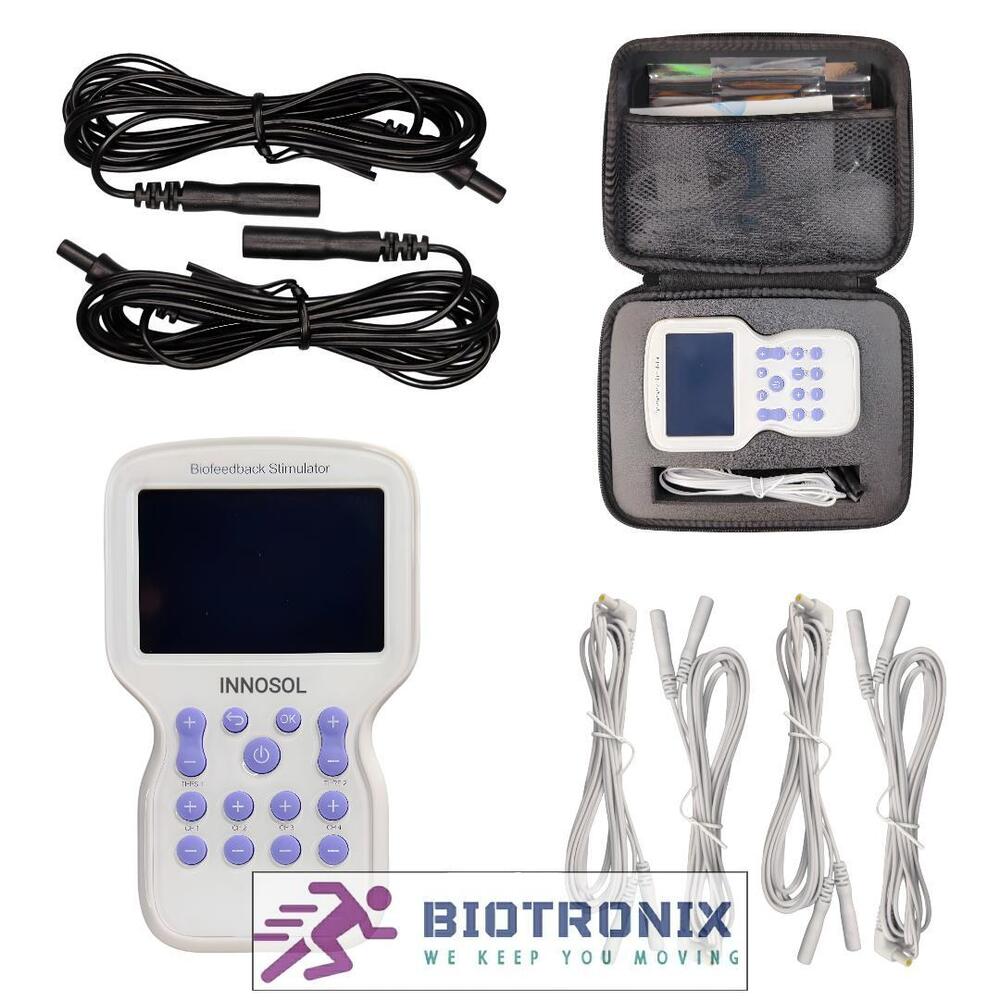

Accessories Included

• EMG leads and reusable electrodes

• Stimulation electrode pads and cables

• USB data cable and software

• Power adapter and user manual

• Carrying case
