About KM-580 Dual Channel EMG with ETS, NMES, and FES for Professional Physiotherapists

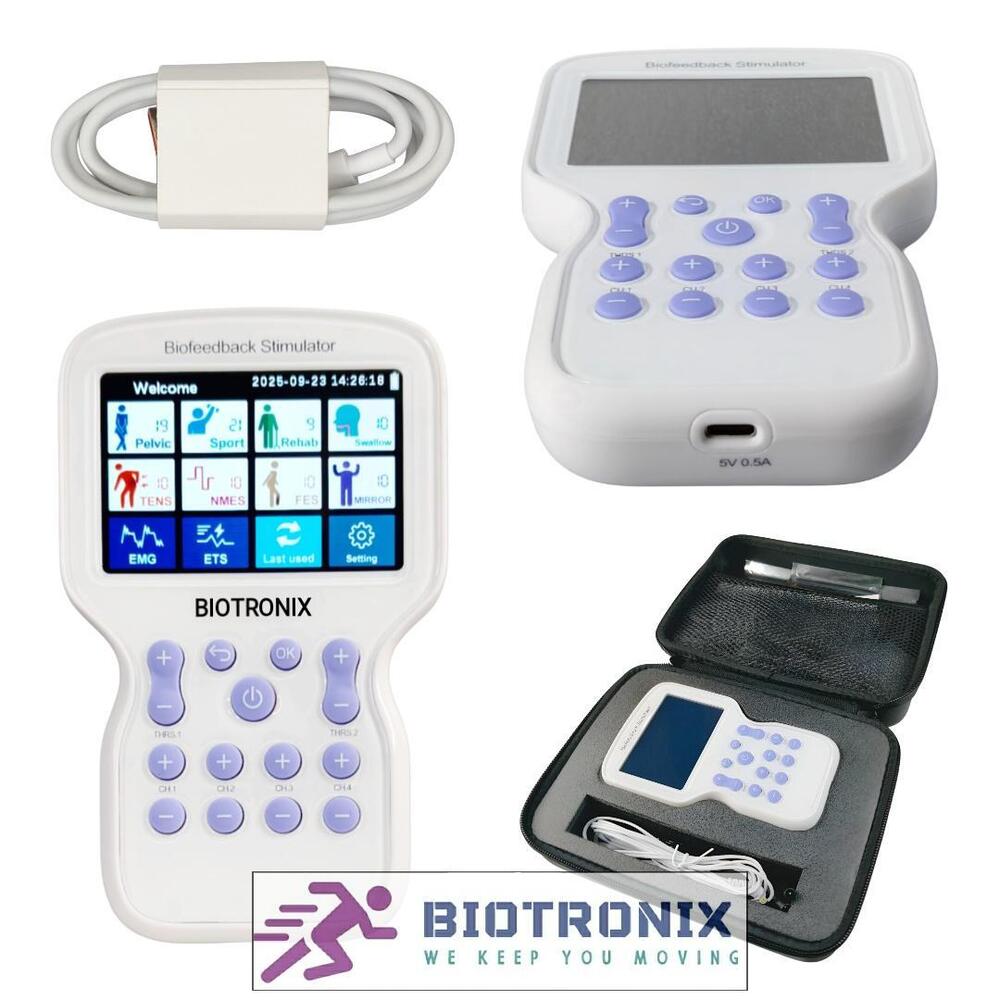

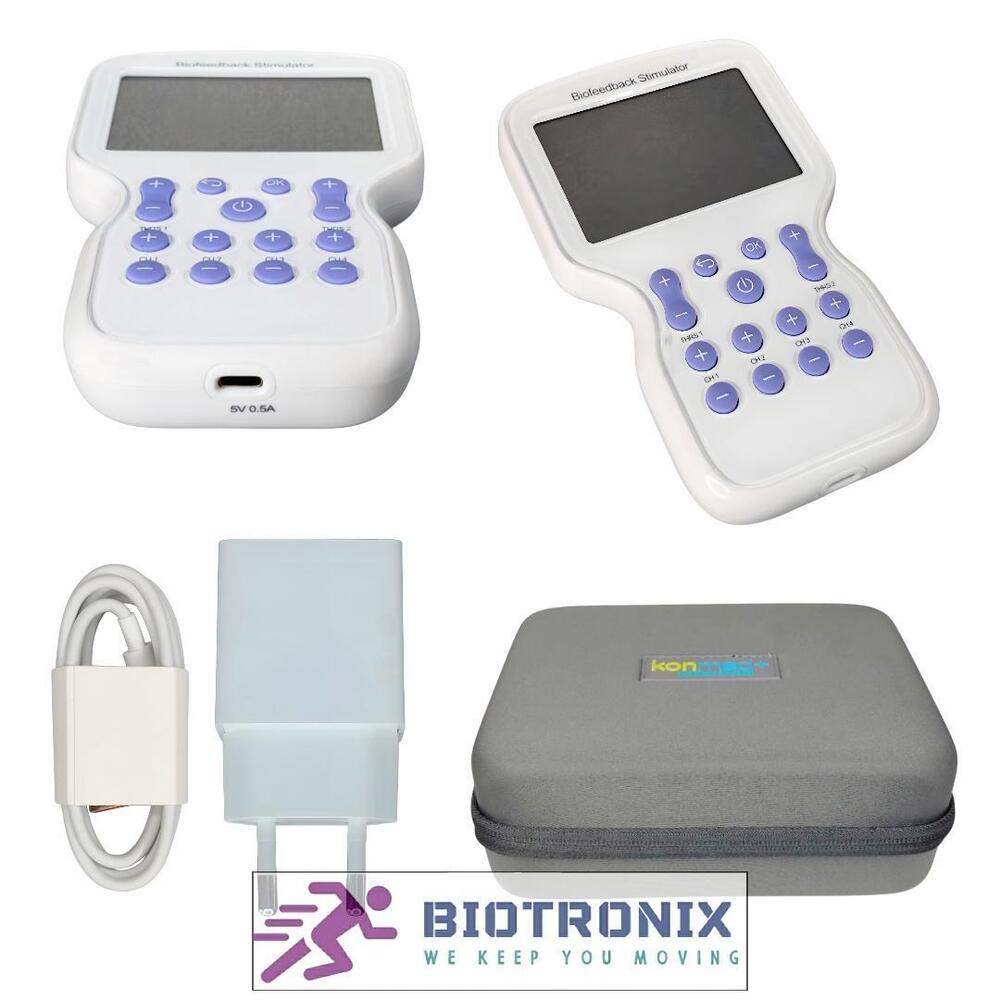

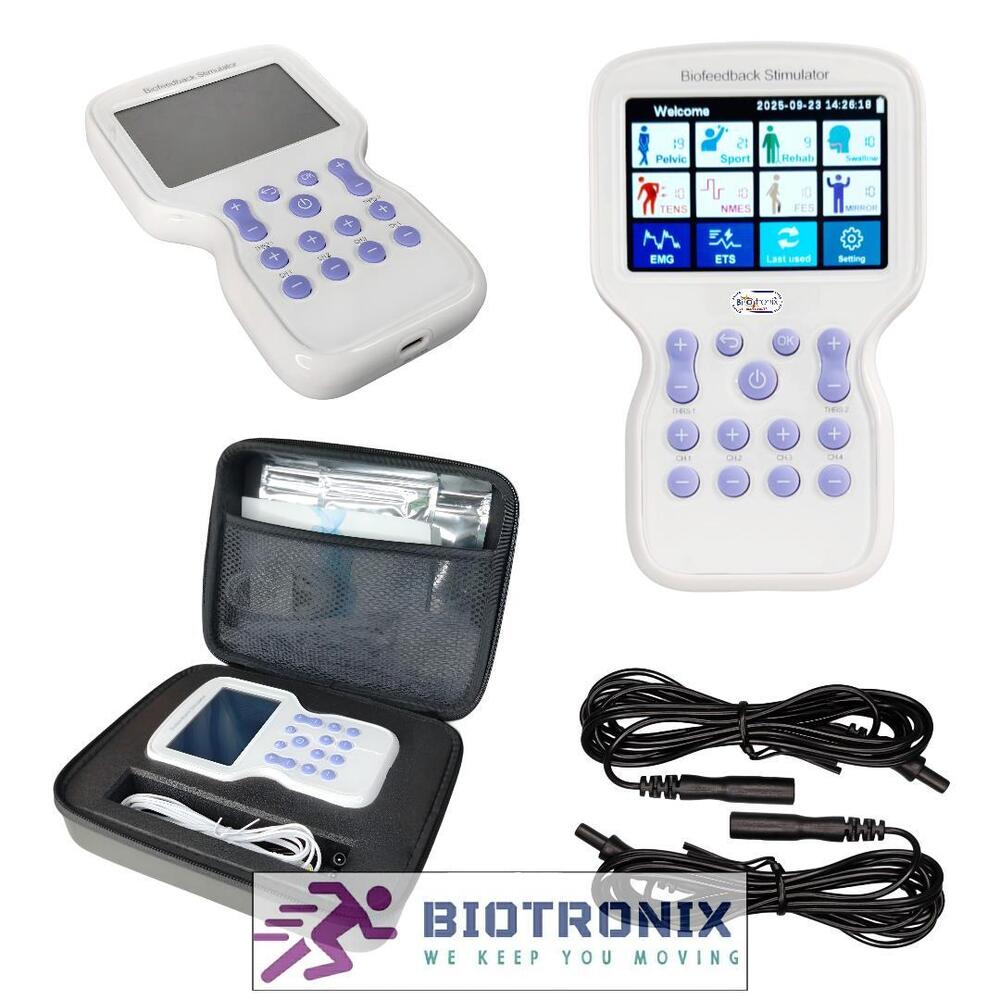

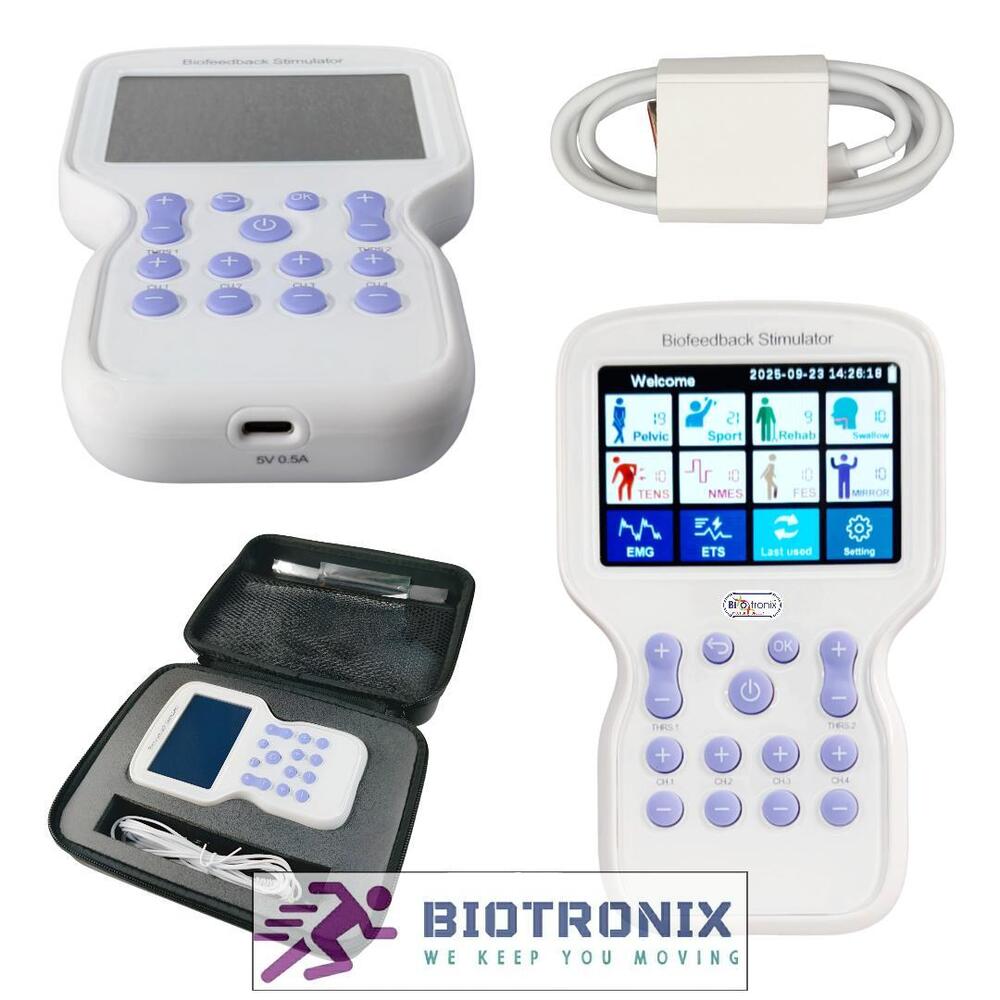

Biotronix KM-580 Dual Channel EMG with ETS, NMES, and FES for Professional Physiotherapists

The KM-580 Dual Channel EMG Therapy System is an advanced, multi-functional physiotherapy device designed for professional therapists and rehabilitation specialists.
It combines EMG biofeedback, ETS (EMG-triggered stimulation), NMES, and FES into one compact unit, allowing real-time monitoring, stimulation, and feedback during therapy sessions.

This innovative system supports muscle re-education, neuromuscular control, pain management, and post-stroke rehabilitation. With its touch display, PC connectivity, and data reporting features, it ensures precision, ease of use, and reliable performance for clinical applications.

• Dual-channel EMG biofeedback for accurate muscle activity analysis

• EMG Triggered Stimulation (ETS) for controlled neuromuscular re-education

• NMES and FES modes for muscle strengthening and functional restoration

• Real-time visual and auditory EMG feedback display

• Touchscreen interface with user-friendly navigation

• PC connectivity for data storage, reporting, and analysis

• Rechargeable battery for portable and continuous use

• Multi-patient profiles with therapy record management

• Multiple therapy templates for upper limb, lower limb, and pelvic training

• Compact and durable design suitable for professional physiotherapy clinics

Applications

• Stroke and paralysis rehabilitation

• Post-surgical neuromuscular re-education

• Muscle activation and strengthening for athletes

• Shoulder, knee, and ankle rehabilitation

• Pelvic floor and urinary incontinence training

• Nerve injury recovery and muscle coordination therapy

• Orthopedic and sports physiotherapy programs

• Pain management using NMES and FES therapy

• Swallowing (dysphagia) rehabilitation and motor retraining

Benefits

• Enhances motor recovery through biofeedback-guided training

• Provides objective data for patient progress tracking

• Increases treatment efficiency with automated ETS stimulation

• Improves patient engagement using interactive visual feedback

• Reduces therapist workload with built-in therapy templates

• Portable and battery-powered for flexible use across departments

• Designed for accuracy, safety, and clinical reliability

Technical Specifications

EMG Biofeedback

• Channels: 2-channel differential surface EMG

• Frequency Range: 20–500 Hz

• Sampling Rate: ≥1000 samples/sec/channel

• Input Impedance: ≥100 MΩ

• Noise Level: ≤1 µV RMS

• Display: Real-time waveform, bar, and numeric EMG values

• Thresholds: Adjustable (manual/automatic)

• Feedback: Visual and auditory

ETS (EMG Triggered Stimulation)

• Trigger Mode: EMG activity threshold-based

• Delay Time: 0–5 seconds

• On/Off Time: Adjustable (1–20 seconds)

• Stimulation Safety: Auto stop on artifacts

Stimulation Modes (NMES/FES)

• Waveform: Symmetrical biphasic pulsed

• Intensity: 0–120 mA (500 Ω load)

• Pulse Width: 50–400 µs adjustable

• Frequency: 1–150 Hz adjustable

• Ramp Time: 0–5 seconds

• Duty Cycle: Customizable or preset modes

• Output Channels: 2 independent stimulation outputs

Interface & Connectivity

• Display: 4.3"–7" touch screen

• Connectivity: USB to PC for data transfer and report printing

• Software: EMG data analysis and report generation

• Storage: Up to 1000 therapy sessions

• Language: English

Power & Design

• Power Supply: 100–240V AC, 50/60Hz

• Battery: Rechargeable lithium-ion

• Battery Life: 6–8 hours of continuous operation

• Weight: Approx. 0.9 kg

• Dimensions: 210 × 120 × 55 mm

• Compliance: IEC 60601-1 and IEC 60601-1-2 (medical safety standards)

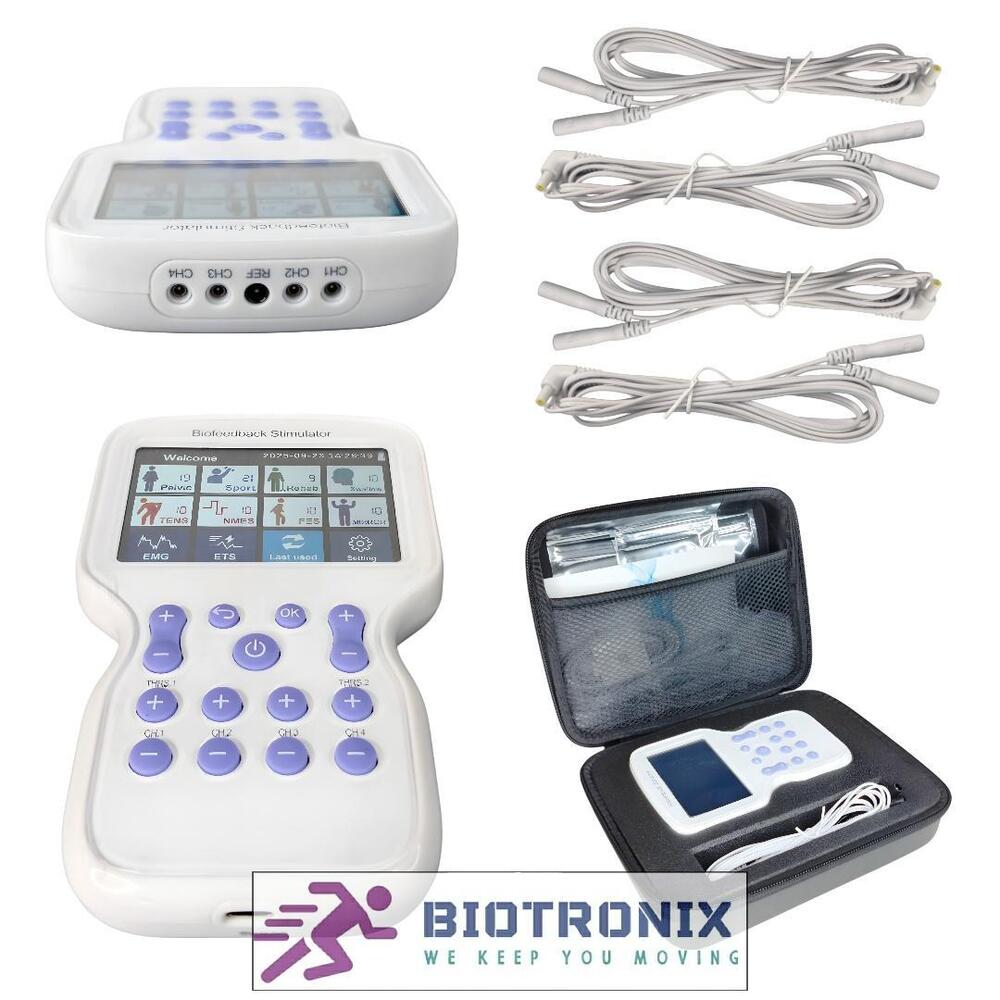

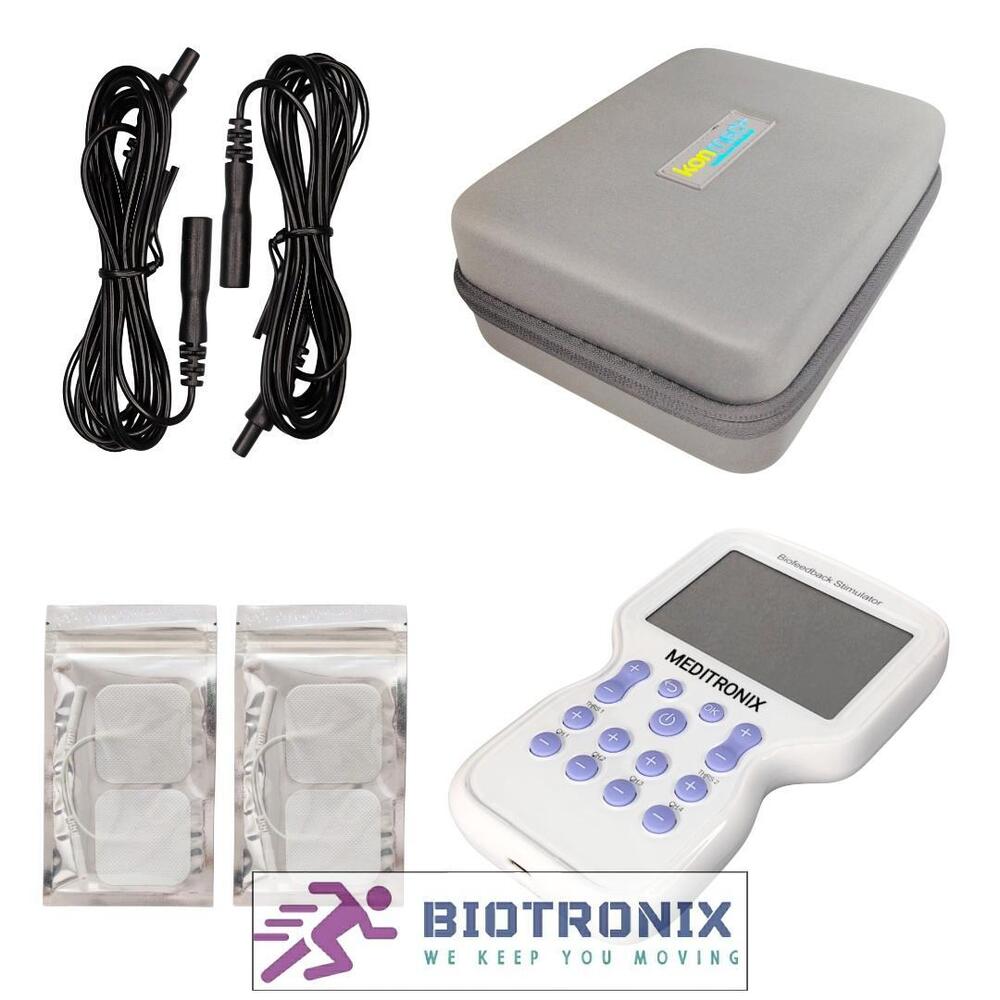

Included Accessories

• EMG electrode leads (2 sets)

• Reusable and disposable electrode pads

• USB data cable and software

• Power adapter

• Carrying case and user manual
