About KM-580 Advanced EMG Biofeedback Physiotherapy Equipment with Touch Screen and PC Software

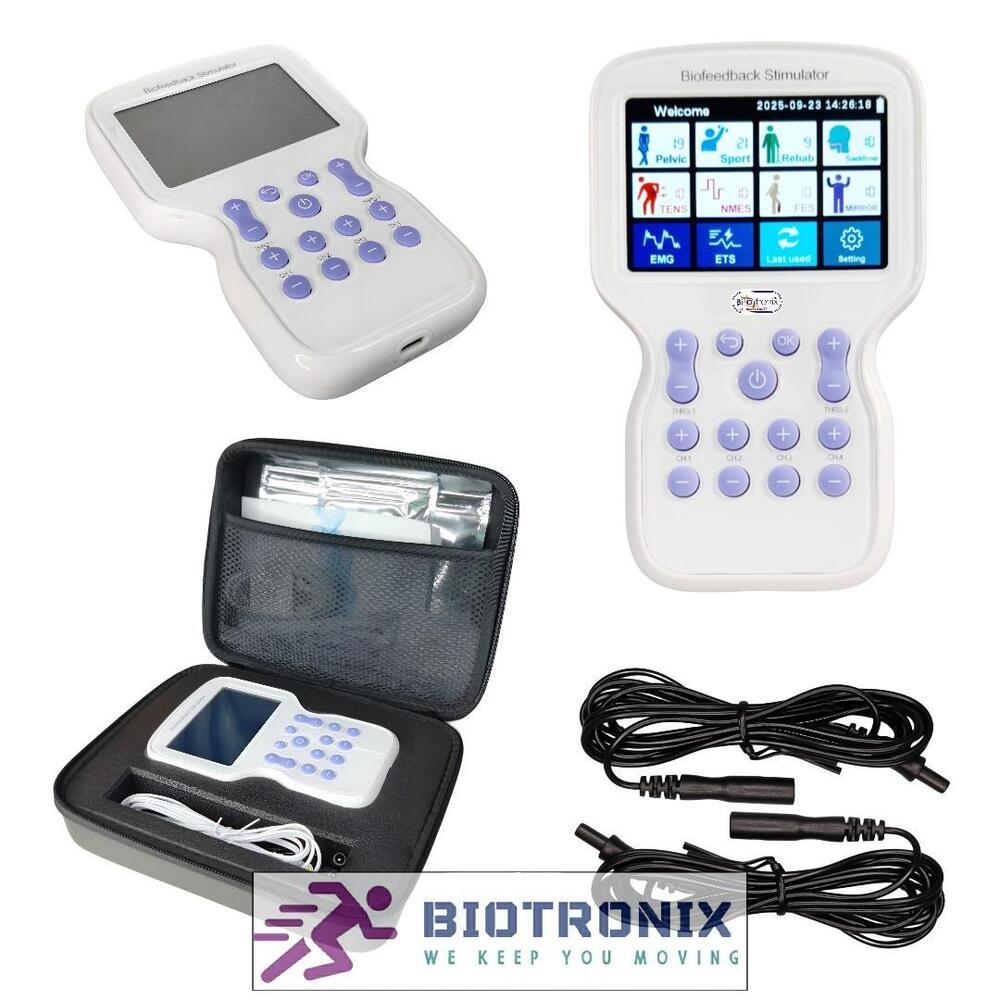

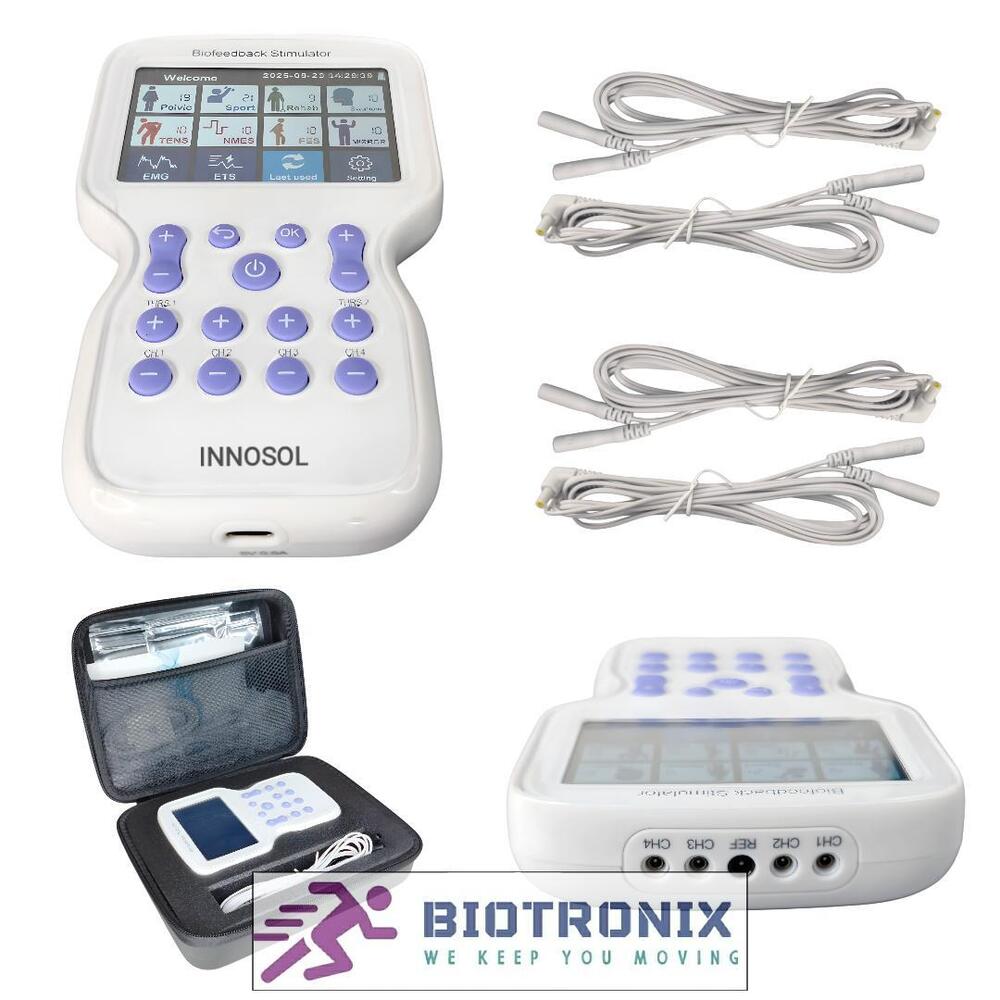

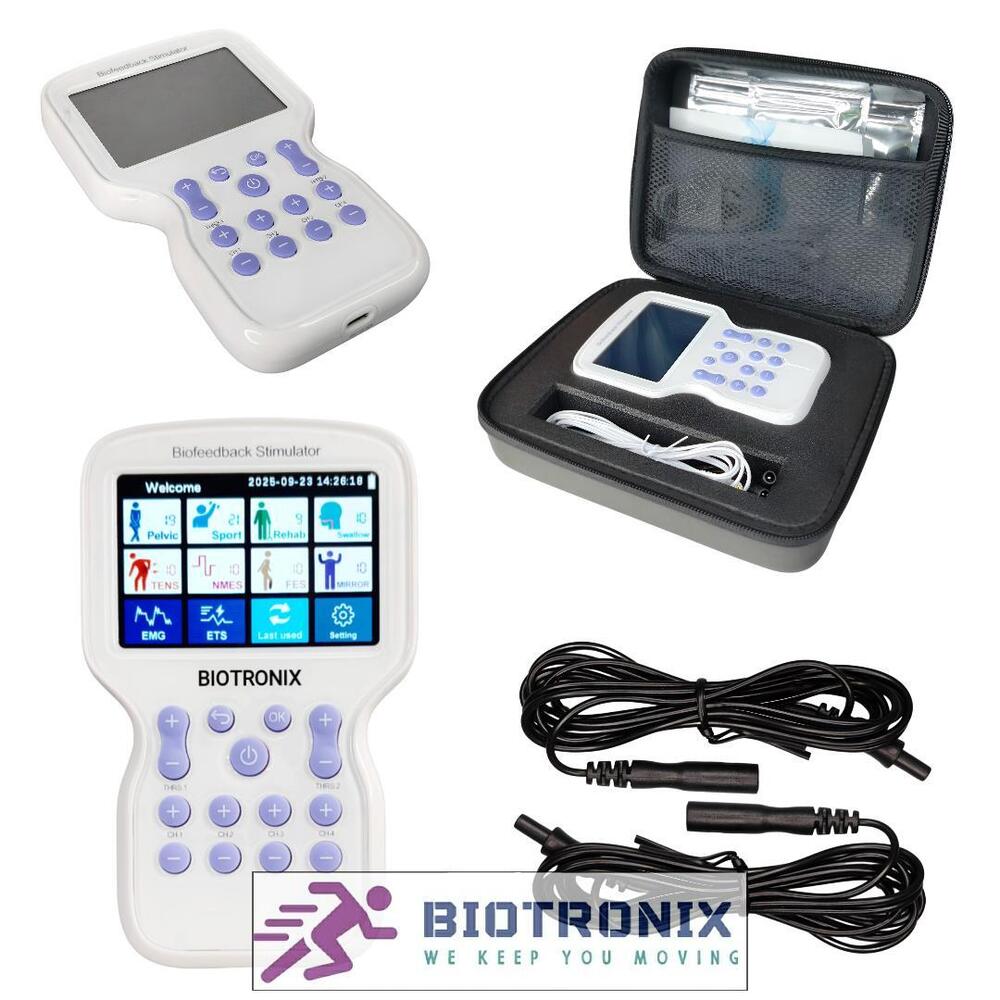

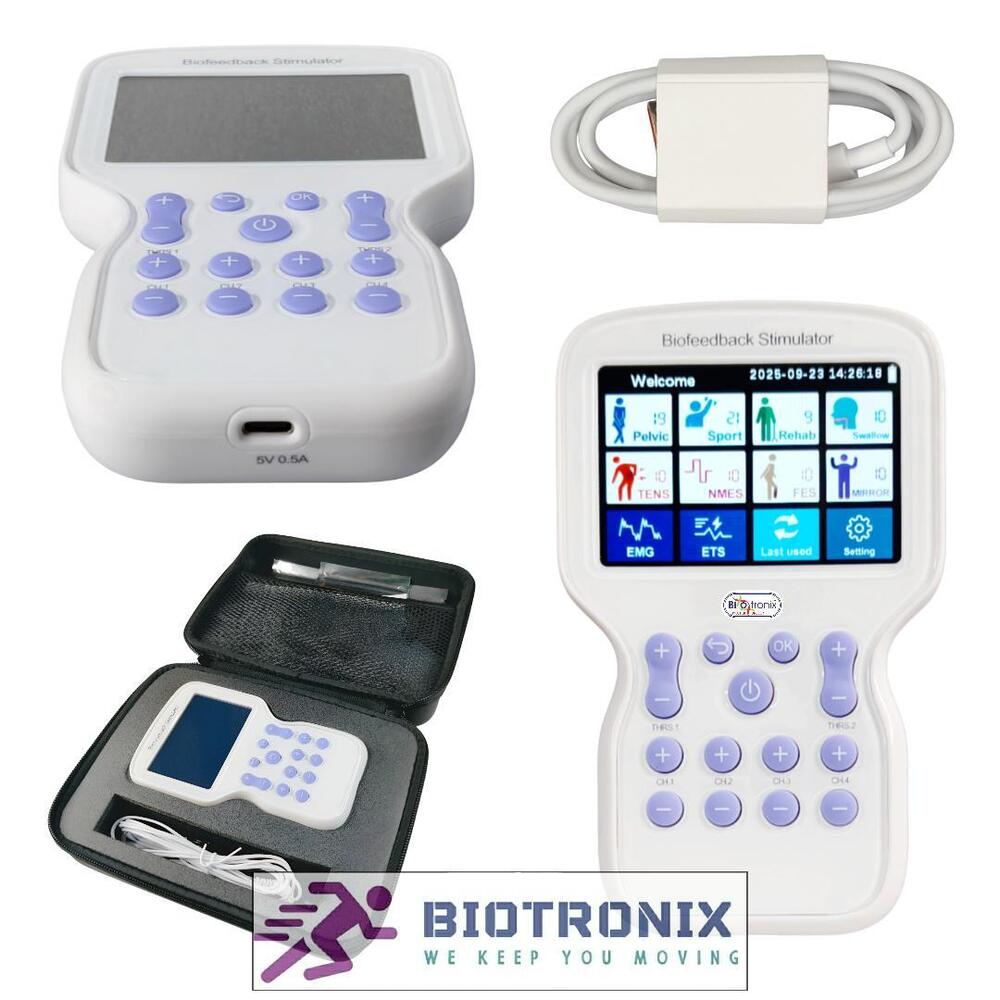

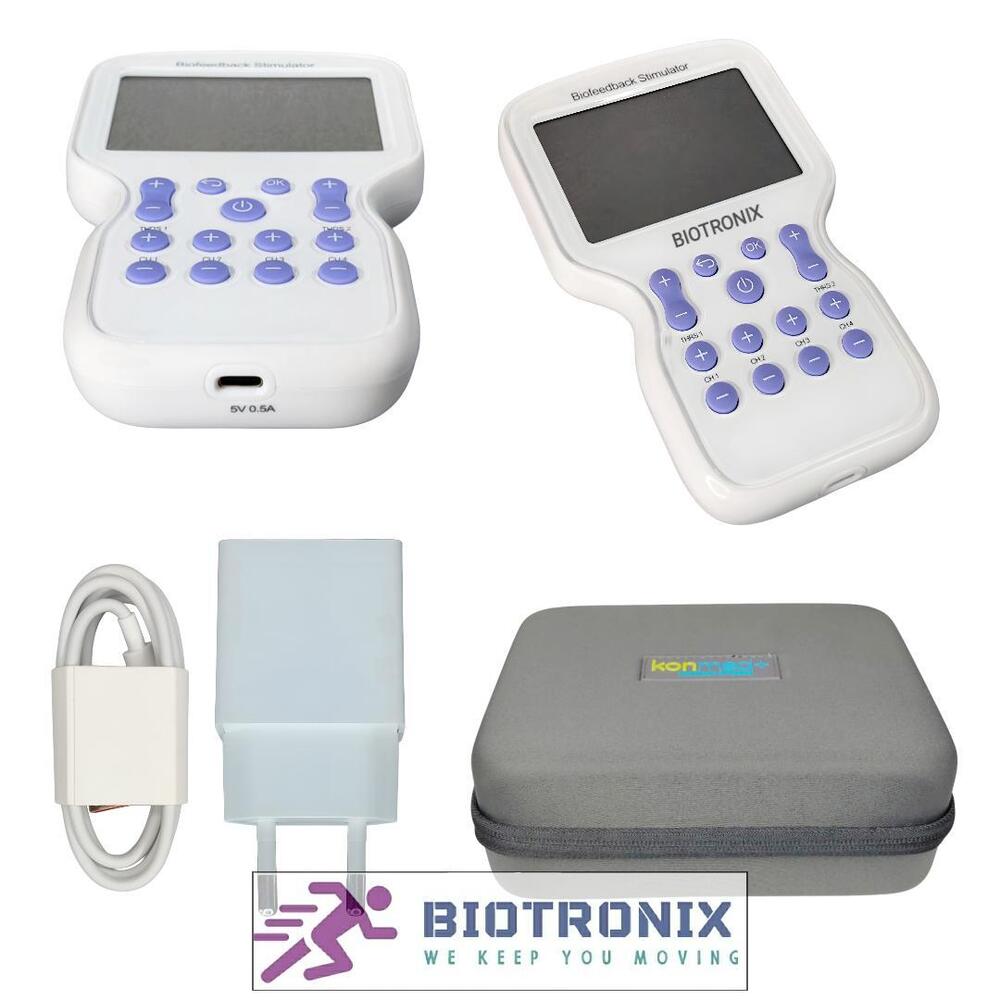

Biotronix KM-580 Advanced EMG Biofeedback Physiotherapy Equipment with Touch Screen and PC Software

The KM-580 Advanced EMG Biofeedback Physiotherapy Equipment is a cutting-edge rehabilitation device designed for neuromuscular training, post-stroke recovery, pelvic floor therapy, and sports rehabilitation.
This professional-grade system integrates EMG biofeedback, ETS (EMG-triggered stimulation), NMES (neuromuscular electrical stimulation), FES (functional electrical stimulation), and TENS (transcutaneous electrical nerve stimulation) in one compact unit.

Equipped with a touch screen interface and PC connectivity software, the KM-580 allows physiotherapists to monitor muscle activity in real time, customize therapy parameters, and generate detailed progress reports for patient documentation.

It’s an ideal choice for hospitals, physiotherapy clinics, sports centers, and rehabilitation facilities seeking a reliable and advanced EMG therapy system.

• Post-stroke and paralysis rehabilitation

• Pelvic floor strengthening and incontinence therapy

• Muscle activation and coordination improvement

• Sports injury and athletic recovery training

• Neuromuscular re-education for motor control

• Dysphagia (swallowing therapy) rehabilitation

• Pain management through NMES and TENS modes

• Shoulder, elbow, wrist, and lower limb muscle reactivation

• Orthopedic and neurological rehabilitation programs

Benefits

• Enhances recovery speed through visual EMG feedback

• Provides accurate muscle activation analysis

• Enables personalized therapy using PC software connectivity

• Improves patient motivation with interactive display and progress tracking

• Reduces therapist effort with automated work-rest cycles and templates

• Portable and battery-operated for versatile use

• Clinically safe and reliable with professional-grade components

Technical Specifications

EMG Biofeedback

• Channels: Dual-channel EMG (2 independent)

• Frequency Range: 20–500 Hz

• Sampling Rate: ≥1000 samples/sec/channel

• Input Impedance: ≥100 MΩ

• Noise Level: ≤1 µV RMS

• Feedback Modes: Visual (bar/waveform) and auditory

• Threshold Control: Auto or manual adjustment

ETS (EMG Triggered Stimulation)

• Trigger: EMG signal threshold-based

• Delay: 0–5 seconds

• On Time: 1–10 seconds

• Off Time: 1–20 seconds

• Safety: Auto shut-off during signal artifacts

NMES/FES/TENS Stimulation

• Waveform: Symmetrical biphasic pulsed

• Output Intensity: 0–120 mA (500 Ω load)

• Pulse Width: 50–400 µs adjustable

• Frequency: 1–150 Hz adjustable

• Ramp Up/Down: 0–5 seconds adjustable

• Duty Cycle: Preset/custom

• Output Channels: 2 independent

Display & Connectivity

• Display: 4.3"–7" capacitive touch screen

• Connectivity: USB to PC for data export and report generation

• Software: EMG recording, analysis, and printable report module

• Memory: Up to 1000 therapy sessions

• Language: English

Power & Design

• Power Supply: 100–240 V AC, 50/60 Hz

• Battery: Rechargeable lithium-ion

• Battery Life: 6–8 hours continuous operation

• Dimensions: 210 × 120 × 55 mm

• Weight: Approx. 0.9 kg

• Compliance: IEC 60601-1, IEC 60601-1-2 (medical safety)

Accessories

• EMG leads and reusable electrodes

• Stimulation electrode pads and cables

• USB data cable and PC software

• Power adapter and carry case

• User manual and training guide
