Exoskeleton Robot for Motor Function Recovery and Gait Training

About Exoskeleton Robot for Motor Function Recovery and Gait Training

Biotronix Exoskeleton Robot for Motor Function Recovery and Gait Training

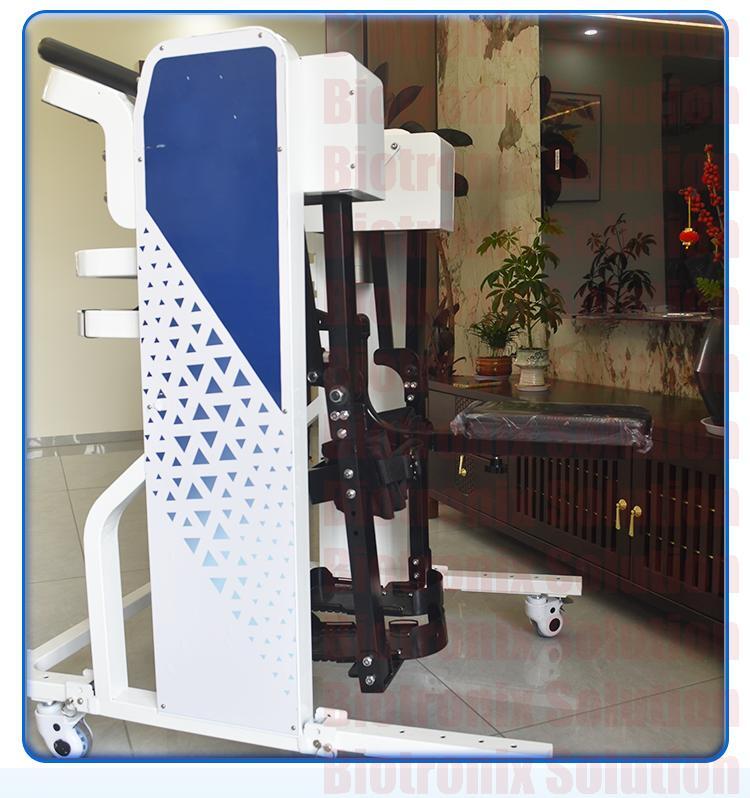

The Exoskeleton Robot for Motor Function Recovery and Gait Training is an advanced rehabilitation solution that combines robotics and physiotherapy to help patients restore movement and regain mobility after stroke, spinal cord injury, paralysis, or other neurological impairments.

This intelligent robotic exoskeleton system provides motor-assisted walking and gait training through scientifically designed repetitive motion exercises. It enhances muscle coordination, promotes balance, and improves motor control—helping patients relearn natural walking patterns safely and efficiently.

With built-in sensors, smart controls, and adjustable levels of assistance, the system adapts to each patient’s needs. Real-time feedback and performance data allow therapists to personalize rehabilitation programs for faster recovery.

Ideal for physiotherapy centers, rehabilitation hospitals, and neurotherapy clinics, this robotic gait training exoskeleton ensures high precision, safety, and comfort throughout the rehabilitation process.

Key Features

• Motor-assisted robotic support for gait and mobility training

• Adjustable walking speed, resistance, and intensity

• Intelligent motion and pressure sensors for real-time feedback

• Promotes natural gait and muscle activation

• Ergonomic and lightweight frame for patient comfort

• Real-time data tracking and performance recording

• Suitable for stroke, spinal cord injury, and neuro rehab therapy

• Easy to operate, portable, and safe for long sessions

Applications

• Motor function and gait recovery

• Stroke and paralysis rehabilitation

• Post-surgical physiotherapy

• Neurological and spinal injury rehabilitation

• Balance and walking re-education

• Hospital and clinical physiotherapy programs

Technical Specifications

Product Name: Exoskeleton Robot for Motor Function Recovery and Gait Training
Type: Motorized Robotic Rehabilitation Exoskeleton
Usage/Application: Neuro rehabilitation, physiotherapy, stroke and gait training
Training Modes: Automatic, Manual, and Assisted
Target Area: Lower limbs (optional full-body model available)
Control System: Intelligent digital control with touchscreen interface
Display Type: 10-inch LCD / Touchscreen
Sensor Technology: Motion, angle, and pressure sensors for feedback
Motor Type: High-torque servo motors with adaptive speed control
Support Level: Adjustable from passive to active assist
Walking Speed Range: 0.2 – 2.0 m/s (customizable)
Range of Motion (ROM): Hip 120°, Knee 135°, Ankle 45°
Power Supply: AC 220V ±10%, 50Hz
Power Consumption: ≤ 500W
Frame Material: Lightweight aluminum alloy with soft padded supports
Height Adjustment: 150–190 cm (adjustable)
Weight Capacity: Up to 120 kg
Safety Features: Emergency stop, fall detection, auto-lock, overload protection
Connectivity: USB, Wi-Fi, data export via PC or cloud
Data Recording: Gait tracking, session duration, performance reports
Noise Level: < 50 dB (quiet operation)
Working Temperature: 10°C – 40°C
Dimensions (Approx.): 1100 × 600 × 1700 mm
Net Weight: 45–55 kg (depending on configuration)
Brand: Biotronix
Country of Origin: India / Imported Model Available
