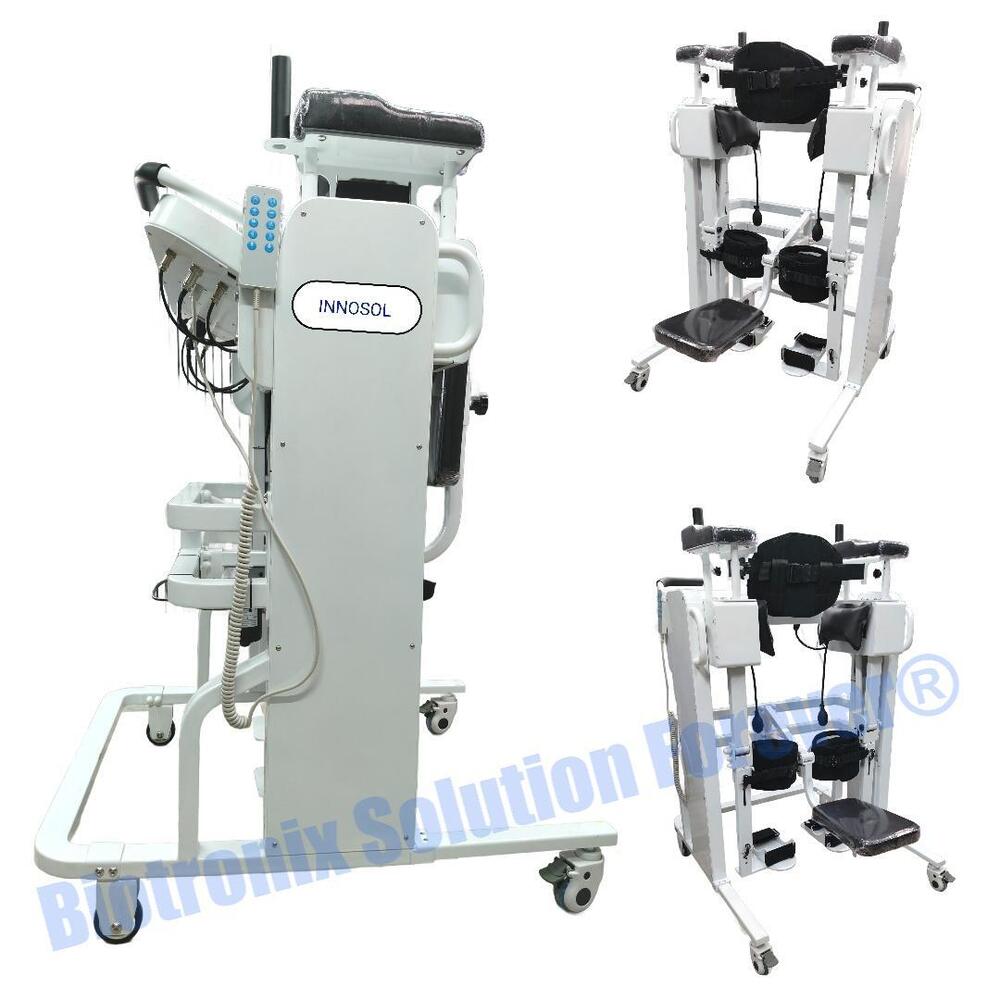

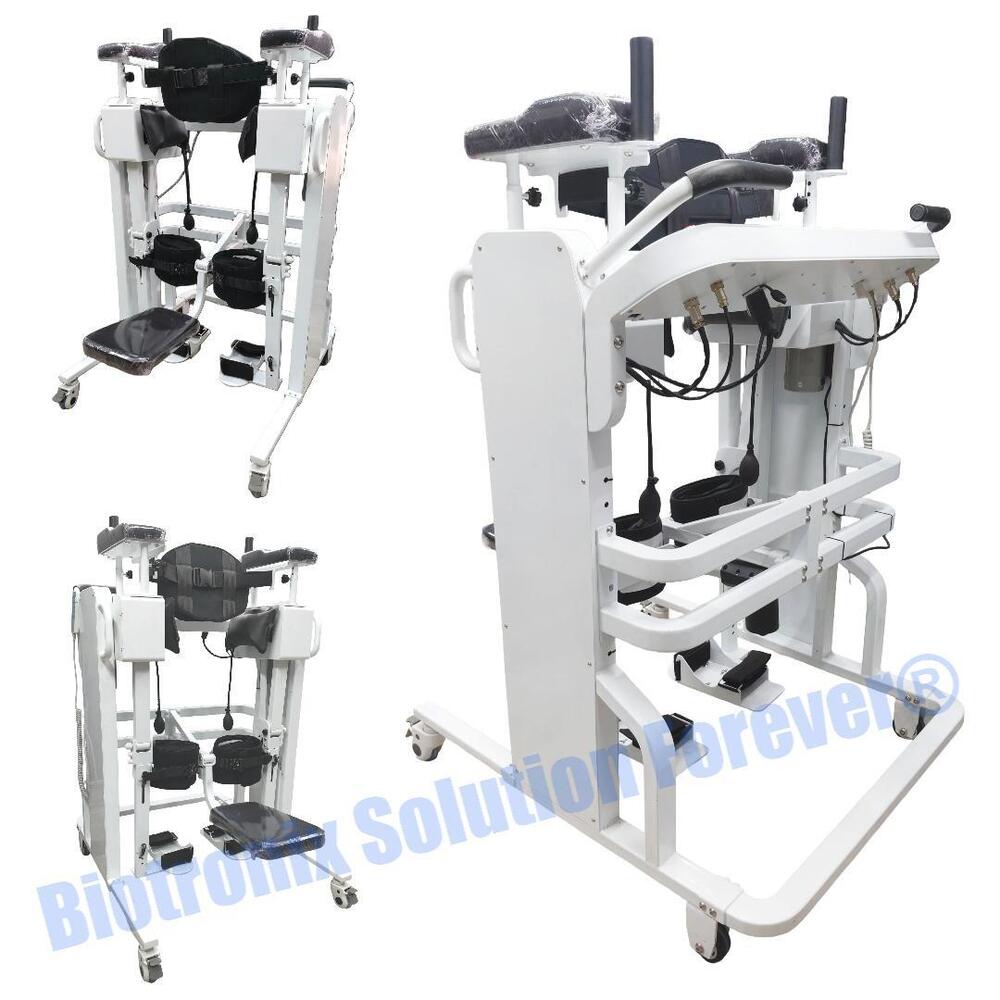

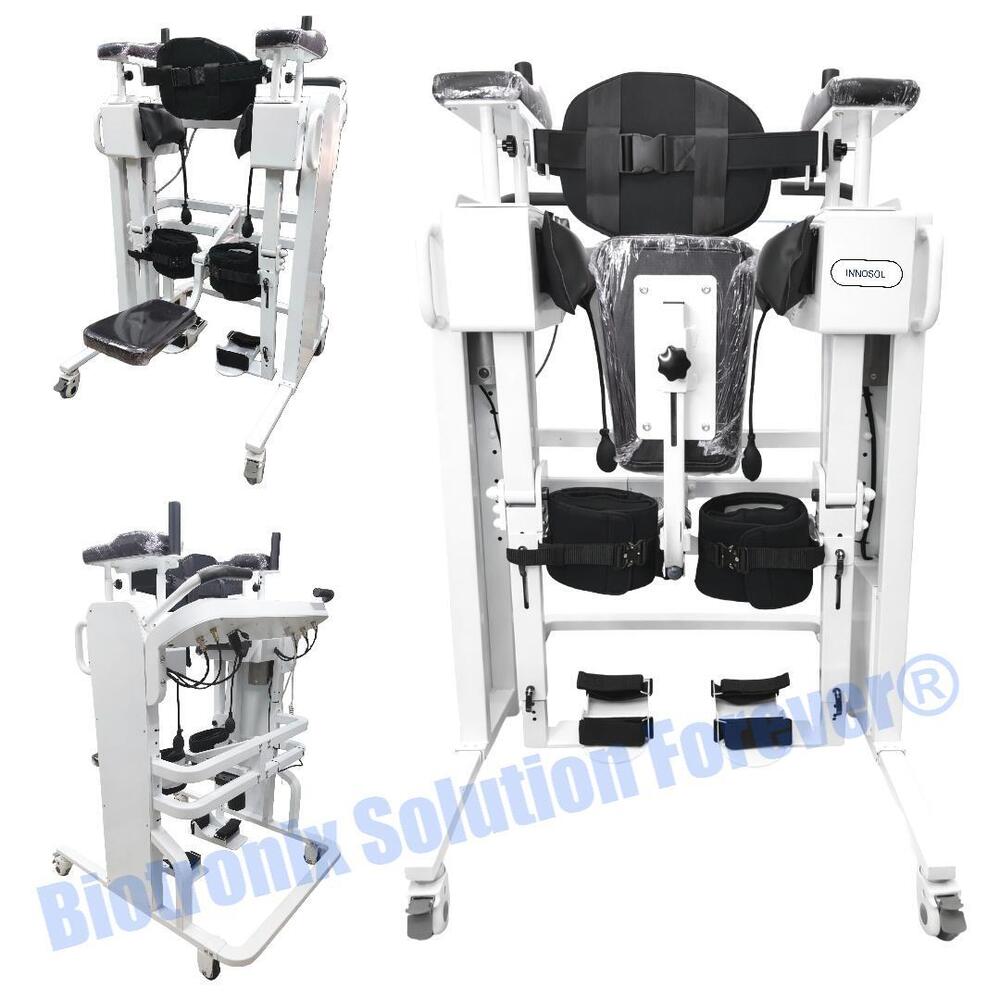

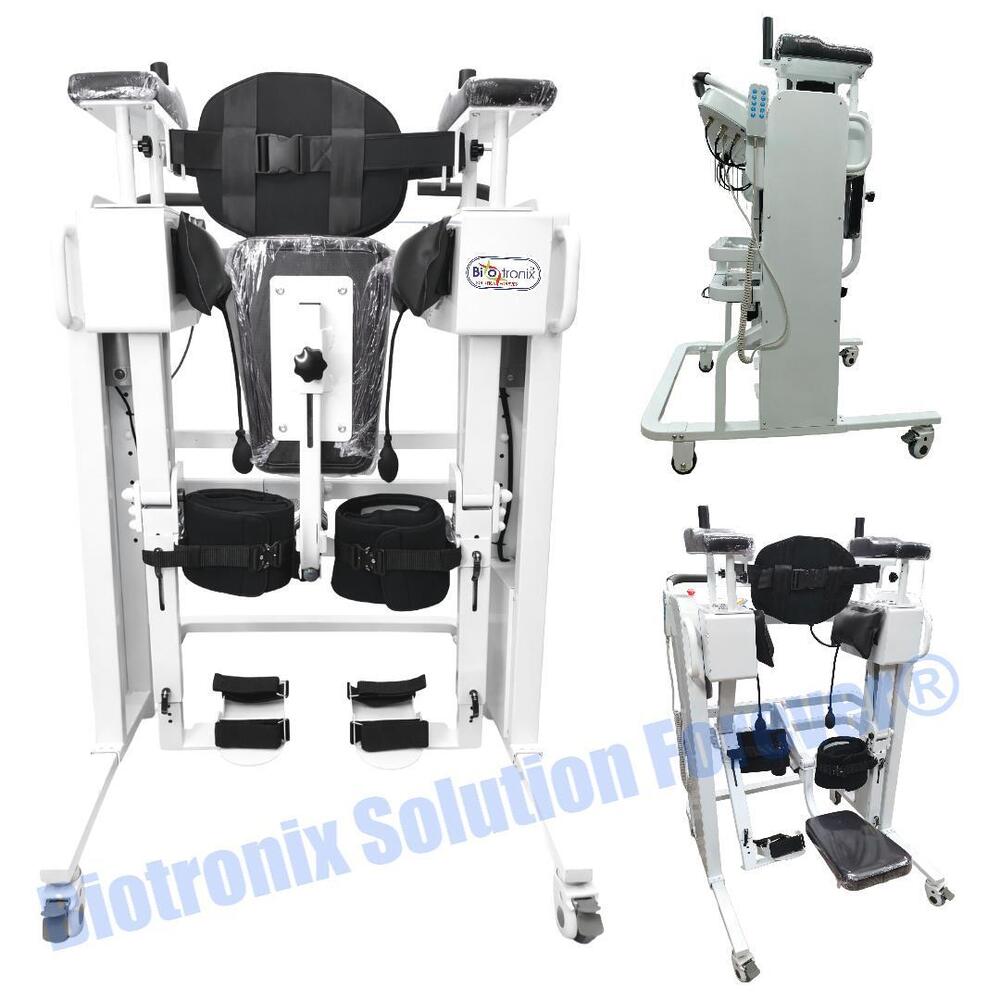

Exoskeleton Rehabilitation Systems for Progressive Motor Training

About Exoskeleton Rehabilitation Systems for Progressive Motor Training

Biotronix Exoskeleton Rehabilitation Systems for Progressive Motor Training

Exoskeleton rehabilitation systems are designed to support progressive motor training by delivering structured, adaptive, and task-specific therapy for patients with neurological and orthopedic impairments. These wearable robotic systems assist movement in the early stages of recovery and gradually reduce support as motor control, strength, and coordination improve. By combining intelligent sensors, adaptive control algorithms, and clinically guided rehabilitation protocols, exoskeleton systems enable step-by-step motor relearning, helping patients transition from assisted movement to active and functional mobility in modern rehabilitation settings.

Applications

• Stroke rehabilitation for progressive motor relearning and gait recovery

• Spinal cord injury rehabilitation for step-wise mobility and motor training

• Neurological rehabilitation for traumatic brain injury, Parkinson’s disease, and multiple sclerosis

• Orthopedic rehabilitation following joint replacement, fractures, and ligament injuries

• Post-surgical rehabilitation for gradual restoration of motor function

• Gait training, balance improvement, and functional mobility programs

Benefits

• Supports gradual motor recovery through structured, progressive training

• Enhances neuroplasticity with repetitive, task-specific movement practice

• Improves muscle strength, coordination, balance, and voluntary motor control

• Ensures patient safety during all stages of assisted and active therapy

• Provides objective, data-driven insights into motor training progress

• Reduces physical strain and workload on physiotherapists

• Increases patient confidence, motivation, and therapy adherence

• Promotes consistent, measurable, and functional recovery outcomes

Technical Specifications

• System type: Wearable lower-limb rehabilitation exoskeleton

• User weight range: Approximately 40–120 kg

• User height range: Approximately 150–195 cm

• Assisted joints: Hip (2 degrees of freedom), Knee (1 degree of freedom), Ankle (1 degree of freedom per side)

• Actuation system: High-torque brushless DC motors with integrated torque sensors

• Control system: Intelligent adaptive control with real-time feedback algorithms

• Power supply: Rechargeable lithium-ion battery pack

• Battery backup: Approximately 3–5 hours of continuous operation

• Charging time: Approximately 2–3 hours

• Training modes: Passive, active-assist, resistive, adaptive

• Sensor system: IMU sensors, joint encoders, force and torque sensors

• Safety features: Emergency stop button, torque limiters, mechanical braking system

• Connectivity: Bluetooth, Wi-Fi, USB data export

• Compliance: Medical device certifications (model dependent)

• Operating temperature: 10°C to 40°C

• Storage temperature: –20°C to 60°C
