Electrical Muscle Stimulation Machine for Dysphagia Rehabilitation

Send Inquiry

Request To Call Back

Electrical Muscle Stimulation Machine for Dysphagia Rehabilitation

Price 55000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Electrical Muscle Stimulation Machine for Dysphagia Rehabilitation Specification

Power
50 W Volt (v)

Warranty
1 year

Adhesive Type
Medical-Grade Self-Adhesive Electrode Pads

Equipment Type
NMES Dysphagia Rehabilitation & Swallowing Therapy Equipment

Lighting Type
LED Backlit Digital Display

Size
30, 25, 10 cm

Magnification Power
Not Applicable mm

Function
NMES Stimulation, Dysphagia Rehabilitation, Swallowing Muscle Training, Neuromuscular Re-education, Swallowing Function Training, and Post-Stroke Swallowing Rehabilitation

Capacity
Single Patient Treatment per Session Kg

Material
KM250 NMES Dysphagia Stimulator

Suitable For Use
Hospitals, Physiotherapy Clinics, Neuro Rehabilitation Centers, Speech & Swallowing Therapy Centers, and Rehabilitation Clinics

Noise Level
50 dB db

Condition
new and unused

Power Consumption
50 W Watt (W)

Real-Time Operation
Yes Real-Time Therapy Monitoring & NMES Stimulation Week

Operation Mode
NMES Stimulation Mode / Continuous & Intermittent Stimulation Mode

Technology
NMES Neuromuscular Electrical Stimulation

Accuracy
High Precision / Model Specific mg

Voltage
220 240 V AC, 50 Hz Statampere (sA)

Color
White & Blue

Operating Type
Electric / Digital

Wall Mounted
no

Shape
Rectangular-Compact Ergonomic Design

Storage Instructions
Store in a cool, dry and well-ventilated place. Keep away from direct sunlight, moisture, excessive heat, dust and corrosive substances

Set Contains
KM250 Main Unit, Self-Adhesive Therapy Electrodes, Electrode Lead Wires, Power Adapter/Cable, and User Manual

Portable
yes

Feature
Advanced NMES Technology, Adjustable Stimulation Intensity, Multiple Therapy Modes, Digital Display, Adjustable Treatment Timer, Self-Adhesive Electrode Support, Real-Time Therapy Monitoring, Compact Portable Design, Low-Noise Operation, and User-Friendly Controls

Attributes
Portable, Compact, Digital, Lightweight, User-Friendly, Adjustable Stimulation Intensity, NMES Technology, Multiple Therapy Modes, Low-Noise Operation, Surface Electrode Support, Professional Clinical Use, and Swallowing Rehabilitation Support

Use
Professional Rehabilitation

Dimension (L*W*H)
30, 25, 10 cm Centimeter (cm)

Application
Swallowing / Dysphagia Rehabilitation

Recyclable
No

Recommended For
Shoulder, Joints, Cervical, Back, Muscles, Nerves

Treatment
Dysphagia Rehabilitation, Swallowing Function Training, Neuromuscular Electrical Stimulation (NMES), Swallowing Muscle Re-education, and Post-Stroke Swallowing Rehabilitation

Measuring Range
Not Applicable Rankine

Pressure Range
Not Applicable

Frequency Range
Adjustable Model Specific Hertz (HZ)

Usage
Dysphagia Therapy, Swallowing Rehabilitation, NMES Therapy, Post-Stroke Rehabilitation, and Neuromuscular Re-education

Age Group
Children, Adults, Women, Elders, Infants

Display
Touch Screen

Power Source
Electric

Weight
3 kg Kilograms (kg)

Electrical Muscle Stimulation Machine for Dysphagia Rehabilitation Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Delhi

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Supply Ability
1 Piece Per Day

Delivery Time
1 Week

Sample Available
Yes

Sample Policy
Free samples are available

Packaging Details
as per communication

Main Export Market(s)
South America, Asia, Australia, Central America, North America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
as per communication customer

About Electrical Muscle Stimulation Machine for Dysphagia Rehabilitation

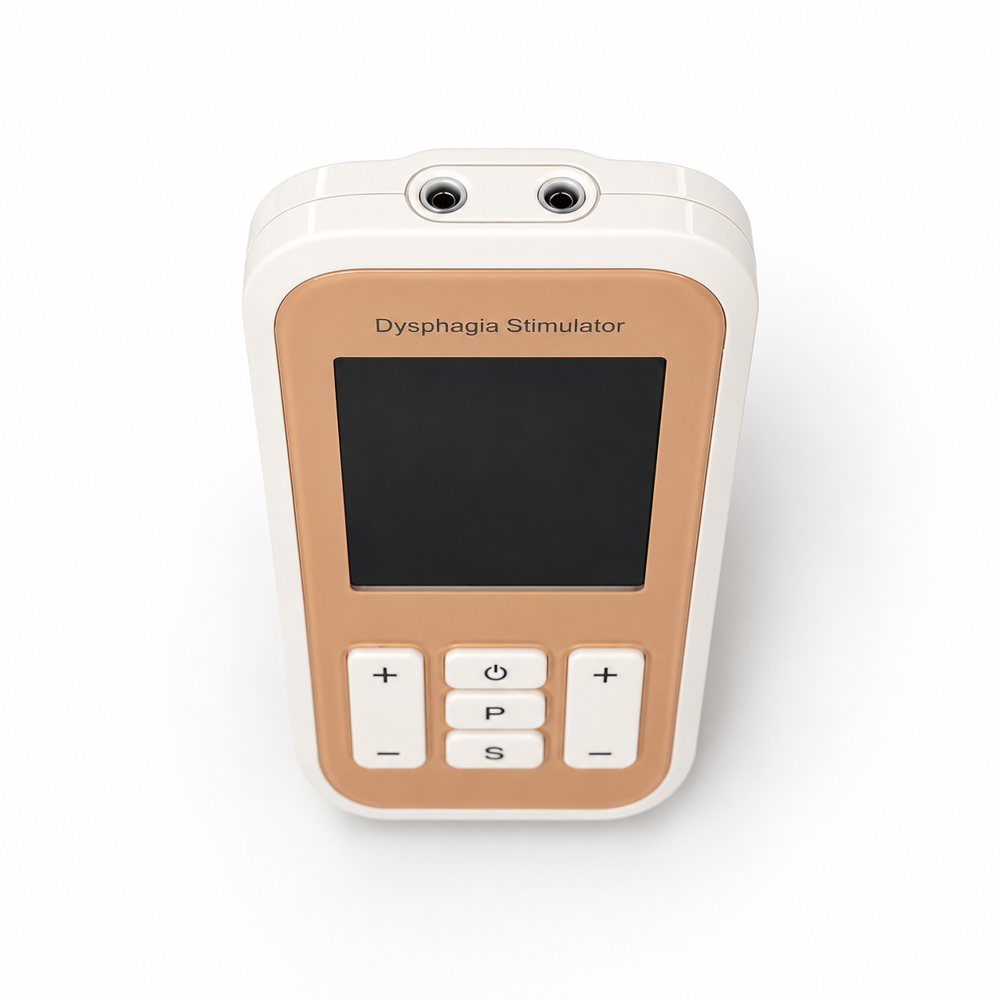

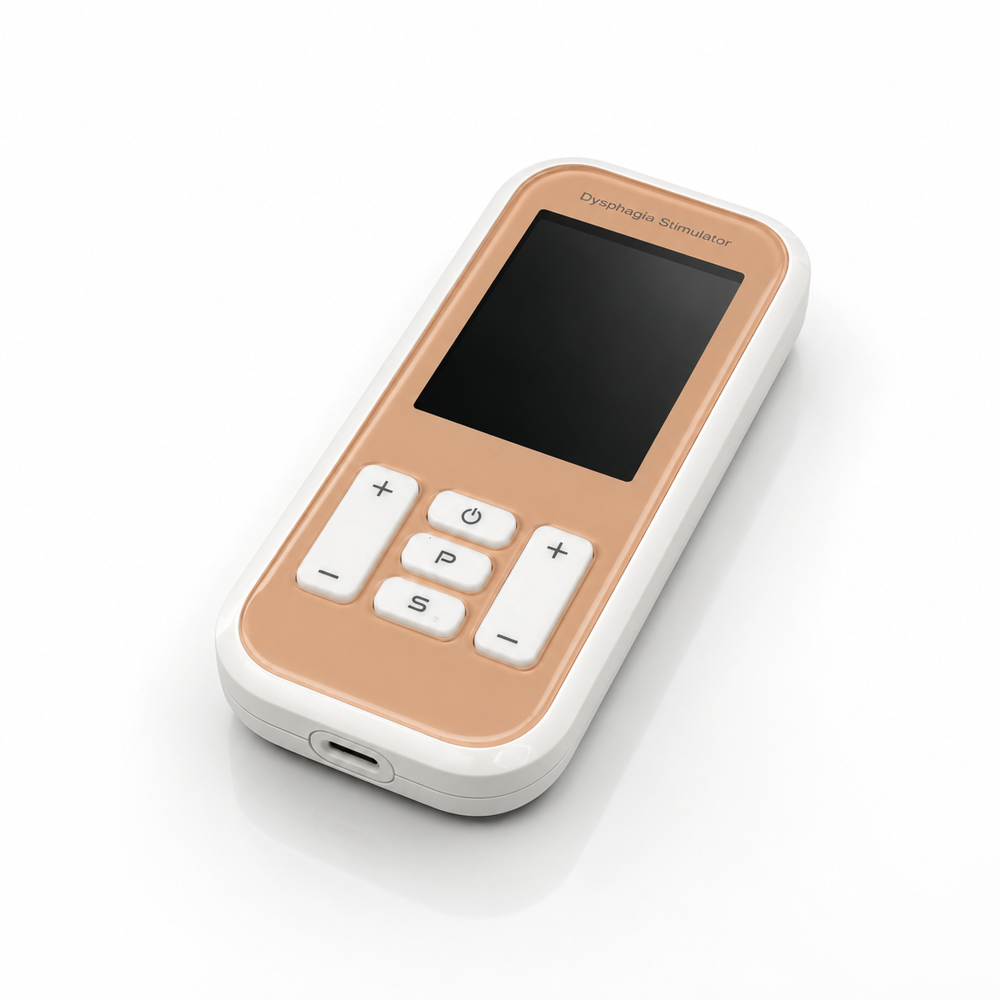

Biotronix Electrical Muscle Stimulation Machine for Dysphagia Rehabilitation KM-250

The KM-250 Electrical Muscle Stimulation Machine is a dual-channel electrotherapy device designed to support swallowing rehabilitation and muscle re-education in patients experiencing dysphagia (swallowing difficulties). It delivers controlled electrical stimulation to targeted muscles involved in pharyngeal contraction as part of a professionally supervised rehabilitation program. The device features two operating modes: Fixed STIM, with three preset programs, and Custom STIM, with six customizable programs. Healthcare professionals can adjust stimulation intensity, frequency, pulse duration, work time, rest time, and ramp settings according to the prescribed therapy protocol. Equipped with two independent stimulation channels, a digital display, user-friendly keypad controls, and dedicated swallowing electrode pads, the KM-250 offers flexible treatment settings for clinical use. Its compact design and built-in rechargeable lithium battery make it suitable for physiotherapy clinics, rehabilitation centers, and speech and swallowing therapy departments.

Key Features

Dual-Channel Stimulation: Two independent channels for targeted electrical stimulation.
Multiple Therapy Programs: Three preset Fixed STIM programs and six customizable programs.
Adjustable Intensity: Separate intensity controls for both channels.
Customizable Treatment Parameters: Adjustable frequency, pulse duration, work time, rest time, and ramp settings.
Digital Display: Convenient viewing of treatment settings and stimulation intensity.
User-Friendly Controls: Keypad operation for selecting programs and adjusting parameters.
Dedicated Swallowing Electrode Pads: Designed for use with the KM-250.
Rechargeable Battery: Built-in 3.7V, 900mAh rechargeable lithium battery.
Portable Design: Compact and lightweight construction for clinical rehabilitation settings.

Applications

Swallowing rehabilitation for appropriately assessed patients with dysphagia.
Electrical stimulation of muscles involved in pharyngeal contraction.
Muscle re-education as part of swallowing therapy.
Professionally supervised swallowing rehabilitation programs.
Use in physiotherapy clinics and rehabilitation centers.
Speech and swallowing therapy departments.

Benefits

Supports Muscle Re-Education: Provides electrical stimulation to targeted muscles involved in swallowing.
Flexible Treatment Options: Preset and customizable programs support different clinical therapy protocols.
Targeted Stimulation: Dual-channel operation allows stimulation at selected treatment sites.
Individualized Treatment Settings: Adjustable parameters support therapy planning by qualified professionals.
Convenient Operation: Digital display and keypad controls simplify program selection and adjustments.
Portable and Lightweight: Compact construction supports convenient clinical use.
Rehabilitation Support: Can be incorporated into a comprehensive swallowing therapy program following appropriate patient assessment.

Technical Specifications

Specification	Details
Product Name	Electrical Muscle Stimulation Machine
Model	KM-250
Device Type	Dual-Channel Electrotherapy System
Number of Channels	2
Fixed STIM Programs	3 preset programs
Custom STIM Programs	6 customizable programs
Waveform	Pulsed symmetric, biphasic, square wave
Maximum Output Voltage	40 V at 500 (10%)
Maximum Output Current	80 mA at 500 (10%)
Pulse Duration	60300 s
Frequency Range	180 Hz
Timer Range	199 minutes
Battery	3.7 V, 900 mAh rechargeable lithium battery
Charging Specification	DC 5 V, 0.5 A
Dimensions	135 64 15 mm
Weight	Approximately 70 g, including battery
Display	Digital display screen
Safety Classification	BF type

Specifications are based on the supplied KM-250 user manual.

Electrical Muscle Stimulation Machine for Dysphagia Rehabilitation, KM-250 Dysphagia Device, Dysphagia Treatment Machine, Swallowing Rehabilitation Equipment, Electrical Stimulation for Swallowing Therapy, Swallowing Muscle Stimulation Device, Dysphagia Electrotherapy Machine, Muscle Re-Education Equipment, Pharyngeal Muscle Stimulation Device, Dual-Channel Electrical Stimulation Equipment, Swallowing Therapy Machine, Speech and Swallowing Therapy Equipment, Physiotherapy Rehabilitation Equipment, Dysphagia Rehabilitation Equipment in India, KM-250 Swallowing Stimulator, Dysphagia Therapy Device.
