Dysphagia Rehabilitation Equipment for Swallowing Muscle Training

Send Inquiry

Request To Call Back

Dysphagia Rehabilitation Equipment for Swallowing Muscle Training

Price 55000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Dysphagia Rehabilitation Equipment for Swallowing Muscle Training Specification

Material
KM250 NMES Dysphagia Stimulator

Wall Mounted
no

Lighting Type
LED Backlit Digital Display

Feature
Advanced NMES Technology, Adjustable Stimulation Intensity, Multiple Therapy Modes, Digital Display, Adjustable Treatment Timer, Self-Adhesive Electrode Support, Real-Time Therapy Monitoring, Compact Portable Design, Low-Noise Operation, and User-Friendly Controls

Use
Professional Rehabilitation

Accuracy
High Precision / Model Specific mg

Storage Instructions
Store in a cool, dry and well-ventilated place. Keep away from direct sunlight, moisture, excessive heat, dust and corrosive substances

Voltage
220 240 V AC, 50 Hz Statampere (sA)

Capacity
Single Patient Treatment per Session Kg

Size
30, 25, 10 cm

Real-Time Operation
Yes Real-Time Therapy Monitoring & NMES Stimulation Week

Condition
new and unused

Power
50 W Volt (v)

Technology
NMES Neuromuscular Electrical Stimulation

Magnification Power
Not Applicable mm

Attributes
Portable, Compact, Digital, Lightweight, User-Friendly, Adjustable Stimulation Intensity, NMES Technology, Multiple Therapy Modes, Low-Noise Operation, Surface Electrode Support, Professional Clinical Use, and Swallowing Rehabilitation Support

Power Consumption
50 W Watt (W)

Portable
yes

Noise Level
50 dB db

Set Contains
KM250 Main Unit, Self-Adhesive Therapy Electrodes, Electrode Lead Wires, Power Adapter/Cable, and User Manual

Function
NMES Stimulation, Dysphagia Rehabilitation, Swallowing Muscle Training, Neuromuscular Re-education, Swallowing Function Training, and Post-Stroke Swallowing Rehabilitation

Dimension (L*W*H)
30, 25, 10 cm Centimeter (cm)

Shape
Rectangular-Compact Ergonomic Design

Equipment Type
NMES Dysphagia Rehabilitation & Swallowing Therapy Equipment

Color
White & Blue

Suitable For Use
Hospitals, Physiotherapy Clinics, Neuro Rehabilitation Centers, Speech & Swallowing Therapy Centers, and Rehabilitation Clinics

Operation Mode
NMES Stimulation Mode / Continuous & Intermittent Stimulation Mode

Adhesive Type
Medical-Grade Self-Adhesive Electrode Pads

Operating Type
Electric / Digital

Warranty
1 year

Application
Swallowing / Dysphagia Rehabilitation

Recyclable
No

Recommended For
Back, Muscles, Shoulder, Joints, Cervical, Nerves

Treatment
Dysphagia Rehabilitation, Swallowing Function Training, Neuromuscular Electrical Stimulation (NMES), Swallowing Muscle Re-education, and Post-Stroke Swallowing Rehabilitation

Measuring Range
Not Applicable Rankine

Pressure Range
Not Applicable

Frequency Range
Adjustable Model Specific Hertz (HZ)

Usage
Dysphagia Therapy, Swallowing Rehabilitation, NMES Therapy, Post-Stroke Rehabilitation, and Neuromuscular Re-education

Age Group
Adults, Children, Women, Elders, Infants

Display
Touch Screen

Power Source
Electric

Weight
3 kg Kilograms (kg)

Dysphagia Rehabilitation Equipment for Swallowing Muscle Training Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Delhi

Payment Terms
Cheque, Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Supply Ability
1 Piece Per Day

Delivery Time
1 Week

Sample Available
Yes

Sample Policy
Free samples are available

Packaging Details
as per communication

Main Export Market(s)
Central America, Asia, Australia, North America, South America, Eastern Europe, Middle East, Western Europe, Africa

Main Domestic Market
All India

Certifications
as per communication customer

About Dysphagia Rehabilitation Equipment for Swallowing Muscle Training

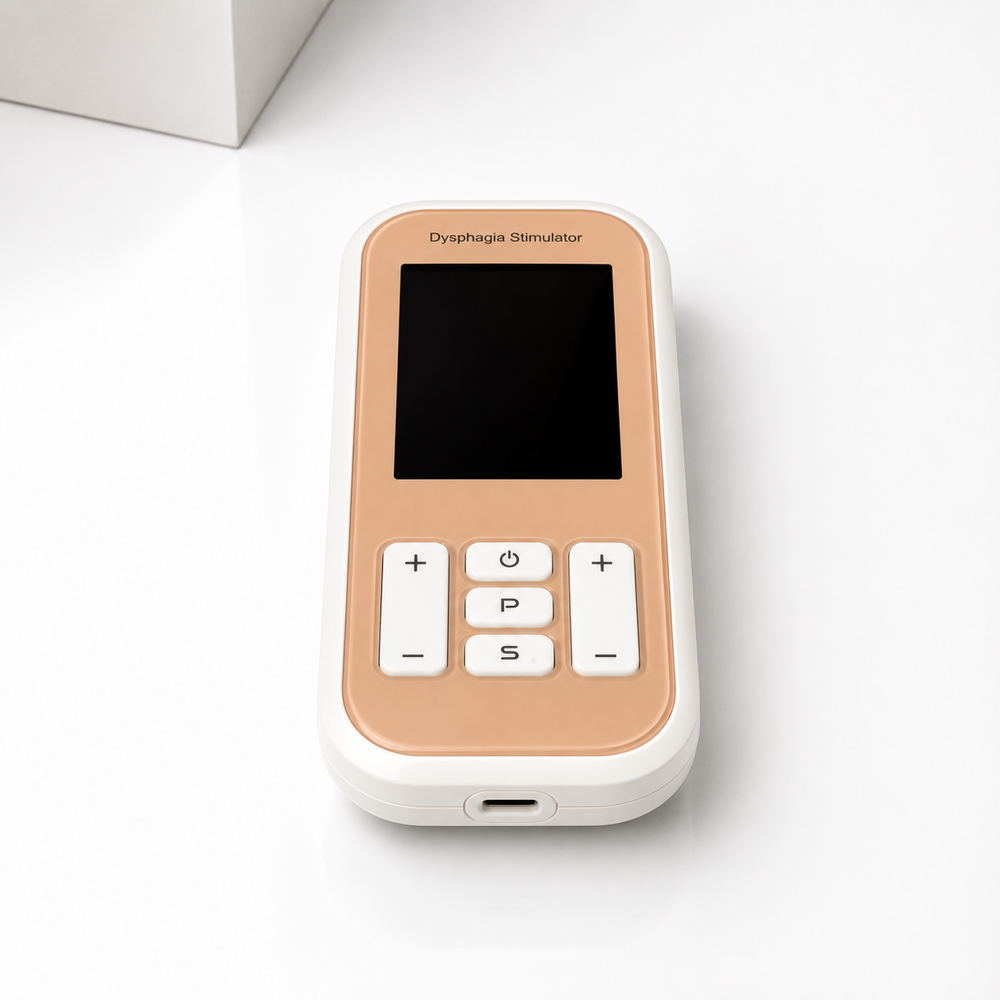

Biotronix Dysphagia Rehabilitation Equipment for Swallowing Muscle TrainingKM-250

The KM-250 Dysphagia Rehabilitation Device is a dual-channel electrotherapy system designed to support swallowing rehabilitation and muscle re-education in patients experiencing dysphagia (swallowing difficulties). It delivers controlled electrical stimulation to targeted muscles involved in pharyngeal contraction as part of a professionally supervised swallowing therapy program.

The device offers two operating modes: Fixed STIM, featuring three preset programs, and Custom STIM, featuring six customizable programs. Healthcare professionals can adjust stimulation intensity, frequency, pulse duration, work time, rest time, and ramp settings according to the prescribed treatment protocol. With two independent stimulation channels, a digital display, user-friendly keypad controls, and dedicated swallowing electrode pads, the KM-250 provides flexible treatment settings for clinical rehabilitation. Its compact design and built-in rechargeable battery make it suitable for physiotherapy clinics, rehabilitation centers, and speech and swallowing therapy departments.

Key Features

Dual-Channel Stimulation: Two independent channels for targeted electrical stimulation.
Multiple Therapy Programs: Three preset Fixed STIM programs and six customizable programs.
Adjustable Intensity: Separate intensity controls for both channels.
Customizable Treatment Parameters: Adjustable frequency, pulse duration, work time, rest time, and ramp settings.
Digital Display: Convenient viewing of treatment settings and stimulation intensity.
User-Friendly Controls: Keypad operation for program selection and parameter adjustment.
Dedicated Swallowing Electrodes: Electrode pads designed for use with the KM-250.
Rechargeable Battery: Built-in 3.7V, 900mAh rechargeable lithium battery.
Portable Design: Compact and lightweight construction for clinical use.

Applications

Swallowing rehabilitation for appropriately assessed patients with dysphagia.
Muscle re-education as part of swallowing therapy.
Electrical stimulation of muscles involved in pharyngeal contraction.
Swallowing muscle training under professional supervision.
Speech and swallowing therapy departments.
Physiotherapy clinics and rehabilitation centers.

Benefits

Supports Muscle Re-Education: Provides electrical stimulation to targeted muscles involved in swallowing.
Flexible Treatment Planning: Preset and customizable programs offer options for different therapy protocols.
Targeted Stimulation: Dual-channel operation supports stimulation at selected treatment sites.
Individualized Therapy Settings: Adjustable parameters help professionals tailor treatment to the patient's rehabilitation plan.
Convenient Operation: Digital display and keypad simplify treatment adjustments.
Portable and Lightweight: Compact construction supports convenient clinical use.
Professional Rehabilitation Support: Can be incorporated into a comprehensive swallowing therapy program following appropriate patient assessment.

Technical Specifications

Specification	Details
Product Name	Dysphagia Rehabilitation Equipment
Model	KM-250
Device Type	Dual-Channel Electrotherapy System
Number of Channels	2
Fixed STIM Programs	3 preset programs
Custom STIM Programs	6 customizable programs
Waveform	Pulsed symmetric, biphasic, square wave
Maximum Output Voltage	40V at 500 (10%)
Maximum Output Current	80 mA at 500 (10%)
Pulse Duration	60300 s
Frequency Range	180 Hz
Timer Range	199 minutes
Battery	3.7V, 900mAh rechargeable lithium battery
Charging Specification	DC 5V, 0.5A
Dimensions	135 64 15 mm
Weight	Approximately 70 g, including battery
Display	Digital display screen
Safety Classification	BF type

Specifications are based on the supplied KM-250 user manual.
