Advanced Dysphagia Rehabilitation System for Clinical Therapy

Price 55000.0 INR/ Piece

Get a Price/Quote
MOQ : 1 Piece

Advanced Dysphagia Rehabilitation System for Clinical Therapy Specification

  • Attributes
  • Portable, Compact, Digital, Lightweight, User-Friendly, Adjustable Stimulation Intensity, NMES Technology, Multiple Therapy Modes, Low-Noise Operation, Surface Electrode Support, Professional Clinical Use, and Swallowing Rehabilitation Support
  • Equipment Type
  • NMES Dysphagia Rehabilitation & Swallowing Therapy Equipment
  • Power
  • 50 W Volt (v)
  • Power Consumption
  • 50 W Watt (W)
  • Use
  • Professional Rehabilitation
  • Suitable For Use
  • Hospitals, Physiotherapy Clinics, Neuro Rehabilitation Centers, Speech & Swallowing Therapy Centers, and Rehabilitation Clinics
  • Technology
  • NMES Neuromuscular Electrical Stimulation
  • Real-Time Operation
  • Yes Real-Time Therapy Monitoring & NMES Stimulation Week
  • Application
  • Swallowing / Dysphagia Rehabilitation
  • Shape
  • Rectangular-Compact Ergonomic Design
  • Voltage
  • 220 240 V AC, 50 Hz Statampere (sA)
  • Lighting Type
  • LED Backlit Digital Display
  • Condition
  • new and unused
  • Warranty
  • 1 year
  • Material
  • KM250 NMES Dysphagia Stimulator
  • Function
  • NMES Stimulation, Dysphagia Rehabilitation, Swallowing Muscle Training, Neuromuscular Re-education, Swallowing Function Training, and Post-Stroke Swallowing Rehabilitation
  • Operating Type
  • Electric / Digital
  • Wall Mounted
  • no
  • Storage Instructions
  • Store in a cool, dry and well-ventilated place. Keep away from direct sunlight, moisture, excessive heat, dust and corrosive substances
  • Accuracy
  • High Precision / Model Specific mg
  • Feature
  • Advanced NMES Technology, Adjustable Stimulation Intensity, Multiple Therapy Modes, Digital Display, Adjustable Treatment Timer, Self-Adhesive Electrode Support, Real-Time Therapy Monitoring, Compact Portable Design, Low-Noise Operation, and User-Friendly Controls
  • Color
  • White & Blue
  • Dimension (L*W*H)
  • 30, 25, 10 cm Centimeter (cm)
  • Set Contains
  • KM250 Main Unit, Self-Adhesive Therapy Electrodes, Electrode Lead Wires, Power Adapter/Cable, and User Manual
  • Capacity
  • Single Patient Treatment per Session Kg
  • Portable
  • yes
  • Adhesive Type
  • Medical-Grade Self-Adhesive Electrode Pads
  • Magnification Power
  • Not Applicable mm
  • Size
  • 30, 25, 10 cm
  • Noise Level
  • 50 dB db
  • Operation Mode
  • NMES Stimulation Mode / Continuous & Intermittent Stimulation Mode
  • Recyclable
  • No
  • Recommended For
  • Back, Muscles, Nerves, Shoulder, Joints, Cervical
  • Treatment
  • Dysphagia Rehabilitation, Swallowing Function Training, Neuromuscular Electrical Stimulation (NMES), Swallowing Muscle Re-education, and Post-Stroke Swallowing Rehabilitation
  • Measuring Range
  • Not Applicable Rankine
  • Pressure Range
  • Not Applicable
  • Frequency Range
  • Adjustable Model Specific Hertz (HZ)
  • Usage
  • Dysphagia Therapy, Swallowing Rehabilitation, NMES Therapy, Post-Stroke Rehabilitation, and Neuromuscular Re-education
  • Age Group
  • Infants, Children, Adults, Women, Elders
  • Display
  • Touch Screen
  • Power Source
  • Electric
  • Weight
  • 3 kg Kilograms (kg)


Advanced Dysphagia Rehabilitation System for Clinical Therapy Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • FOB Port
  • Delhi
  • Payment Terms
  • Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Paypal, Cash Against Delivery (CAD), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit (L/C), Cash on Delivery (COD), Cash Advance (CA)
  • Supply Ability
  • 1 Piece Per Day
  • Delivery Time
  • 1 Week
  • Sample Available
  • Yes
  • Sample Policy
  • Free samples are available
  • Packaging Details
  • as per communication
  • Main Export Market(s)
  • Asia, Australia, Central America, Western Europe, Middle East, Africa, North America, South America, Eastern Europe
  • Main Domestic Market
  • All India
  • Certifications
  • as per communication customer


About Advanced Dysphagia Rehabilitation System for Clinical Therapy

Biotronix Advanced Dysphagia Rehabilitation System for Clinical Therapy KM-250

The KM-250 Advanced Dysphagia Rehabilitation System is a dual-channel electrotherapy device designed to support swallowing rehabilitation and muscle re-education in patients experiencing dysphagia. It delivers controlled electrical stimulation to targeted muscles involved in pharyngeal contraction as part of a professionally supervised clinical therapy program. The device features Fixed STIM and Custom STIM modes, offering three preset programs and six customizable programs to accommodate different treatment protocols. Healthcare professionals can adjust stimulation intensity, frequency, pulse duration, work time, rest time, and ramp settings according to individual patient requirements. Its two independent stimulation channels provide flexibility for targeted stimulation, while the digital display and user-friendly keypad allow convenient adjustment of treatment parameters. Equipped with dedicated swallowing electrode pads and a built-in rechargeable lithium battery, the KM-250 offers a compact and lightweight solution for physiotherapy clinics, speech and swallowing therapy departments, and rehabilitation centers.

Key Features

  • Dual-Channel Electrical Stimulation: Two independent channels for targeted muscle stimulation.

  • Multiple Therapy Programs: Three preset Fixed STIM programs and six customizable programs.

  • Adjustable Stimulation Intensity: Separate intensity controls for both channels.

  • Flexible Treatment Parameters: Adjustable frequency, pulse duration, work time, rest time, and ramp settings.

  • Digital Display: Convenient viewing of treatment settings and stimulation intensity.

  • User-Friendly Operation: Keypad controls for selecting programs and adjusting parameters.

  • Dedicated Swallowing Electrodes: Electrode pads designed for use with the KM-250.

  • Rechargeable Battery: Built-in 3.7V, 900mAh lithium battery.

  • Compact and Lightweight Design: Suitable for professional clinical rehabilitation environments.

Applications

  • Swallowing rehabilitation for appropriately assessed patients with dysphagia.

  • Electrical stimulation of muscles involved in pharyngeal contraction.

  • Muscle re-education as part of swallowing therapy.

  • Clinical swallowing rehabilitation programs.

  • Use in physiotherapy clinics and rehabilitation centers.

  • Speech and swallowing therapy departments.

Benefits

  • Supports Muscle Re-Education: Provides electrical stimulation to targeted muscles involved in swallowing.

  • Flexible Treatment Planning: Preset and customizable programs offer options for different therapy protocols.

  • Targeted Stimulation: Dual-channel output supports stimulation at selected treatment sites.

  • Individualized Therapy Settings: Adjustable parameters allow professionals to tailor settings to the prescribed treatment plan.

  • Convenient Clinical Operation: Digital display and keypad simplify treatment adjustments.

  • Portable Construction: Lightweight design and rechargeable power support convenient use in clinical settings.

  • Professional Rehabilitation Support: Can be incorporated into a comprehensive swallowing therapy program under qualified healthcare supervision.

Technical Specifications

Specification Details
Product Name Advanced Dysphagia Rehabilitation System
Model KM-250
Device Type Dual-Channel Electrotherapy System
Number of Channels 2
Fixed STIM Programs 3 preset programs
Custom STIM Programs 6 customizable programs
Waveform Pulsed symmetric, biphasic, square wave
Maximum Output Voltage 40V at 500 (10%)
Maximum Output Current 80 mA at 500 (10%)
Pulse Duration 60300 s
Frequency Range 180 Hz
Timer Range 199 minutes
Battery 3.7V, 900mAh rechargeable lithium battery
Charging Specification DC 5V, 0.5A
Dimensions 135 64 15 mm
Weight Approximately 70 g, including battery
Display Digital display screen
Safety Classification BF type

Technical specifications are based on the supplied KM-250 user manual.


Advanced Dysphagia Rehabilitation System, KM-250 Dysphagia Therapy Device, Clinical Dysphagia Treatment Equipment, Dysphagia Rehabilitation Machine, Swallowing Rehabilitation System, Swallowing Therapy Equipment, Dysphagia Electrotherapy Device, Electrical Stimulation for Swallowing Therapy, Swallowing Muscle Rehabilitation Equipment, Pharyngeal Muscle Stimulation Device, Dual Channel Electrotherapy Equipment, Speech and Swallowing Therapy Equipment, Clinical Rehabilitation Equipment, Dysphagia Treatment Machine in India, Physiotherapy Equipment Supplier India, Dysphagia Rehabilitation System.

Advanced Dysphagia Rehabilitation System for Clinical Therapy
Advanced Dysphagia Rehabilitation System for Clinical Therapy
Advanced Dysphagia Rehabilitation System for Clinical Therapy
Advanced Dysphagia Rehabilitation System for Clinical Therapy
Advanced Dysphagia Rehabilitation System for Clinical Therapy
Advanced Dysphagia Rehabilitation System for Clinical Therapy
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Physiotherapy Equipment Category

SYREBO C12 Robotic Hand Therapy & Recovery System

SYREBO C12 Robotic Hand Therapy & Recovery System

Price 450000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Pressure Range : Intelligent Adjustable Pneumatic Assistance

Material : Medical Grade ABS Plastic & Soft Fabric Glove

Noise Level : Low Noise Operation db

Size : 38, 28, 18 cm

Get a Price/Quote
Pulse Electromagnetic Loop Therapy Device for Orthopedic Pain Relief

Pulse Electromagnetic Loop Therapy Device for Orthopedic Pain Relief

Price 275000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Pressure Range : PEMF Physiotherapy Machine

Material : Electromagnetic Therapy Machine

Noise Level : Pulse Electromagnetic Therapy Equipment db

Size : PEMF Therapy Healthcare Equipment

Get a Price/Quote
Konmed KM-560 4 Channel EMG Biofeedback System for Therapys

Konmed KM-560 4 Channel EMG Biofeedback System for Therapys

Price 200000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Pressure Range : Not Applicable

Material : EMG Biofeedback Training & Interactive Gaming

Noise Level : Digital EMG Biofeedback System db

Size : 25

Get a Price/Quote

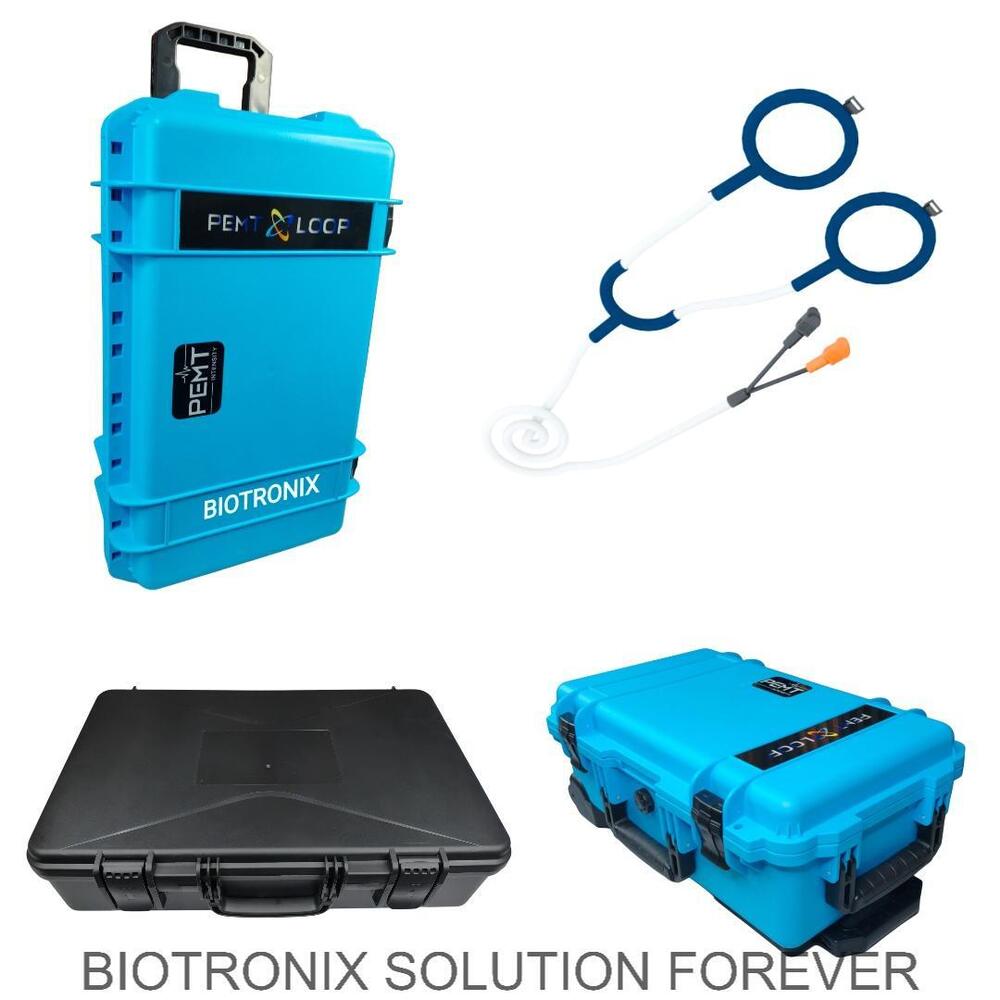

Pulse Electromagnetic Loop Therapy Device with Multiple Frequency Modes
